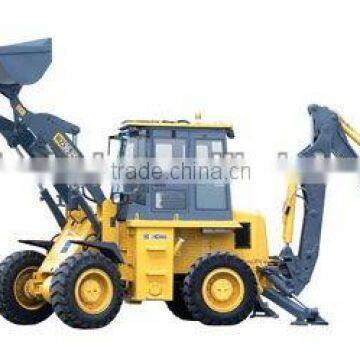

small backhoes loader for sale
- 300 Set / Sets per Month
- Shanghai or Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Brand Name | XCMG | |
| Model Number | WZ30-25 | Place of Origin | Jiangsu, China | |
| Type | Backhoe Loader | Moving Type | Other, Backhoe Loader | |
| Dimension(Long * Breadth * High) | 5900X 2200 X 3769(mm) | Rated Load | 2500kg |
Product Description
Specifications
small backhoes loader for sale1.rated loading:2.5 ton
2.small bachoe loader
3.1m3 bucket capacity
4.engine optional
Product Specification:
small backhoes loader for sale
| Overall Dimension | |
Length X Width X Height | 5900X 2200 X 3769(mm) |
Cab roof height | 2900(mm) |
Wheel base | 2250(mm) |
Track | 1640(mm) |
Min. ground clearance | 300(mm) |
| Main Technical Specification | |
1 system pressure | |
load hydraulic system | 18Mpa |
dig hydraulic system | 20Mpa |
steering hydraulic system | 12Mpa |
2 system flow | 120L /min |
3 four-wheel drive, whole hydraulic system |
|
4 total operating weight | 7600kg |
5 maximum speed | 22Km/h |
6 maximum gradient capacity | 30 ° |
1 loading bucket capacity | 1m3 |
2 rated loading | 2500KG |
3 maximum articulated height of bucket | 3400(mm) |
4 bucket discharge height | 2795(mm) |
5 bucket discharge distance | 1048(mm) |
6 loading lift capacity | 25KN |
7 bucket hydraulic translation function | yes |
8 bucket lift time | 6.8s |
9 bucket lower time | 2.5s |
10 bucket discharge time | 1.2s |
11 maximum tractive force | 39KN |
12 maximum breakout force | 38KN |
1 back acter bucket capacity | 0.3m3 |
2 backacter discharge height | 3878(mm) |
3 maximum digging depth | 4080(mm) |
4 maximum digging radius | 5688(mm) |
5 bucket slewing angle | 190 ° |
6 bucket digging capacity | 46KN |
7 bucket stick digging capacity | 31KN |
