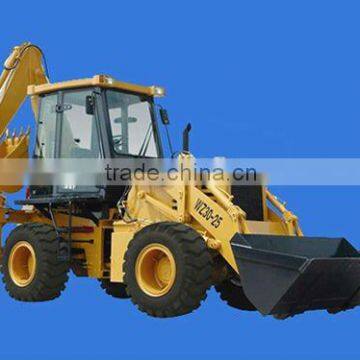

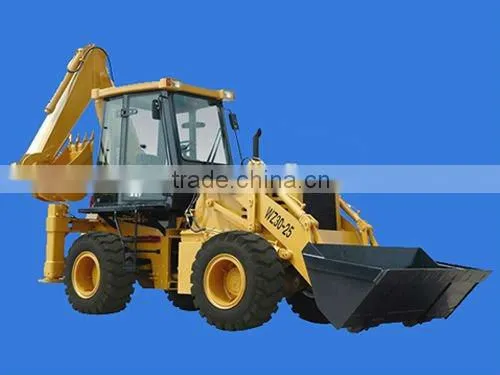

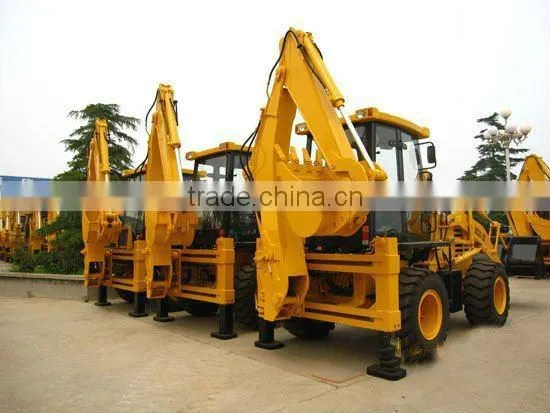

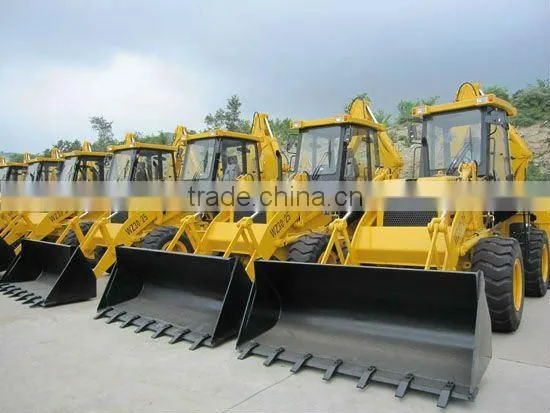

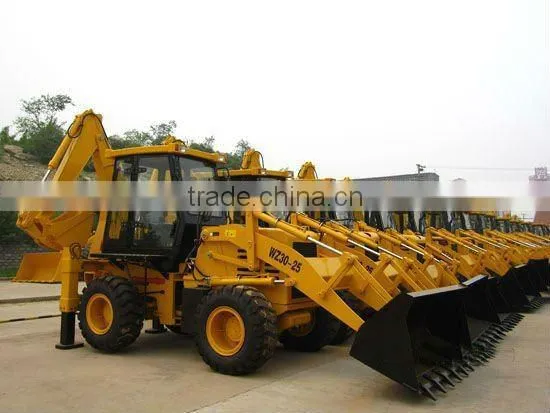

XCMG Small Compact Backhoe Loader for Sale With 1.2m3 (WZ30-25)

Name: XCMG Small Compact Backhoe Loader for Sale With 1.2m3 (WZ30-25)
Brand: XCMG
SKU: 102148583

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

XCMG

Model Number:

WZ30-25

Shandong Sea Project Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name XCMG

Model Number WZ30-25

Place of Origin Jiangsu, China

Type Backhoe Loader

Moving Type Other, Backhoe Loader

Dimension(Long * Breadth * High) 5900X 2200 X 3769(mm)

Rated Load 2500kg

Specifications

small backhoes loader for sale
1.rated loading:2.5 ton
2.small bachoe loader
3.1m3 bucket capacity
4.engine optional

Product Specification:

XCMG Small Compact Backhoe Loader for sale with 1.2m3 (WZ30-25)

Main Technical Specification
1 system pressure
load hydraulic system	18Mpa
dig hydraulic system	20Mpa
steering hydraulic system	12Mpa
2 system flow	120L /min
3 four-wheel drive, whole hydraulic system
4 total operating weight	7600kg
5 maximum speed	22Km/h
6 maximum gradient capacity	30 °

1 loading bucket capacity	1m3
2 rated loading	2500KG
3 maximum articulated height of bucket	3400(mm)
4 bucket discharge height	2795(mm)
5 bucket discharge distance	1048(mm)
6 loading lift capacity	25KN
7 bucket hydraulic translation function	yes
8 bucket lift time	6.8s
9 bucket lower time	2.5s
10 bucket discharge time	1.2s
11 maximum tractive force	39KN
12 maximum breakout force	38KN

1 back acter bucket capacity	0.3m3
2 backacter discharge height	3878(mm)
3 maximum digging depth	4080(mm)
4 maximum digging radius	5688(mm)
5 bucket slewing angle	190 °
6 bucket digging capacity	46KN
7 bucket stick digging capacity	31KN
