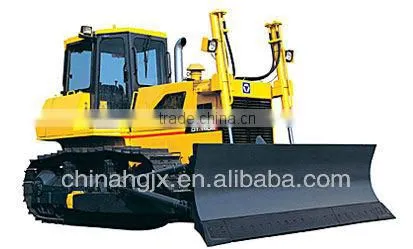

XCMG TY230 28.4T Bulldozer

XCMG TY230 28.4T Bulldozer thumbnail-1
XCMG TY230 28.4T Bulldozer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XCMG
Model Number:
TY230
Contact Supplier Request Quote Chat Now
Shandong Sea Project Machinery Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name XCMG
Model Number TY230
Condition New
Moving Type Crawler Bulldozer
Machine Weight 28460kg
Dimension(Long * Breadth * High) 6790*3725*3472mm

Specifications

Strong Power Reliable Performance
Hydraulic Mechanical Drive
Adjustable Seat Good Cabin View
Multi-Blade compatible

Operating weight

Bare machine 19950kg
With straight tilt blade 25740kg
With straight tilt blade,scarifier 28460kg
Travel speed Gear 1/2/3
Forward 0-3.8/0-6.8/0-11.3(kw/h)
Reverse 0-4.9/0-8.2/0-13.6(km/h)
Max.traction 221kN
Ground contact length 2840mm
Ground pressure 0.076MPa
Min.ground clearance 405mm
Min.turning radius 3.3m
Track center distance 2000mm
Single (straight tilt)blade capacity 7.8m3
Productivity (haul distance 30m)  505m3/h
Max.gradeability 30°
Rated engine power/speed 169kw(230hp/2,000rpm)
Dimension(L×W×H) 5,459×3,725×3,380mm (incl.straight tilt blade)
6,790×3,725×3,472mm (incl.straight tilt blade,3-grouser scarifier and ROPS)
Engine
Model Cummins NT855-C280S100
Type Inline, water-cooled, 4-stroke, direct injection, turbocharging
Cylinder quty.- bore×stroke 6-139.7mm×152.4mm
Piston displacement 14.01L
Min. oil consumption 231g//kW.h
Rated power 169kW±5%
Rated speed 2000r/min
Max.output torque 1033N.m/1400r/min
Torque reserve factor 1.25
Charging generator silicon rectification generator,24V,35A
Start mode Start motor, 24V, 11KW
Battery (12V-195Ah)×2



Hydraulic torque converter 3 components, single-stage, single phase
Transmission Planetary gear, multi-disc clutch, hydraulic integrated forced lubrication
Main drive Spiral bevel gear, first-stage speed reduction, splash lubrication
Steering clutch Wet, multi-disc, spring-pressed, hydraulic release
Steering brake Wet, float, direct clutch, hydraulic boost
Final drive 2-stage spur gear reduction, splash lubrication
Travel System
Type Sprayed beam swing type, equalizing beam suspension structure
Track Single grouser combined
Grouser height 72mm
Amt.of track shoe 39×2
Track shoe width 560mm,610mm,660m
Ground contact length of track 2840mm
Pitch 216mm
Amt.of carrier wheel 2/each side 2
Amt.of supporting wheel  7/each side 7
Working hydraulic system
Working oil pump PAL.160 gear pump
Cylinder Double acting piston type
ing oil pressure 13.7Mpa
Blade hoisting cylinder bore×quty. 120mm×2
Tilting cylinder inner bore×quty. 200mm×1
Soil loosening cylinder inner bore×quty. 150mm×4(1-grouser)
150mm×2(3-grouser)
Control valve Spool
Operating system
Speed regulation Manual operation, hydraulic power shifting
Steering & brake Hydraulic boosting
Throttle control Hand throttle speed up and pedal reduction
Blade control Manual, hydraulic servo follow-up
Scarifier control Manual, hydraulic servo follow-up
Working Devices
Blade type Straight tilt blade Angle blade
Blade size(W×H) 3,725×1,390mm 4365×985mm
Max.lifting height 1210mm 1292mm
Max.tilting range 735mm
Max.cutting depth 540mm 536mm
Cutting angle(°) 55° 55°
Gradeability 30° 30°
Scarifier 3-grouser Single grouser
Max. scarification depth 665mm 695mm
Max.lifting height of scarifier 555mm 515mm
Scarifier weight 2,900kg 3,600kg





•It adopts Cummins NT855-C280S10 turbocharged diesel engine, featuring strong power and superior performance.
•The new hexahedron cab has beautiful appearance, wide view, vibration absorption seal, and comfortableness.
•The electronic monitoring system with sound/light alarm function is very sensitive and the visual monitoring is very convenient.
•The cab seat can automatically adjust the angle and height, and it has the ergonomically designed operation system, which makes it more convenient and easier to operate.
•The independent ROPS device improves operation safety.
•It can be equipped with straight tilt blade, U-shaped blade, angle blade, single/3-tooth scarifier, applicable to various work conditions.
•The drive parts and wear parts made by military technologies feature high strength, good toughness and high wear resistance.
• The travel system adopts sprayed beam swing type, equalizing bar semi-rigid suspension structure, and the ground contact length of the track is also extended, which ensures good buffering effect during high-speed travel. It features smooth travel, comfort operation, and good adhesiveness.









Other Models and spare parts are always available in stock. We commit ourselves to provide our custmers with best quality, best price and best services. We will be at your service 7x24. Please visit our website for more product.

/



Bulldozer showroom:

XCMG TY230 28.4T BulldozerXCMG TY230 28.4T BulldozerXCMG TY230 28.4T BulldozerXCMG TY230 28.4T Bulldozer

Other models and all spare parts are available in stock. We commit ourselves to provide our customer with best quality, best price and best service.
