Specifications
Bags model cutting machine, high technology, high quality, good performance, best solution for digital bags pattern cutting.Ruizhou digital footwear pattern cutting machine is in high technology, high quality and good performance. It could cut paper, cardboard, plastic, rubber, fiber sheet etc. This is surely your first choice for digital pattern cutting.
BENEFITS
1. Reduce your cost
* Reduce labor cost. Take up 1-2 manual pattern cutting workers.
* Minimize cutting materials. Increase production by setting the safe distance between parts.
2. Increase production efficiency
* Works at a speed of 600-900mm/s, our cutting machine could cut a complicated pattern within a minute.
FEATURES
* Application of self-developed built-in digital control system, imported American CPU and precise electronic components reach the technologically leading level at home and abroad in stability and operability.
* Joint use of imported linear tracks and synchronous belt in the machine makes the cutting precision up to the zero error of shuttle origin completely.
* LCD display and digital control interface facilitate operation.
* Standard I/O interface and HP-GL and GP GL formats; cutting speed of 80-120cm/s.
* Exceptional form-feed cutting function from the home-made cutting machine.
* Connectible to random CAD software, it is widely used in such industries as apparel, shoe-making, suitcases, bags and lamps.
TECHNOLOGICAL SPECIFICATION
Available Model |

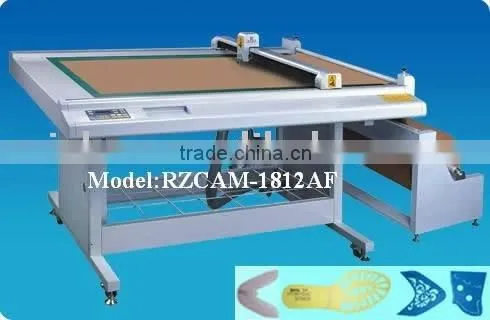

RZCAM-1209AF |
RZCAM-1509AF |
RZCAM-1512AF |
RZCAM-1812AF |
Working Area |
1200*920mm |
1500*920mm |
1500*1200mm |
1800*1200mm |
Cutting Materials |
Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm) |
|||
Working Performance |
Cutting Speed: 900mm/s (Max.) |
|||
Cutting Thickness: 2mm | ||||
Mechanical Resolution: 0.07mm | ||||
Blade and Pen Type |
Blade: wolfram steel; |
|||
Pens: water-based fibertip, oil-based ballpoint, disposable ink pen. | ||||
Mat. hold-down method |
Vacuum Suction |
|||
Software Resolution |
0.025mm 0.01mm 0.1mm optional |
|||
Interface |
Standard parallel port or serial port |
|||
Command System |
HP-GL and GP-GL compatible mode |
|||
Power Consumption |
Machine: 200W AC 220±10%,50HZ |
|||
Vacuum Pump: 1100W AC 220±10%,50HZ | ||||
Feeding Mode |
Auto-feeding |
|||
