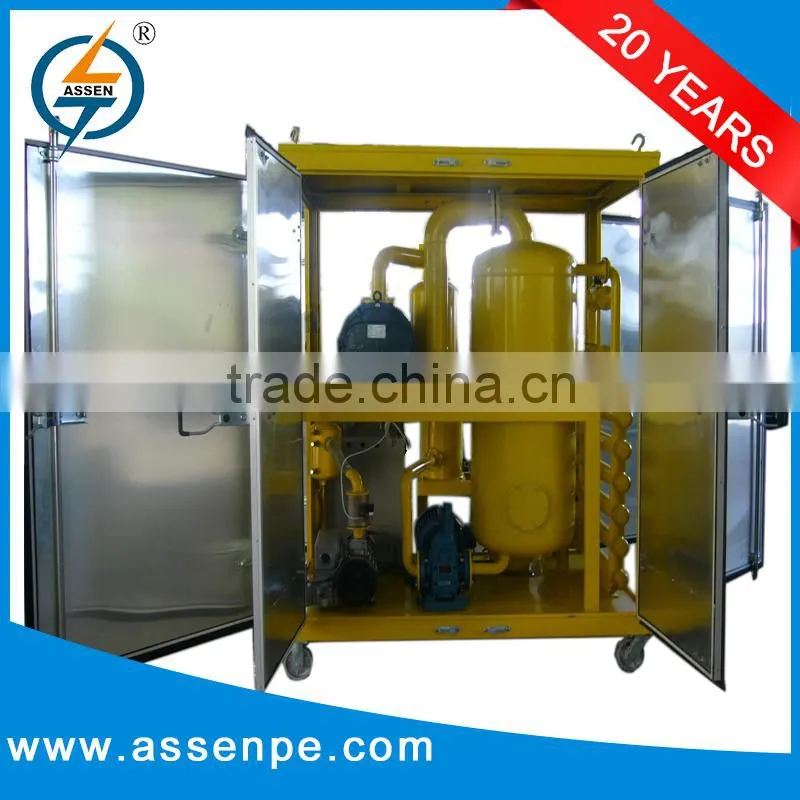

Automatic control type Transformer Oil Purifier/Transformer Oil Dehydration Plant,China Oil Purifier Equipment
Our ZYD Transformer Oil Purifier is the solution to your on site transformer oil maintenance, the filtering of transformers is one of the least expensive, best known ways of preserving the life of the unit.When it comes to transformer oil processing ASSEN have the equipment, experience and skilled personnel to perform oil processing on your power transformers, safely and efficiently. From vacuum filling to hot oil cleaning we can handle the project
The plant can be used to process oil for the initial fill, after maintenance refill or as a process to keep all your oil filled equipment in optimum operating condition.
1. Special absorbent is utilized to remove the dissolved carbon and acid substance which cannot be removed by purification such that the oils ph value, acid value and medium and flash point reach specifications of new oil.
2. Transformer oil of any grades can be treated as energized. It is also especially effective for purifying various deteriorated insulation oil.
3. Purifiers are equipped with an interlocked safety protective device. I. E, backflow of A oil outlet over pressure can be achieved via an overflow valve; B oil inlet will interlock with heating system which avoids any possible negative impacts caused by mal-operation.
4. Advanced infrared liquid level control system which allows an offline operation.
5. Precision oil pumps for designated purpose are used, which have low noise and environmental regulatory compliance is well met.
6. A unique gas/water removal system adopting stereo-evaporation technology which rapidly separates the water and gas content in the oil and the system is free of maintenance.
7. A superior purification system with top quality filter core, which can accommodate large quantity of dirt and is densified progressively step by step. The filter core has got a high precision and multiple-stage filtration.
8. Safe, reliable heating system and optimized piping design ensure that there is no dead angle and oil is completely subjected to purification.
9. Imported superior electric accessory parts.
- Transformer is one of the main asset in the electrical power industry which needs to be maintained for guaranteed uninterrupted power transmission in order to get assured revenue benefits.
- Transformer life mainly depends on the quality of oil volume it contains.
- Transformer oil conditioning may also include to some extent improving the acidity of the oil.
- A good oil purification system is able to deliver filtered oil with parameters as per the standard specification.
Transformer Oil Purifier'sTechnical Data:
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
MPa |
0.08 ~ 0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Breakdown Voltage |
KV |
≥75 |
|||||||
Water Content |
PPM |
≤3 |
|||||||
Gas Content |
% |
≤0.01 |
|||||||
Impurity Size |
μ |
≤5 |
|||||||
Temperature Range |
°C |
20 ~ 80 |
|||||||
Power |
|
Three Phase 50HZ380V(as per the customer's requirements) |
|||||||
Working Noise |
dB(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Structure Chart:
The oil technical data after treatment:
- Gas content less than 0.1%
- Impurity size less than 1μm without free carbon
- Oil dielectric strength (breakdown voltage) more than 75KV
- Acidity value less than 0.01 mgKOH/g
- Dielectric loss factors at 90°C less than 0.001
Transformer Oil Purifier's Advantage:
Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machines working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75 KV. It is very suitable for the large electric & insulation equipments.
- Your inquiry related to our products or prices will be replied in 24 hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
- OEM is available for Anern Products.
- Protection of your sales area, ideas of design and all your private information.
Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
