Home > Industrial Equipment & Components > Filtration Equipment & Parts > Machine Oil Purifier > Brand New Ultra Vacuum Transformer Oil Filtration System Equipment

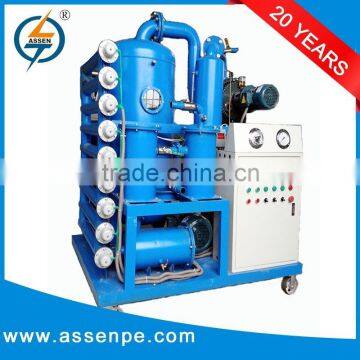

Brand New Ultra Vacuum Transformer Oil Filtration System Equipment

Name: Brand New Ultra Vacuum Transformer Oil Filtration System Equipment
Brand: ASSEN
SKU: 102107099
Availability: InStock

US$ 11,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Flow:

1800LPH

Working Pressure:

0.4MPA

Contact Supplier Request Quote Chat Now

Chongqing Assen Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Flow 1800LPH

Working Pressure 0.4MPA

Place of Origin Chongqing, China

Brand Name ASSEN

Model Number ZYD-30

Usage Transformer Oil

Voltage 400 380 220

Power(W) 35KW

Dimension(L*W*H) 1650*1100*1350MM

Weight 650

Certification ISO, CE

After-sales Service Provided Engineers available to service machinery overseas

brand new ultra vacuum Transformer oil filtration system equipment

Product Application

ASSEN ZYD series ultra vacuum Transformer oil filtration system equipment is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers. Equipped with regenerators, ASSEN transformer oil filtration equipments can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 75KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.

Product Features

1.Operational control can be switch- andrelay-logic or PLC with touchscreenOnline test and monitoring equipment

2.Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

3.Precise filtration system,high-quality filter element,multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.

4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies

5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

7.Adopt interlocked protective system,which connect oil pump,heater and liquid level sensor,avoiding blank heating,blank pumping.

Product Description

Transformer oil filtration:

Series ZYD Transformer oil filtration equipment is suitable for filtering new oil ,imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.

Transformer oil filtration'sTechnical Data:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow		L/min	30	50	100	150	200	250	300
Working vacuum		MPa	0.08 ~ 0.099
Working Pressure		MPa	≤0.3
Breakdown Voltage		KV	≥75
Water Content		PPM	≤3
Gas Content		%	≤0.01
Impurity Size		μ	≤5
Temperature Range		°C	20 ~ 80
Power			Three Phase 50HZ380V(as per the customer's requirements)
Working Noise		dB(A)	75	75	75	80	80	80	80
Heating Power		kW	30	30	45	60	75	90	120
Total Power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900

Structure Chart:

The oil technical data after treatment:

Gas content less than 0.1%
Impurity size less than 1μm without free carbon
Oil dielectric strength (breakdown voltage) more than 75KV
Acidity value less than 0.01 mgKOH/g
Dielectric loss factors at 90°C less than 0.001

Transformer oil filtration's Advantage:

1.The conventional process of transformer oil exchange is time consuming, costly and not environmentally friendly.
2.Our mobile oil purification plants can regenerate the oil on site and in most cases while the transformer is online. This means there will be no production outages for you.
3.It will also be 30 to 60% cheaper to purify the transformer oil compared to exchanging the oil.
4.The process of oil purification not only restores the oil properties, but also cleans the inside of the transformer of all decay products, which would not happen if the oil was merely replaced. .

Packaging & Shipping

Our Services

Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for Anern Products.
Protection of your sales area, ideas of design and all your private information.

Our Customers

FAQ

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
