Ruizhou RZCAM-0906A Paper Pattern Cutting Machine

Ruizhou RZCAM-0906A Paper Pattern Cutting Machine thumbnail-1
Ruizhou RZCAM-0906A Paper Pattern Cutting Machine photo-1
US$ 1 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, paper sample cutting machine
Processing Type:
Cutting Machine
Contact Supplier Request Quote Chat Now
Guangdong Ruizhou Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, paper sample cutting machine
Processing Type Cutting Machine
Place of Origin Guangdong, China
Brand Name RUIZHOU
Model Number RZCAM-0906A
Voltage 220v
Power(W) 1.1kw
Dimension(L*W*H) 1.31*1.00*.096m
Weight 110kg
Certification CE
Warranty within one year

Specifications

Available for cutting paper,pvc sheet pattern of footwear and garment,bags and lamps industries , accurate and high efficiency

COMPANY IMAGE

1.Our company is specialized in development and manufacture of CNC cutting machine

2.We have an experience of over 15 years in this field

3.Our products is widely in the industries like footware,garment,lamp, gasket,shipbuilding,carton,bag,auto,etc

4.Service is the motto of our company

5.We aims at the global market base on Foshan





PRODUCT DECRIPTION

environment protection function,easy to learn and operate,light weight,small volume,with high quality,widely applied in footwear ,garment,lamp ,suitcase for making sample,best choice for you!





WHAT ARE THE BENEFITS?

1. Easy to use

  • Ruizhou tables are easy to install and simple to set-up and use. The table is programmed for use with Ruizhou RECAD software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
2. Saves time and money whilst improving quality
  • Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
  • Greatly reduces the time taken to hand cut sample and graded paper patterns.
  • Consistent accuracy throughout, utilizing the Ruizhou RECAD software, any modifications to the pattern can be re-cut quickly and efficiently.
  • Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.

3. Flexible

  • When used with Ruizhou RECAD software, Ruizhou tables are designed to work in the background, cutting and/or plotting pattern pieces whist you continue to develop other 2D patterns.



USER INTERFACE

Ruizhou RZCAM-0906A paper pattern cutting machine



 WHAT ARE THE FEATURES?

1. Tool Head

  • A dual function tool head incorporating a trailing knife and pen, that is especially suited for cutting pattern paper and up to 2mm cardboard.

Ruizhou RZCAM-0906A paper pattern cutting machine



can do through-cutting,kiss-cutting and dot-cutting accoding to your specific requirments



Ruizhou RZCAM-0906A paper pattern cutting machine

can do writing and marking,various types of pen ,choose them depending on your material



2. Compatibality

  • Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leatherwares.

Ruizhou RZCAM-0906A paper pattern cutting machine

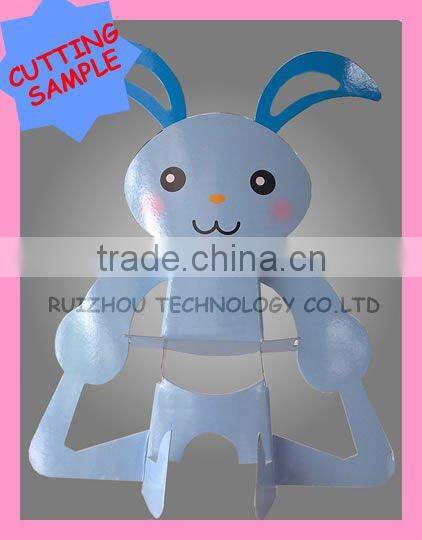

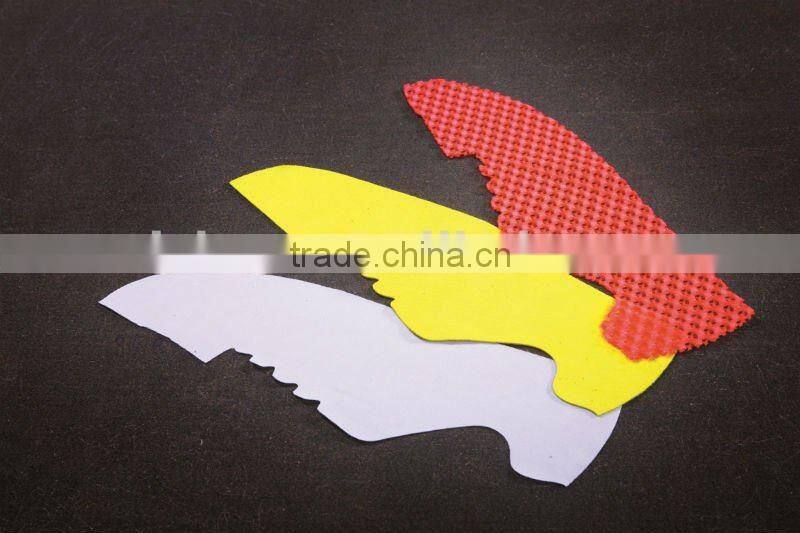

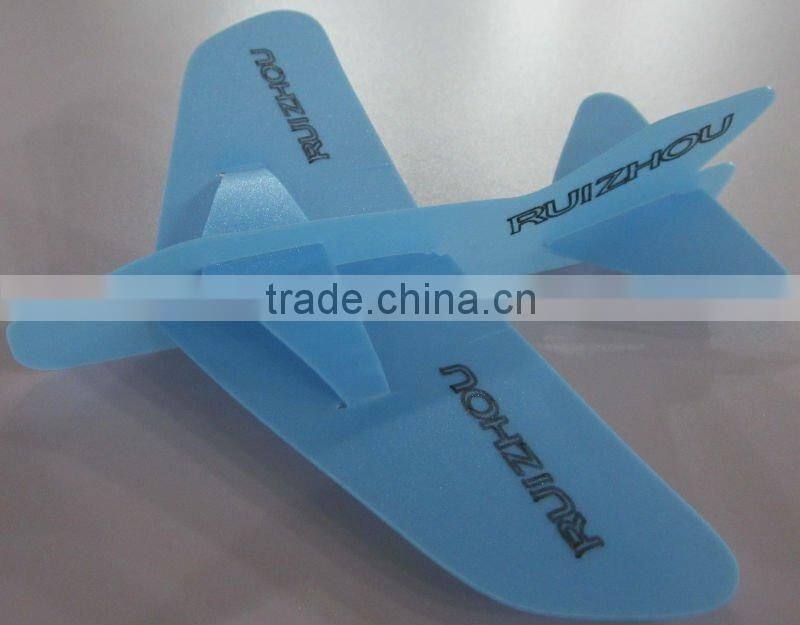

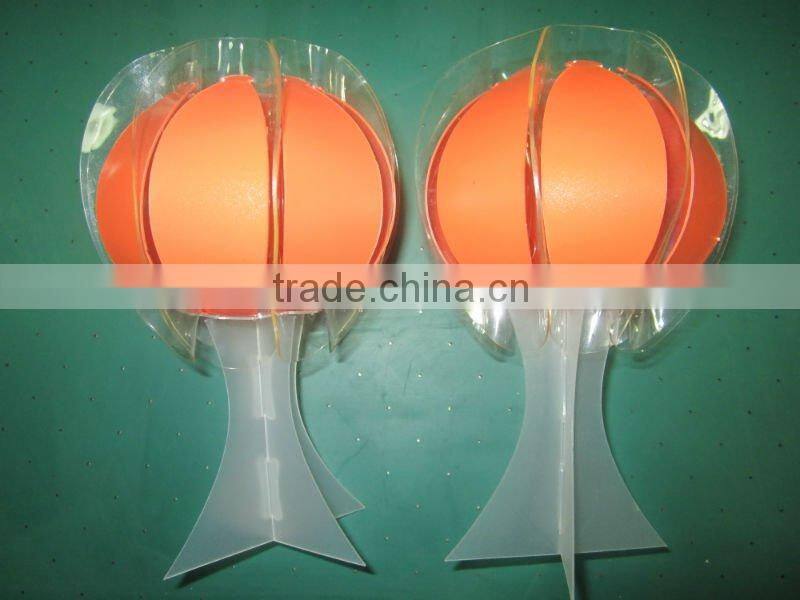

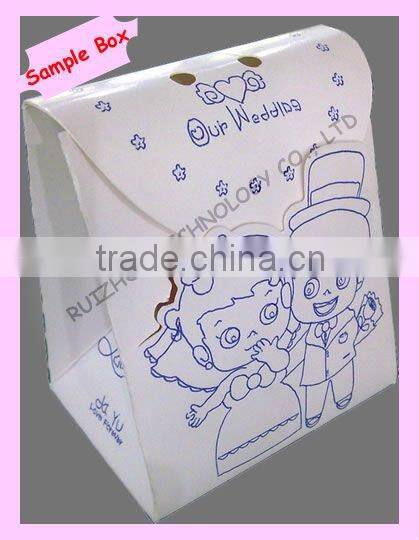

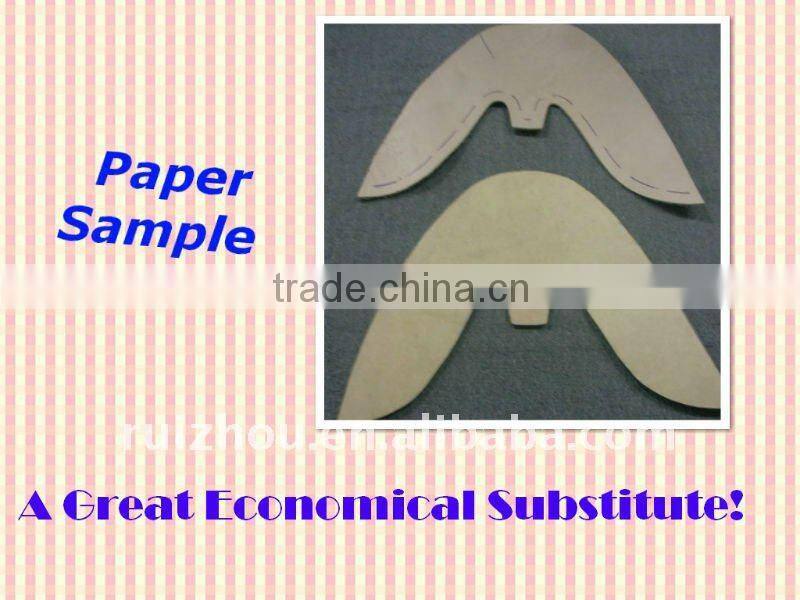

 SAMPLE DISPLAY

Ruizhou RZCAM-0906A paper pattern cutting machine

Ruizhou RZCAM-0906A paper pattern cutting machine Ruizhou RZCAM-0906A paper pattern cutting machine Ruizhou RZCAM-0906A paper pattern cutting machine

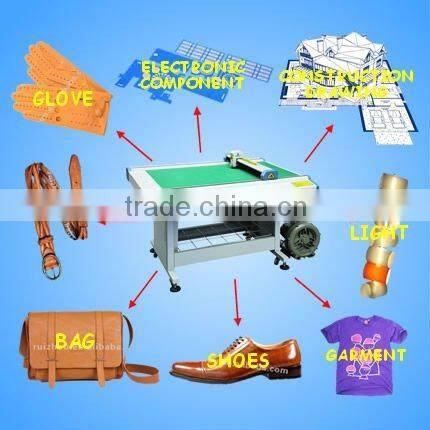

APPLICALE INDUSTRIES

Ruizhou RZCAM-0906A paper pattern cutting machine Ruizhou RZCAM-0906A paper pattern cutting machine
Ruizhou RZCAM-0906A paper pattern cutting machine Ruizhou RZCAM-0906A paper pattern cutting machine



 Ruizhou RZCAM-0906A paper pattern cutting machine



TECHNICAL PARAMETER



Available Model

RZCAM-0906A

RZCAM-1209A

RZCAM-1509A

RZCAM-1512A

RZCAM-1812A

Working Area

910*620mm

1200*920mm

1500*920mm

1500*1200mm

1800*1200mm

Cutting Materials

Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm)

Working Performance

Cutting Speed: 900mm/s (Max.)

Cutting Thickness: 0.5-2mm

Mechanical Resolution: 0.07mm

Blade and Pen Type

Blade: wolfram steel;

Pens: water-based fiber-tip, oil-based ballpoint, disposable ink pen.

Mat. hold-down method

Vacuum Suction

Software Resolution

0.025mm  0.01mm  0.1mm  optional

Interface

Standard parallel port or serial port

Command System

HP-GL and GP-GL compatible mode
Power Consumption

Machine: 200W AC 220±10%,50HZ

Vacuum Pump: 1100W AC 220±10%,50HZ

Feeding Mode

Feeding by hand
