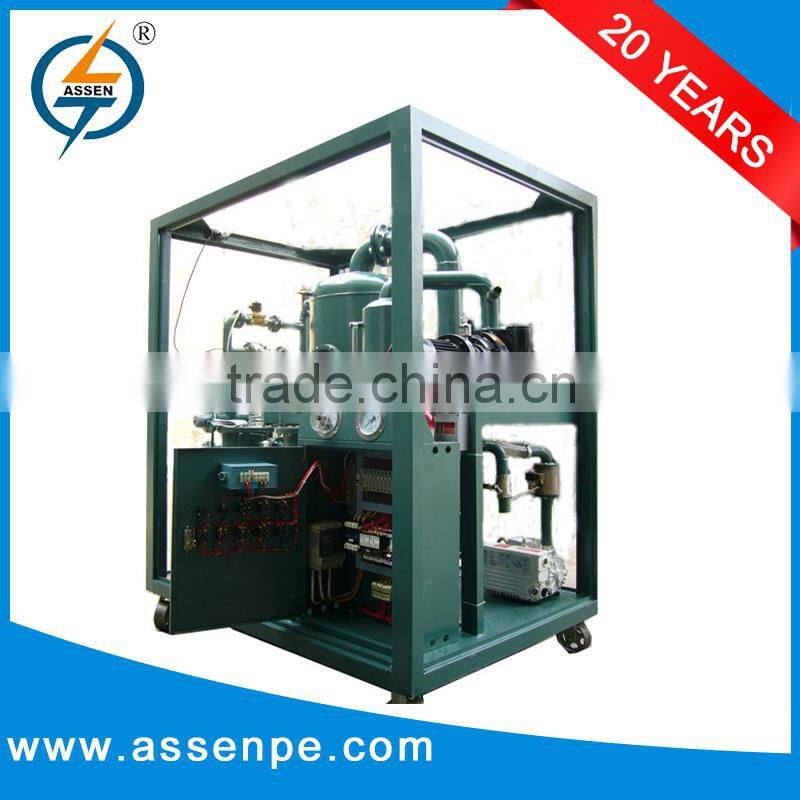

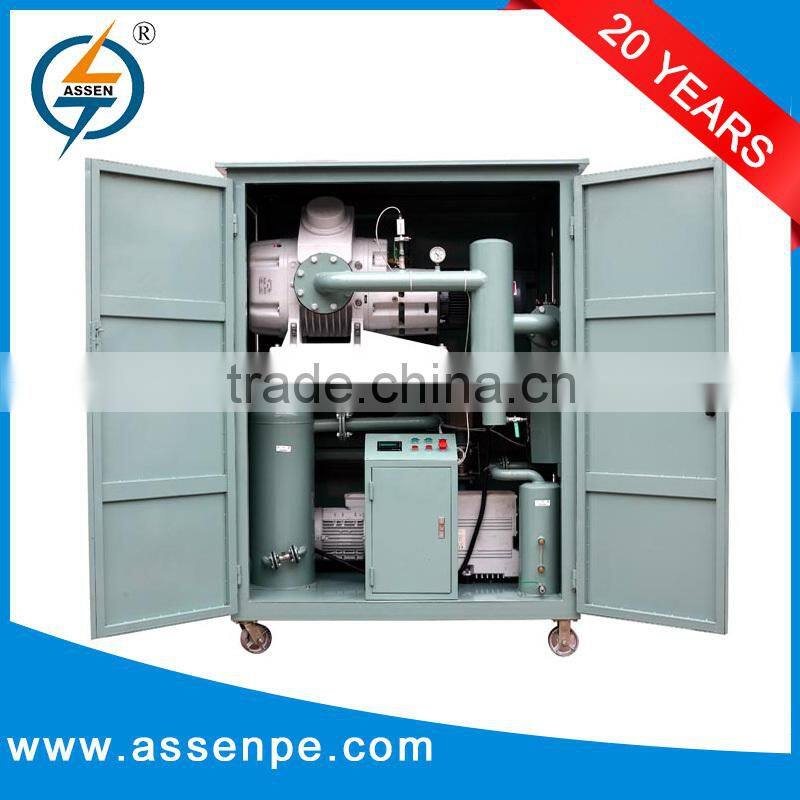

advanced technology transformer oil treatment plant
-Double-stage vacuum system
-SGS, ISO,CE qualifying
-Prompt Delivery
-Apply to insulation oil, transformer oil, etc.
-One year Guarantee.
-Form A
-Duplex-Stereo film evaporation technology
-Efficient electric heating system
ZYD series double stage vacuum transformer oil treatment plant is manufactured according to standards, which go beyond Chinese legal criterion, dealing with almost insulation oil of power equipment more rapidly and effectively with the supporting of high vacuum and speed absorption. Thus the strength of insulation oil is much increased, and the dealing time has been shortened..
1.Operational control can be switch- and relay-logic or PLC with touchscreen Online test and monitoring equipment
2.Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3.Precise filtration system,high-quality filter element,multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7.Adopt interlocked protective system,which connect oil pump,heater and liquid level sensor,avoiding blank heating,blank pumping.
- Transformer is one of the main asset in the electrical power industry which needs to be maintained for guaranteed uninterrupted power transmission in order to get assured revenue benefits.
- Transformer life mainly depends on the quality of oil volume it contains.
- Transformer oil conditioning may also include to some extent improving the acidity of the oil.
- A good oil purification system is able to deliver filtered oil with parameters as per the standard specification.
Transformer Oil Treatment Plant's Technical Data:
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
MPa |
0.08 ~ 0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Breakdown Voltage |
KV |
≥75 |
|||||||
Water Content |
PPM |
≤3 |
|||||||
Gas Content |
% |
≤0.01 |
|||||||
Impurity Size |
μ |
≤5 |
|||||||
Temperature Range |
°C |
20 ~ 80 |
|||||||
Power |
|
Three Phase 50HZ380V(as per the customer's requirements) |
|||||||
Working Noise |
dB(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Structure Chart:
The oil technical data after treatment:
- Gas content less than 0.1%
- Impurity size less than 1μm without free carbon
- Oil dielectric strength (breakdown voltage) more than 75KV
- Acidity value less than 0.01 mgKOH/g
- Dielectric loss factors at 90°C less than 0.001
Transformer Oil Treatment Plant's Advantage:
Comparing with the single-stage vacuum oil purifier, this machine can dewater, degas and removes the impurities more quickly, more completely, and makes the oil BDV (Breakdown Voltage) of 75kV or higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.
- Your inquiry related to our products or prices will be replied in 24 hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
- OEM is available for Anern Products.
- Protection of your sales area, ideas of design and all your private information.
Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
