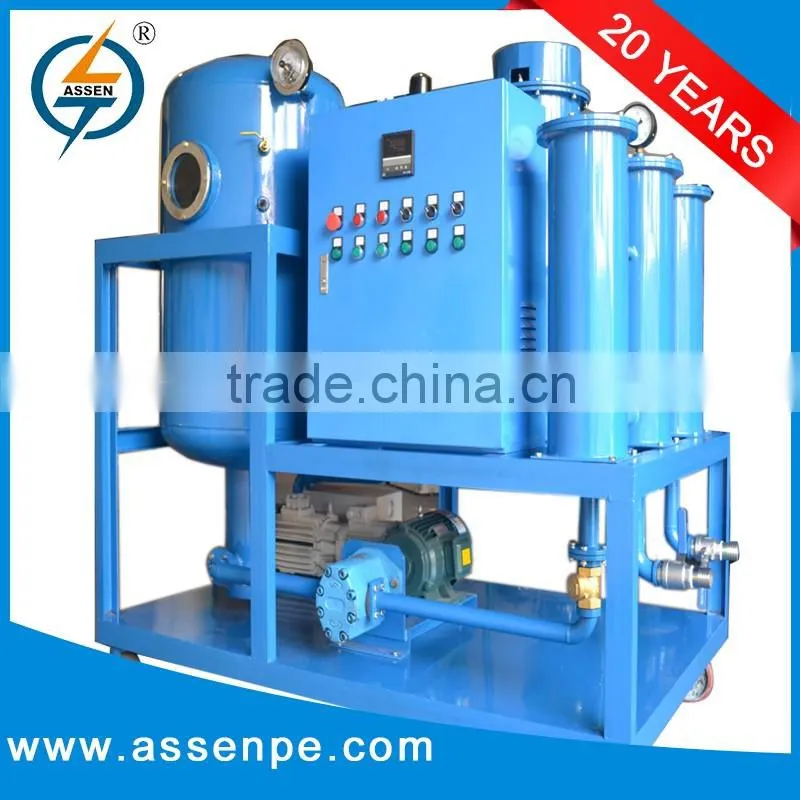

Help CenterPortable-type Transformer Oil Centrifuging Machine
Related Products
-
Low Operating Cost Transformer Oil Regeneration Device/ Insulation Oil Decoloring MachineUS$ 6,000 - 30,000MOQ: 1 Set -
Environmental Friendly Transformer Oil Recycling and Oil Recovery SystemUS$ 8,000 - 18,800MOQ: 1 Set
-
China Supplier High Capacity Vacuum Degassing Ultra High Voltage Oil Cleaning EquipmentUS$ 8,000 - 16,600MOQ: 1 Set
-
Strong Equipped High Property Transformer Oil Filtration Machine,transformer Oil Treatment PlantUS$ 15,500 - 28,880MOQ: 1 Set
-
Mobile Type Circuit Breaker Oil Filtration MachineUS$ 10,000 - 18,800MOQ: 1 Set
Application:
ZYD portable transformer oil centrifuging machine can remove water and gas in the insulating oil under high temperature and vacuity. it use more precise filter system to filter out impurities(filtering precision: 1-3um). It is mainly used for purification of oil for transformer with voltage higher than 220kv. It can increase oil breakdown voltage by at least 40kv.They are suitable for oil treatment, vacuum oil injection, and cyclic hot-oil drying in the installation and maintenance of big transformers
Features:
1. High vacuum: High point-Vacuum≤5pa Working-vacuum≤35pa
2. High absorption speed: Absorption speed power≥333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid wat er quickly
4. Distinctive removing impurity system which filters the impurity through double FH trapezoidal network and absorbs the impurity by high polymer without the mechanical power.
5. Carbon fiber infrared heating system that can have the oil contain zero sum of ethyne after the treatment.
6. Especially applied to vacuum filling oil and drying for power transmission equipments which power are over 110KV.
7. Any insulating oil can be treated on-line at the working site.

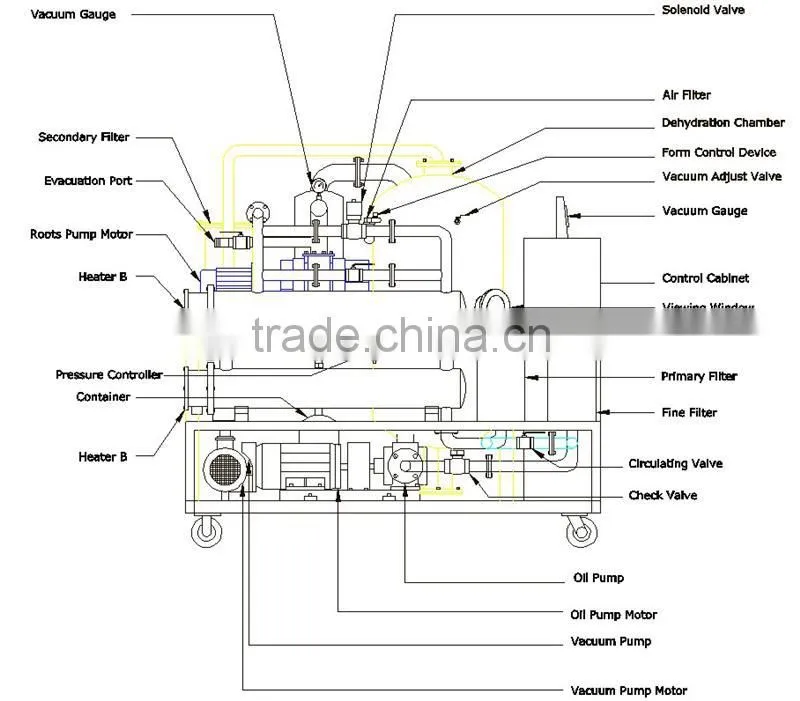

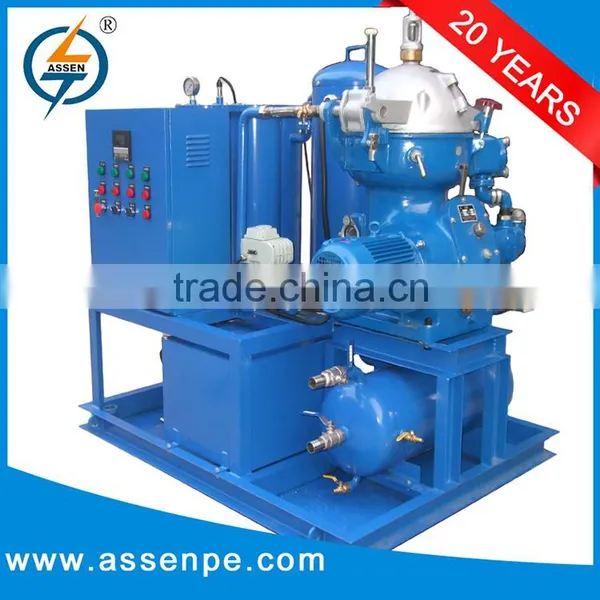

transformer oil centrifuging machine
transformer oil centrifuging machine

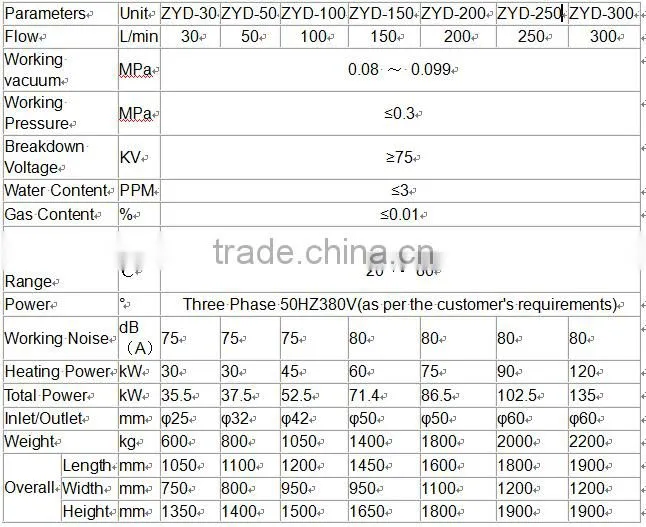

Performance:
In a single pass through the purifier at a full flow rate:
Water Removal: From 50 ppm down to less than 5 ppm in a single pass & down to 3 ppm after two passes. (According to the PPM Tester)
Gas Removal: From fully saturated with air (10% to 12% by volume) down to less than 0.1% by volume.
Particulate Matter Removal: 98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.
Dielectric Strength: Improve dielectric strength up to 75-80KV for New oil.
| After-sales Service Provided | Engineers available to service machinery overseas |
| Certification | ISO, CE |
| Weight | 720KG |
| Dimension(L*W*H) | 1650*1250*1500MM |
| Power(W) | 48KW |
| Voltage | AC380,50Hz,3P |
| Usage | Transformer Oil |
| Model Number | ZYD-50 |
| Brand Name | ASSEN |
| Place of Origin | China (Mainland) |
| China (Mainland) | Chongqing |
| Working Pressure | 0.4MPA |
| Flow | 3000LPH |
| Condition | New |
| transformer oil centrifuging | transformer oil centrifuging |
Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, transformer oil centrifuging machine , Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty (20) months from date of shipment or eighteen (18) months after the start-up of the system. ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
1. We customlize the machine as your requirements.
2. We have more than 10 years export experience.
3. We offer our customers high quality products at competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
Trailer mounted Tr ...

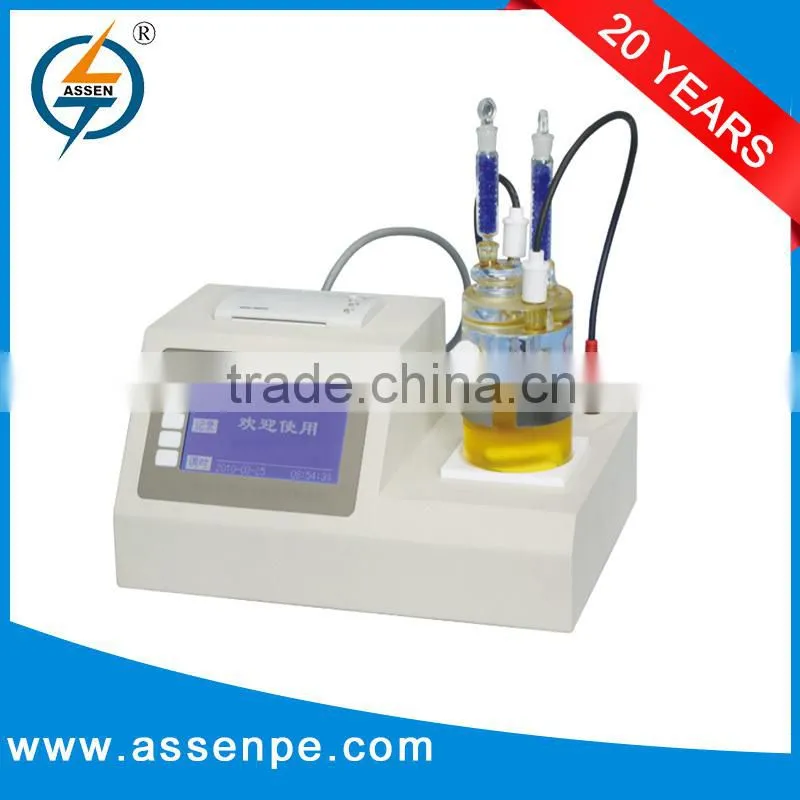

Coulometric Karl F ...
