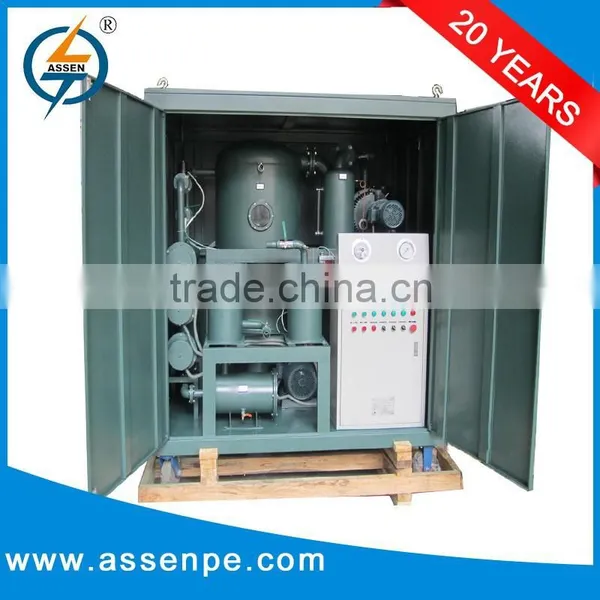

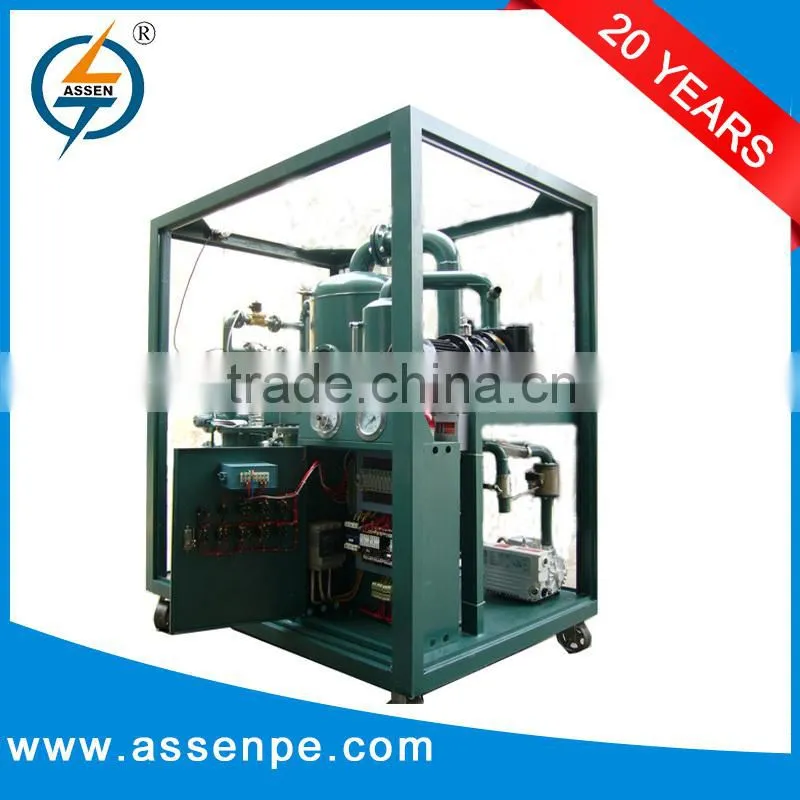

Enclosed type HV Transformer Oil Purifier,Insulation Oil Treatment,Oil Filtration unit
A necessary equipment of all utility and industrial customers is continued transformer maintenance, Aside from avoiding over voltages,the primary process that promotes transformer longevity is oil reclamation. transformers require pure, clean oil to ensure dielectric strength and insulation properties.
Assen ZYD transformer oil purifier plants are suitable for cleaning of contaminated transformer oil, cable oil and insulating oil,etc. Depending on type contamination equipment are designed using combination of processes such as vacuum oil purifying, degassification, coalescing and filtration
1. Pre-Electromagnetic-valve before vacuum pump to prevent the vacuum oil flow backwards.
2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
3. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
5.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Pre-gas-water separator before vacuum pump to prolong the vacuum pump and vacuum pump oil.
7. Double protecting system, Gas-water separator equips liquid level protector to prevent oil escape from vacuum pump
8. Optical oil foam detector and high oil level detector to prevent oil escape from vacuum pump
9. Low oil level sensor to prevent oil pump idle working, so prolong oil pump lifetime
10. Completely Intelligent pressure protector to protect oil pump and fine filter
11. Completely Intelligent vacuum controller to protect the booster pump
12. Fully intelligent temperature controller to prevent the large surge current
13. Phases protector, voltage overload protector to achieve unattended
- Transformer is one of the main asset in the electrical power industry which needs to be maintained for guaranteed uninterrupted power transmission in order to get assured revenue benefits.
- Transformer life mainly depends on the quality of oil volume it contains.
- Transformer oil conditioning may also include to some extent improving the acidity of the oil.
- A good oil purification system is able to deliver filtered oil with parameters as per the standard specification.
Transformer Oil Purifier system's Technical Data:
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
MPa |
0.08 ~ 0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Breakdown Voltage |
KV |
≥75 |
|||||||
Water Content |
PPM |
≤3 |
|||||||
Gas Content |
% |
≤0.01 |
|||||||
Impurity Size |
μ |
≤5 |
|||||||
Temperature Range |
°C |
20 ~ 80 |
|||||||
Power |
|
Three Phase 50HZ380V(as per the customer's requirements) |
|||||||
Working Noise |
dB(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Structure Chart:
The oil technical data after treatment:
- Gas content less than 0.1%
- Impurity size less than 1μm without free carbon
- Oil dielectric strength (breakdown voltage) more than 75KV
- Acidity value less than 0.01 mgKOH/g
- Dielectric loss factors at 90°C less than 0.001
Transformer Oil Purifier's Advantage:
Comparing with the single-stage vacuum oil purifier, this machine can dewater, degas and removes the impurities more quickly, more completely, and makes the oil BDV (Breakdown Voltage) of 75kV or higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.
