Home > Industrial Equipment & Components > Filtration Equipment & Parts > Machine Oil Purifier > ZYD-M Trailer Mounted High Vacuum Transformer Oil Dehydrator Unit

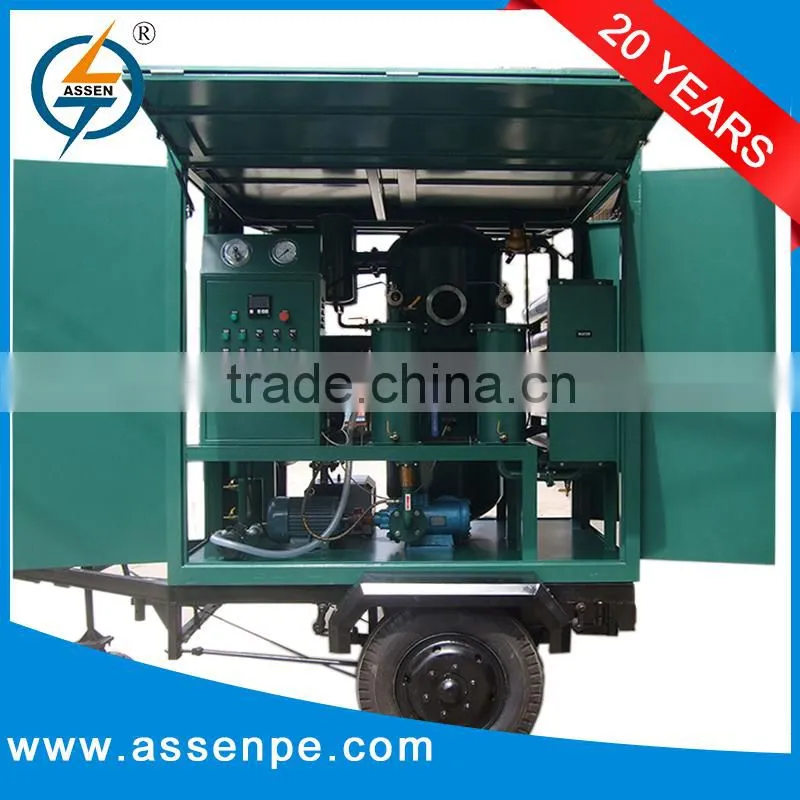

ZYD-M Trailer Mounted High Vacuum Transformer Oil Dehydrator Unit

Name: ZYD-M Trailer Mounted High Vacuum Transformer Oil Dehydrator Unit
Brand: ASSEN
SKU: 102105835
Availability: InStock

ZYD-M Trailer Mounted High Vacuum Transformer Oil Dehydrator Unit thumbnail-1

ZYD-M Trailer Mounted High Vacuum Transformer Oil Dehydrator Unit photo-1

US$ 7,000 - 8,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Flow:

1800LPH

Working Pressure:

0.5MPA

Contact Supplier Request Quote Chat Now

Chongqing Assen Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHONGQING

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Flow 1800LPH

Working Pressure 0.5MPA

Place of Origin Chongqing, China

Brand Name ASSEN

Model Number ZYD-30

Usage Transformer Oil

Voltage 220 380 400

Power(W) 42kw

Dimension(L*W*H) 1650*1150*1450MM

Weight 800KG

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

ZYD-M Trailer Mounted High vacuum transformer oil dehydrator unit

Product Application

Series ZYD-M Trailer mounted high vacuum transformer oil dehydration unit is suitable for filtering new oil ,imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.

Product Features

1.Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.

2. It can be widely used for oil filling for transformers and circuit breakers under vacuum condition.

3. Precise filtration system, high-quality filter element, multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.

4. An advanced fully automatic temperature controlling system,liquid-level controlling system,defoaming controlling system,pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.

5. Online work,allowing separated operation of manual operators from machine with lamps indicating the condition for operation.

6. It is humanization design with low noise,deep purification and long time free maintenance to save cost from the running process.

7. Purifiers are equipped with a chain safety protective system,an interlocking of oil drainage system,vacuum system and heating system,which avoids any possible negative impacts caused by mal-operation.

Product Description

Transformer oil dehydration unit:

In the transformer project, dielectric strength and dry of transformer oil is most important. For keeping transformer oil absolutely clean and drying, our company develop ZYD-M trailer mounted transformer oil dehydration unit, it uses two stages vacuum dehydration and degasification system. We also install three stage filtering system for removing particles well. ZYD-M trailer mounted transformer oil dehydration unit is widely used in electric power, transforming electricity industry, metallurgy, chemical engineering, traffic, railway and others project.

Transformer oil dehydration unit's Technical Data:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow		L/min	30	50	100	150	200	250	300
Working vacuum		MPa	0.08 ~ 0.099
Working Pressure		MPa	≤0.3
Breakdown Voltage		KV	≥75
Water Content		PPM	≤3
Gas Content		%	≤0.01
Impurity Size		μ	≤5
Temperature Range		°C	20 ~ 80
Power			Three Phase 50HZ380V(as per the customer's requirements)
Working Noise		dB(A)	75	75	75	80	80	80	80
Heating Power		kW	30	30	45	60	75	90	120
Total Power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900

Structure Chart:

The oil technical data after treatment:

Item	Guarantee indexes
Moisture content	≤3PPM
Impurity size	≤1 micron
Gas content	≤0.1%
Breakdown voltage	≥75

Transformer oil dehydration unit's Advantage:

Comparing with the single-stage vacuum oil purifier, this machine dewaters, degases and removes the impurities more quickly, more completely, and improves the oil breakdown voltage much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment .

Packaging & Shipping

Our Services

Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for Anern Products.
Protection of your sales area, ideas of design and all your private information.

Our Customers

FAQ

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
