Mobile Type Transformer Oil Filtration,Oil Filtering Plant

Name: Mobile Type Transformer Oil Filtration,Oil Filtering Plant
Brand: ASSEN
SKU: 102105863
Availability: InStock

Mobile Type Transformer Oil Filtration,Oil Filtering Plant thumbnail-1

Mobile Type Transformer Oil Filtration,Oil Filtering Plant photo-1

US$ 6,666 - 9,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Flow:

1800LPH

Working Pressure:

0.5MPA

Contact Supplier Request Quote Chat Now

Chongqing Assen Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHONGQING

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Flow 1800LPH

Working Pressure 0.5MPA

Place of Origin Chongqing, China

Brand Name ASSEN

Model Number ZYD-30

Usage Transformer Oil

Voltage 220 380 400

Power(W) 35KW

Dimension(L*W*H) 1750*1250*1660

Weight 800KG

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

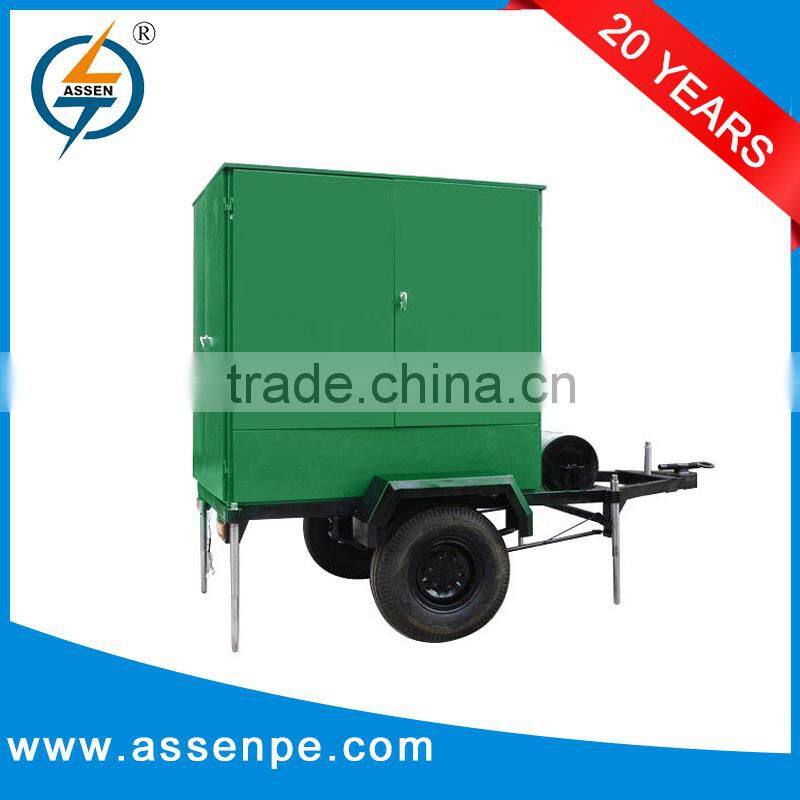

Mobile type Transformer Oil Filtration,Oil Filtering Plant

Product Application

Dielectric oil used in transformers is effected by moisture, particles and dissolved gases,the functions of insulation and dielectric strength will decrease. ZYD Mobile type transformer oil filtration,oil filtering plant can keep oil absolutely drying and clean by removing water,gas,solid,dust etc, and improving the insulating oil performance index. The vacuum transformer oil purifer ensure efficient performance of transformers and reduce ecological disposal problems.ZYD transformer oil filtration is skid mounted,self-contained and equips controlled full state operational panel for fully automatical operation.

Product Features

1.To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.

2.Enhance the value of breakdown voltage greatly.

3.Easy handling and maintenance.

4.Inject oil into the transformers

5.Online work

6.Lower maintenance and replacement expenses

7.High efficiency and effectiveness

8.Available in mobile or stationary options.

9.Small size, light weight, low noise

10.Various sizes and configurations (alloy shield) available.

Product Description

transformer oil filtration:

Transformer is one of the main asset in the electrical power industry which needs to be maintained for guaranteed uninterrupted power transmission in order to get assured revenue benefits.
Transformer life mainly depends on the quality of oil volume it contains.
Transformer oil conditioning may also include to some extent improving the acidity of the oil.
A good oil purification system is able to deliver filtered oil with parameters as per the standard specification.

transformer oil filtration's Technical Data:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow		L/min	30	50	100	150	200	250	300
Working vacuum		MPa	0.08 ~ 0.099
Working Pressure		MPa	≤0.3
Breakdown Voltage		KV	≥75
Water Content		PPM	≤3
Gas Content		%	≤0.01
Impurity Size		μ	≤5
Temperature Range		°C	20 ~ 80
Power			Three Phase 50HZ380V(as per the customer's requirements)
Working Noise		dB(A)	75	75	75	80	80	80	80
Heating Power		kW	30	30	45	60	75	90	120
Total Power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900

Structure Chart:

The oil technical data after treatment:

Gas content less than 0.1%
Impurity size less than 1μm without free carbon
Oil dielectric strength (breakdown voltage) more than 75KV
Acidity value less than 0.01 mgKOH/g
Dielectric loss factors at 90°C less than 0.001

transformer oil filtration's Advantage:
Good vacuum pressure and high flow rate. This product makes bridge with the electric equipments. Vacuum, filtration and oil injection can work independently and also they can work together. As the oil purifying nanotechnology, this machine can treat oil more quickly and more completely, and makes the oil limiting voltage-withstand value much higher than the ordinary vacuum oil purifier

Packaging & Shipping

Our Services

Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for Anern Products.
Protection of your sales area, ideas of design and all your private information.

Our Customers

FAQ

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
