Home > Industrial Equipment & Components > Filtration Equipment & Parts > Machine Oil Purifier > Stainess Steel Type Transformer Oil Purification Machine

Stainess Steel Type Transformer Oil Purification Machine

Name: Stainess Steel Type Transformer Oil Purification Machine
Brand: ASSEN
SKU: 102105793

Stainess Steel Type Transformer Oil Purification Machine thumbnail-1

Stainess Steel Type Transformer Oil Purification Machine photo-1

US$ 6,800 - 8,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Flow:

1800LPH

Working Pressure:

0.5MPA

Contact Supplier Request Quote Chat Now

Chongqing Assen Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHONGQING

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Flow 1800LPH

Working Pressure 0.5MPA

Place of Origin Chongqing, China

Brand Name ASSEN

Model Number ZYD-30

Usage Insulation Oil

Voltage 220 380 400

Power(W) 45KW

Dimension(L*W*H) 15500*1050*1450mm

Weight 800kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

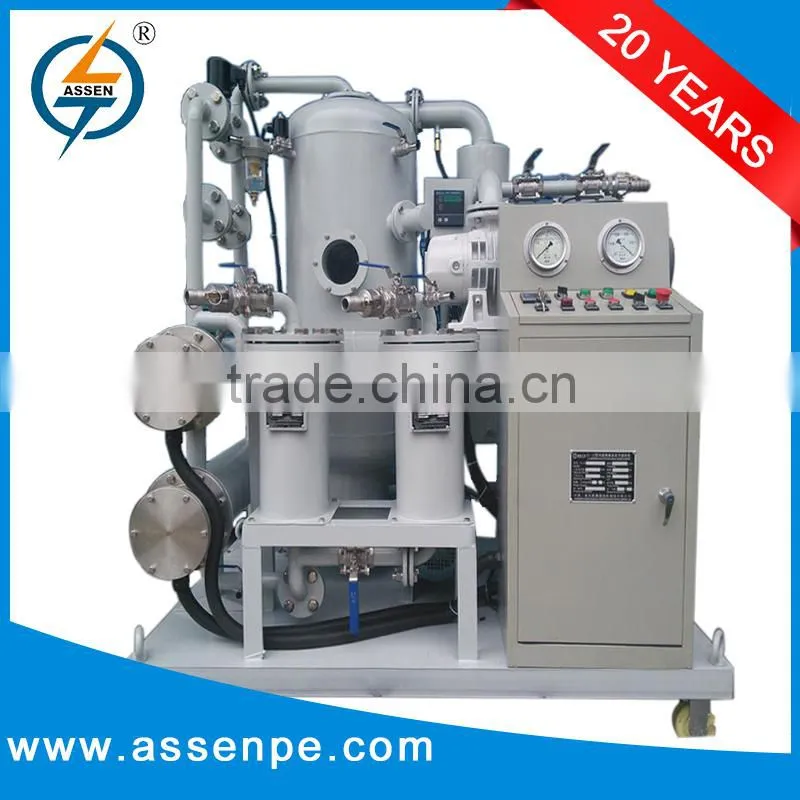

Stainess Steel type transformer oil purification machine

Product Application

ASSEN TRANSFORMER OIL PURIFICATION machine adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically. Water, gas, particles and other harmful things will contaminate dielectric strength and insulating performance of transformer oil. Series ZYD stainess steel type transformer oil purification machine combines with unique and advanced vacuum dewatering, degassing components and three grades filtering system for rapidly and effectively separating water, gas, particles from oil. ZYD transformer oil purification machine also can purify switch oil, mutual inductor oil, cable oil, circuit breaker oil, capacitor oil, insulating oil and so on. This transformer oil filter machine is the most effective, durable, and user-friendly Hi-Vacuum system on the market today.

Product Features

1, This double stage vacuum transformer oil purifier is high effective with a special booster named roots pump.
2, The vacuum oil purifier is portable and small size, so you can use it everywhere.
3, It is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.
4,The vacuum oil purifier is automatic control.
5, With the alarm, when the temperature and pressure exceed the index, all the parts will stopped.
6. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa.
7. Envirnment friendly.
8, Power cost less.
9, Strong and stable.
10, With the engineer installation.
11, We can take the special order as the customer need.

Product Description

Transformer oil purification machine:

In order to achieve optimal dielectric strength and insulating performance inside of transformers and circuit breakers, dielectric oils must be kept absolutely clean and dry. Our ZYD transformer oil purification machine, designs and builds the most effective, durable, and user-friendly Hi-Vacuum system on the market today. ZYD transformer oil purification machine combines with unique and advanced vacuum dewatering, degassing components and three grades filtering system for rapidly and effectively separating water, gas, particles from oil. Special engineered design features maximize the water extraction rates of our systems, and top-quality components and workmanship ensure years of maintenance-free operation and performance

Transformer oil purification machine's Technical Data:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow		L/min	30	50	100	150	200	250	300
Working vacuum		MPa	0.08 ~ 0.099
Working Pressure		MPa	≤0.3
Breakdown Voltage		KV	≥75
Water Content		PPM	≤3
Gas Content		%	≤0.01
Impurity Size		μ	≤5
Temperature Range		°C	20 ~ 80
Power			Three Phase 50HZ380V(as per the customer's requirements)
Working Noise		dB(A)	75	75	75	80	80	80	80
Heating Power		kW	30	30	45	60	75	90	120
Total Power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900

Structure Chart:

The oil technical data after treatment:

Item	Guarantee indexes
Moisture content	≤3PPM
Impurity size	≤1 micron
Gas content	≤0.1%
Breakdown voltage	≥75

Transformer oil purification machine's Advantage:

Comparing with the single-stage vacuum oil purifier, this machine dewaters, degases and removes the impurities more quickly, more completely, and improves the oil breakdown voltage much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment .

Packaging & Shipping

Our Services

Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for Anern Products.
Protection of your sales area, ideas of design and all your private information.

Our Customers

FAQ

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
