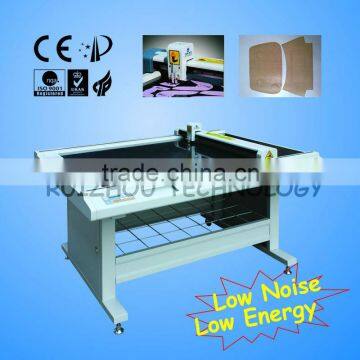

Help CenterRuizhou Shoes Machinery For Paper Cutting RZCAM-1209E
Related Products
-
Digital Apparel Plastic Sample Cutting SolutionNegotiableMOQ: 1 Piece -
Ruizhou Shoes Paper Grading Machine RZCAM-1209EUS$ 6,000 - 12,000MOQ: 1 Set
-
RZCAM-1512A Cardboard Cutting MachineNegotiableMOQ: 1 Piece
-
RZCAM-1509A PlotterNegotiableMOQ: 1 Set
-
RZCAM-0906E STATIC ABSORB CUTTING MACHINENegotiableMOQ: 1 Set
RUIZHOU TECHNOLOGY is the leading manufacturer of knife cutting machines. With over 15 years experience, we currently take up 40% market share in China.
We mainly have two types of pattern cutting machines. One is vacuum plotter, the other is electrostatic cutting machines.
Special Features of Electrostatic cutting machine:
1. Low noise
2. Low power consumption
3. Possible to cut (half-cut/kiss-cut, full-cut) and plot at the same time
4. User-friendly touch control LCD keyboard facilitates fast operation of machine
WHAT ARE THE BENEFITS?
1. Easy to use
- Ruizhou tables are easy to install and simple to set-up and use. The table is programmed for use with Ruizhou RECAD software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
2. Saves time and money whilst improving quality
- Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
- Greatly reduces the time taken to hand cut sample and graded paper patterns.
- Consistent accuracy throughout, utilizing the Ruizhou RECAD software, any modifications to the pattern can be re-cut quickly and efficiently.
- Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.
3. Flexible
- When used with Ruizhou RECAD software, Ruizhou tables are designed to work in the background, cutting and/or plotting pattern pieces whist you continue to develop other 2D patterns.
WHAT ARE THE FEATURES?

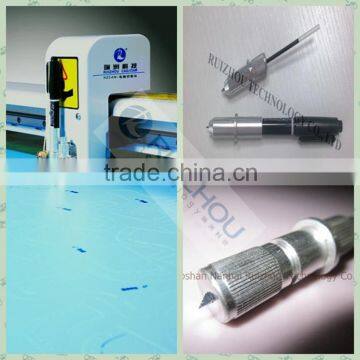

1. Tool Head
- A dual function tool head incorporating a trailing knife and pen, that is especially suited for cutting pattern paper and up to 2mm cardboard.
2. Compatibality
- Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leatherwares.
TECHNOLOGICAL SPECIFICATION
| Available Model | RZCAM-0906E |
RZCAM-1209E |
|
Working Area |
910mm*620mm |
1200mm*920mm |
|
Cutting Materials |
Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm) |
||
Working Performance |
Cutting Speed: 900mm/s (Max.) |
||
Cutting Thickness: 2mm | |||
Mechanical Resolution: 0.07mm | |||
| Blade and Pen Type | Blade: wolfram steel; |
||
Pens: water-based fibertip, oil-based ballpoint, disposable ink pen. | |||
Material hold-down method |
Electrostatic Adherence |
||
Software Resolution |
0.025mm 0.01mm 0.1mm optional |
||
Interface |
Standard parallel or Serial port |
||
Command System |
HP-GL and GP-GL compatible mode |
||
Power Comsumption |
200W AC 220±10%,50HZ |
||
Feeding Mode |
manual feeding |
||
|
|||
