Help CenterAutomatically Transformer Oil Dielectric Loss Tester
Related Products
-
Complete in Specifications Portable Tan Delta TesterUS$ 2,150 - 2,550MOQ: 1 Set -
High Quality Transformer Oil Factor TesterUS$ 1,660 - 2,500MOQ: 1 Set
-
Portable Type Oil Dielectric Loss and Resistivity TesterUS$ 2,150 - 2,550MOQ: 1 Set
-
High Reputation Dissipation Factor TesterUS$ 1,880 - 3,000MOQ: 1 Set
-
ASSEN ADT Type Insulating Oil Dielectric Loss TesterUS$ 4,800 - 5,300MOQ: 1 Set
Application:

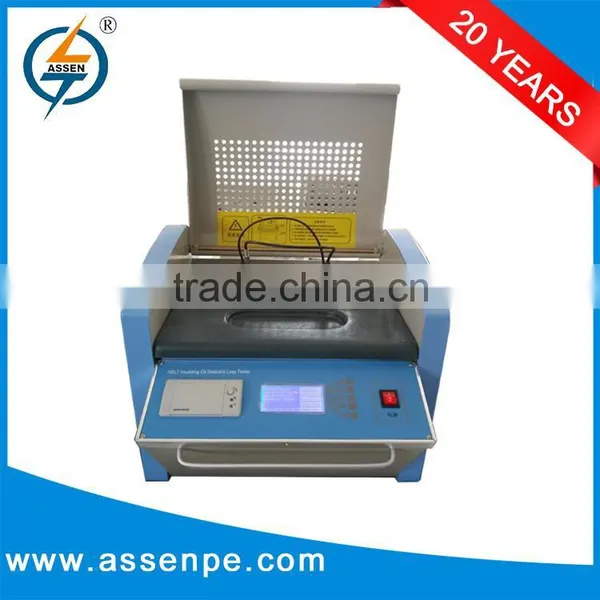

This integrated precious oil dielectric loss is for measuring dielectric loss TAN and capacitance of transformer insulation oil.This is a high precision instrument; integrated with oil cup, temperature control instrument, temperature sensor, dielectric loss test bridge, AC test power, and standard capacitor, etc.
Features:
1.Oil cup is cleaned automatically and has electrode calibration function.
2. Internal standard capacitor electrode type capacitor,with electrode spacing 2mm.
3.Large-screen LCD,backlight, display is clear.
4.More accurate. Testing AC power supply adopts AC - DC - AC conversion method.
5.Equipped with over-voltage, over-current and limit protections.
6.Measured temperature and system clock.
oil dielectric loss's Technical Parameters:
(1) Ambient condition: -5℃~40℃, RH<80%
(2) Power: AC220V +/-10%
(3) HV output voltage: 1000V~2200V
(4) Max. output current: 25mA
(5) Output capacity: 50VA
(6) Precision: 2%
(7) Temperature-control induction oven: max. power 500W
(8) Temperature control range: <100℃
(9) Power: AC220V +/-10%
(10) Temperature measuring error: +/-0.5℃
(11) Temperature control error: +/-1℃
(12) Temperature control duration: ambient to 90℃, less than 20min
(13) Measuring range: tgδ: no limit, Cx: 15pF ~300pF, Rx: 10M-10T
(14) Precision:Δtgδ: +/- (reading x 1.0% + 0.020%) , ΔCx: +/- (reading x 1.0% +0.5pF) , ΔRx: +/- reading x 10%
(15) Relative permittivity: εr, automatically calculating
(16) PVolume resistivity: ρ, automatically calculating
(17) Dimension: 450 x 310 x 360mm
(18) Weight: 18kg
| Usage | Auto Testing Machine |
| Power | Electronic |
| Model Number | ADT |
| Brand Name | ASSEN |
| Place of Origin | China (Mainland) |
| China (Mainland) | Chongqing |
| insulating oil dielectric loss | insulating oil dielectric loss |
Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams

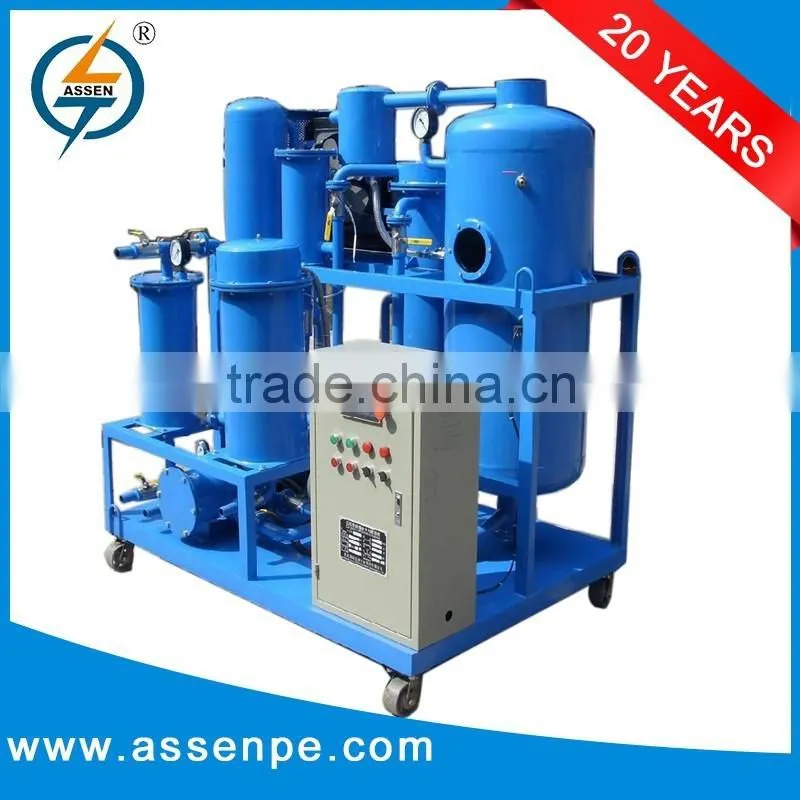

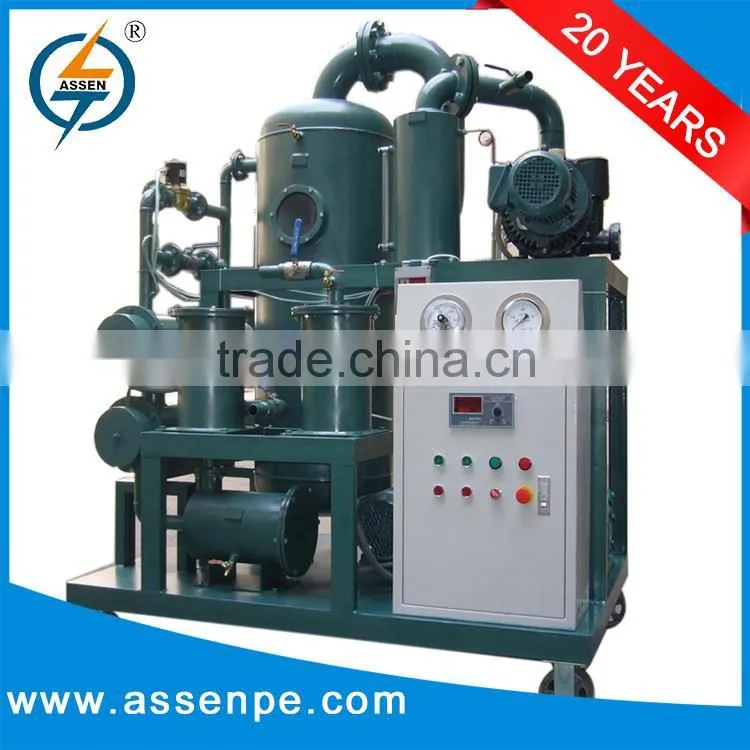

Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, oil dielectric loss, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
