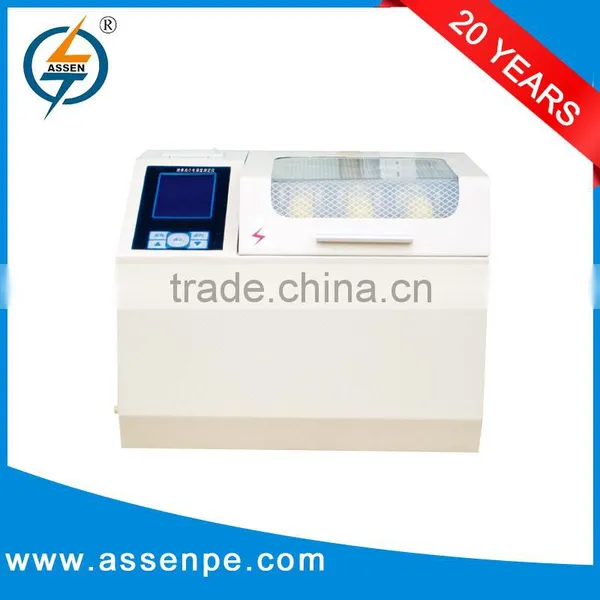

Help CenterASSEN ADT Type Insulating Oil Dielectric Loss Tester
Related Products
-
Auto Dielectric Strength Testing InstrumentsUS$ 1,950 - 2,350MOQ: 1 Set -
Automatic Type Oil Dielectric Loss TesterUS$ 4,750 - 5,150MOQ: 1 Set
-
Fully-automatic BDV Transformer Oil TesterUS$ 1,680 - 2,150MOQ: 1 Set
-
High Precision Three Cup Oil Dielectric Strength TesterUS$ 1,750 - 2,850MOQ: 1 Set
-
Fully-automatic Insulation Oil Tester(break-down)US$ 1,880 - 2,250MOQ: 1 Set
Application:
This integrated precious insulation oil dielectric loss tester is for measuring dielectric loss TAN and capacitance of transformer insulation oil.This is a high precision instrument; integrated with oil cup, temperature control instrument, temperature sensor, dielectric loss test bridge, AC test power, and standard capacitor, etc.
oil dielectric loss tester
Features:
Portable type, very light weight, not more than 18kg.
Equipped with big screen, menu displaying
Test result can be saved or printed out.
oil dielectric loss tester
Parameters:
(1) Ambient condition: -5℃~40℃, RH<80%
(2) Power: AC220V +/-10%
(3) HV output voltage: 1000V~2200V
(4) Max. output current: 25mA
(5) Output capacity: 50VA
(6) Precision: 2%
(7) Temperature-control induction oven: max. power 500W
(8) Temperature control range: <100℃
(9) Power: AC220V +/-10%
(10) Temperature measuring error: +/-0.5℃
(11) Temperature control error: +/-1℃
(12) Temperature control duration: ambient to 90℃, less than 20min
(13) Measuring range: tgδ: no limit, Cx: 15pF ~300pF, Rx: 10M-10T
(14) Precision:Δtgδ: +/- (reading x 1.0% + 0.020%),ΔCx: +/- (reading x 1.0% +0.5pF),ΔRx: +/- reading x 10%
(15) Relative permittivity: εr, automatically calculating
(16) PVolume resistivity: ρ, automatically calculating
(17) Dimension: 450 x 310 x 360mm
(18) Weight: 18kg
| Usage | Auto Testing Machine |
| Power | Electronic |
| Model Number | ADT |
| Brand Name | ASSEN |
| Place of Origin | China (Mainland) |
| China (Mainland) | Chongqing |
| insulating oil test | insulating oil dielectric loss test |
Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester,oil dielectric loss tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
