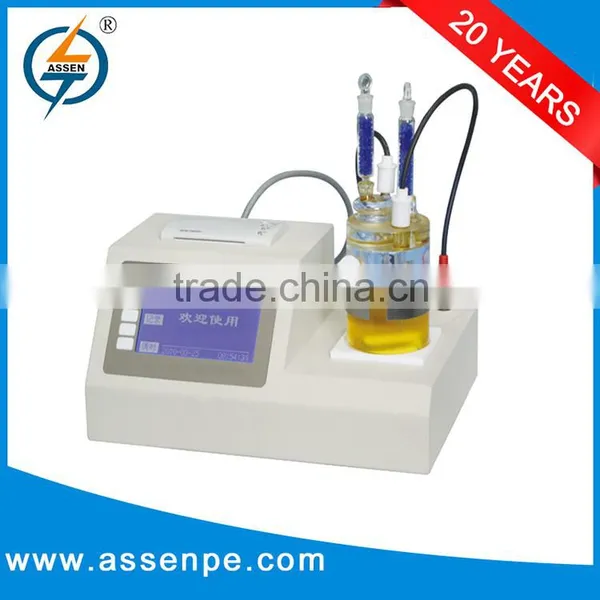

Help CenterHigh Precision Trace Moisture Analyzer
Related Products
-
Easy and Simple to Handle Water Content Test ApparatusUS$ 2,150 - 2,550MOQ: 1 Set -
Brand New Portable Moisture Analyzer,insulating Oil Water Detector SetUS$ 1,800 - 1,990MOQ: 1 Set
-
Automatically Transformer Oil Dielectric Loss TesterUS$ 2,150 - 2,550MOQ: 1 Set
-
Complete in Specifications Portable Tan Delta TesterUS$ 2,150 - 2,550MOQ: 1 Set
-
High Quality Transformer Oil Factor TesterUS$ 1,660 - 2,500MOQ: 1 Set
Application:
The instrument of trace moisture analyzer is an used for Coulometric water determination according to Karl Fischer. The instrument is designed for usage as a titrator in analytical laboratories.Its main application field is volumetric titration.
The present instrument is suitable for processing chemicals and flammable samples. The usage of this titrators therefore requires that the user has basic knowledge and experience in the handling of toxic and caustic substances. Knowledge with respect to the application of the fire prevention measures prescribed for laboratories is also mandatory.
Features:
1.Intelligent Determination
2.Powerful new-generation processor; dual-CPU design.
3.Dual power channels separate electrolytic electrode and measuring electrode;
4.Automatically removing all kinds of interference;
5.Greatly improving the accuracy of test results.
6.Measuring electrode data directly A / D sample converting;
7.Data true value avoids errors caused by analog circuit;
8.Results more accurate.
9.Easy Operation
10.Touch screen operation;
11.Only pressing once then the test will be done automatically and the reported values will automatically display.
12.Background Compensation
13.Large current background compensation. Standby time can be shortened to be less than 10 minutes.
trace moisture analyzer's Technical Parameters:
Endpoint indication :Voltametric, AC indication
Iodine production: Pulse with variable current strength and length
Current at the generator electrode: 100, 200, 400 mA
Titration speed max: 2.4 mg H2O/min
Determination range : 10 ug to 100 mg H2O
Resolution : 0.1 ug H2O
Reproducibility Sample: Reagent manufacturer's standard.
With 10 ug...1000 ug H2O: ± 2 ug
With >1000 ug H2O: 0.2% or better
Drift compensation: automatic
Display Graphical LCD: 240 x 128 dots, LED back-lit
Printer: Built-in thermal printer, Paper width 57 mm
Memory : Data storage 500 results
Stirrer control : coordinated with the titration process
RS232 interface : computer connection
| Usage | Auto Testing Machine |
| Power | Electronic |
| Model Number | KA-S |
| Brand Name | ASSEN |
| Place of Origin | China (Mainland) |
| China (Mainland) | Chongqing |
| trace moisture analyzer | trace moisture analyzer |
