Home > Products > Footwear Pattern Cutting Machine > Footwear Pattern Digital Cutting Solution Machine

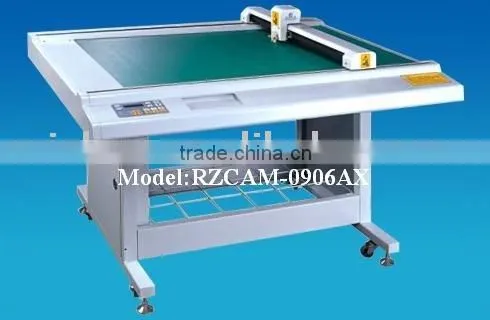

Footwear Pattern Digital Cutting Solution Machine
- 5000 Set / Sets per Month
- Guangzhou
Product Details
Place of Origin: | Guangdong, China | Brand Name: | RUIZHOU | Model Number: | RZCUT-0906AX |
Product Description
Specifications
Footwear pattern digital cutting solution is special design for sample cutting, hight technology, good performance and low cost.Footwear pattern digital cutting solution is special design for sample cutting, hight technology, good performance and low cost.
WHAT ARE THE BENEFITS?
1. Easy to use
· Ruizhou tables are easy to install and simple to set-up and use. The table is programmed for use with Ruizhou RECAD software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
2. Saves time and money whilst improving quality
· Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
· Greatly reduces the time taken to hand cut sample and graded paper patterns.
· Consistent accuracy throughout, utilizing the Ruizhou RECAD software, any modifications to the pattern can be re-cut quickly and efficiently.
· Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.
3. Flexible
· When used with Ruizhou RECAD software, Ruizhou tables are designed to work in the background, cutting and/or plotting pattern pieces whist you continue to develop other 2D patterns.
WHAT ARE THE FEATURES?
1. Tool Head
· A dual function tool head incorporating a trailing knife and pen, which is especially suited for cutting pattern paper and up to 2mm cardboard.
2. Compatibility
· Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leatherwares.
TECHNOLOGICAL SPECIFICATION
Available Model | RZCAM-0906 | RZCAM-0906X | RZCAM-0906AX |
Working Area | 910×620mm | ||
Cutting Materials | Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm) | ||
Working Performance | Cutting Speed: 900mm/s (Max.) | ||
Cutting Thickness: 2mm | |||
Mechanical Resolution: 0.07mm | |||
Blade and Pen Type | Blade: wolfram steel; | ||
Pens: water-based fibertip, oil-based ballpoint, disposable ink pen. | |||
Material hold-down method | Double-face Stickup | ||
Software Resolution | 0.025mm 0.01mm 0.1mm optional | ||
Interface | Standard parallel or Serial port | ||
Command System | HP-GL and GP-GL compatible mode | ||
Power Consumption | 200W AC 220±10%,50HZ | ||
Feeding Mode | manual feeding | ||
Dimension of Packaging | 1.48m(Length)*1.15m(Width)*0.45m(Height) |
