Help CenterXD926 Coal Wheel Loader
Related Products
Specifications
XD926 coal wheel loader1.Working in coal/iron/non-ferrous metal mine.
2.Super low/narrow/short.
3.Environmental design

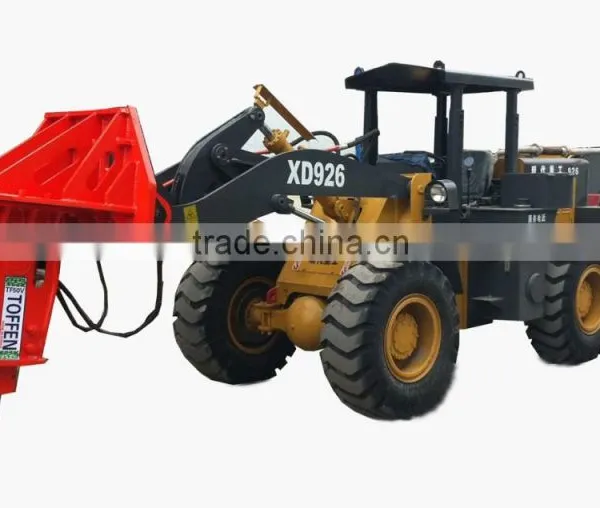

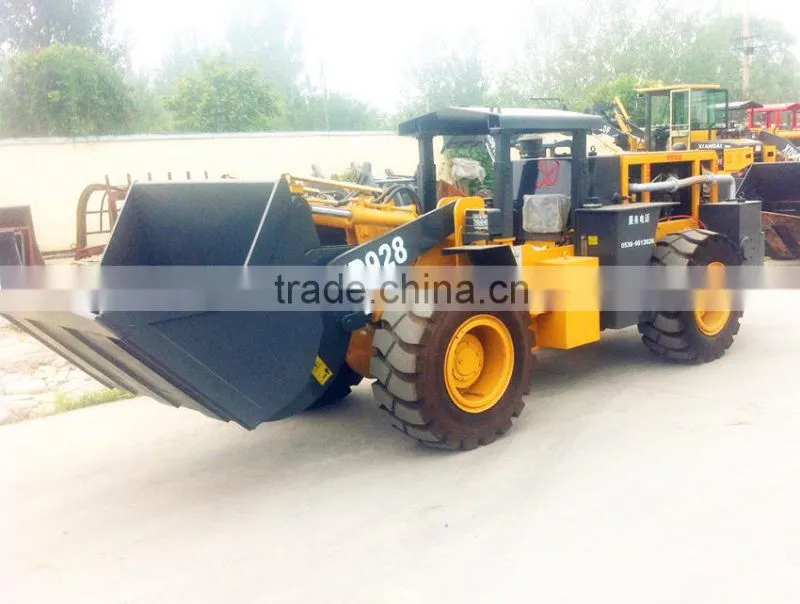

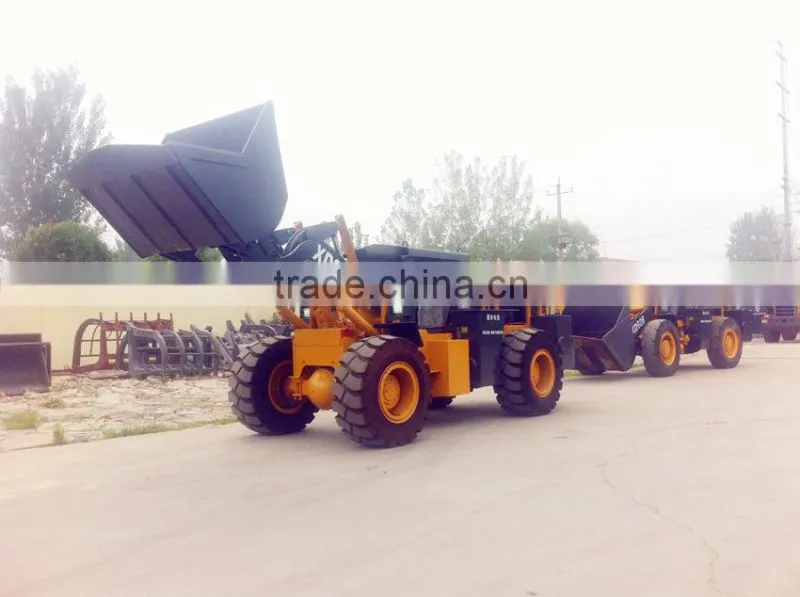

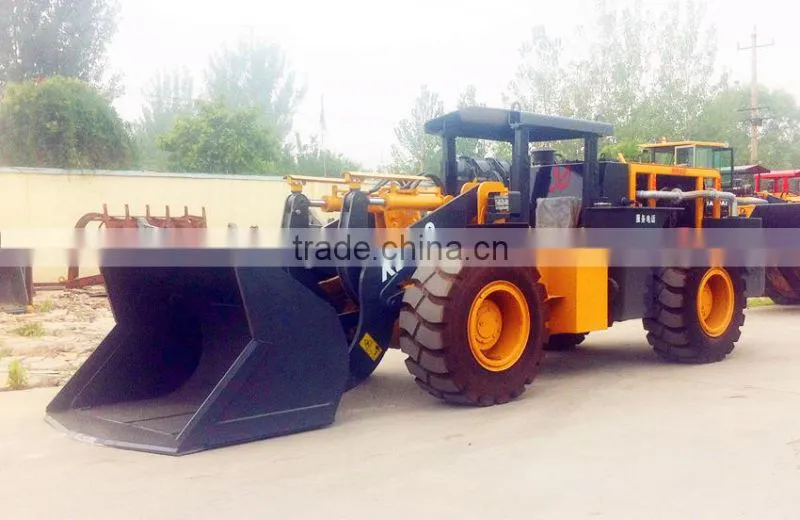

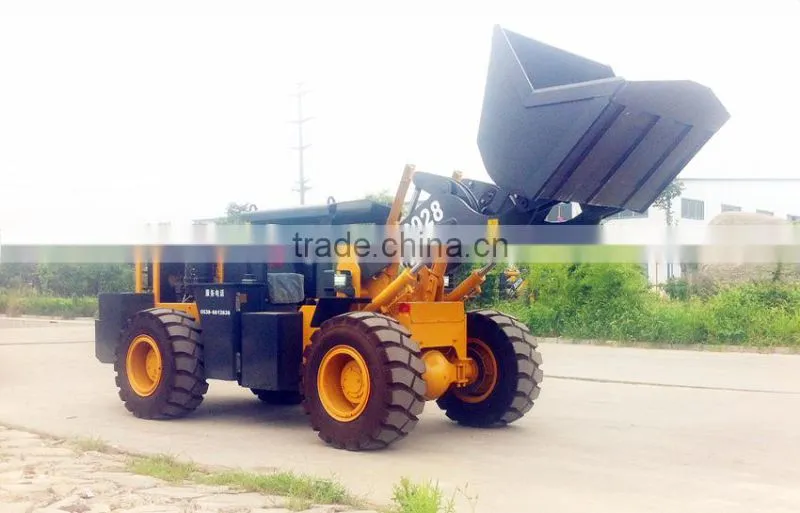

XD926 coal wheel loader
1.YTO LR4A3Z-22 turbo engine, YJ280 type torque converter and ZL20 gearbox, ZL25 heavier type driving axles, ratio decreased, traction increased 20%, more powerful and work more efficiently.

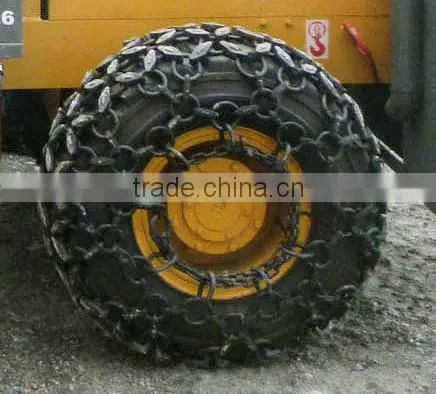

2.Air over hydraulic brake, 15/70-18 tyre,automatic leveling function.
3.Strengthed frame, more robust, tires have high adhesion.
4.Bucket motherboard with wear-resistant 400 steel plate made by Wugang, very durable;
5.Overall length ≤5.2 meters, the whole width ≤1.8 meters, Overall height ≤1.9 meters, more narrower, lower and shorter, suitable for ultra-low, ultra-narrow aisle works.

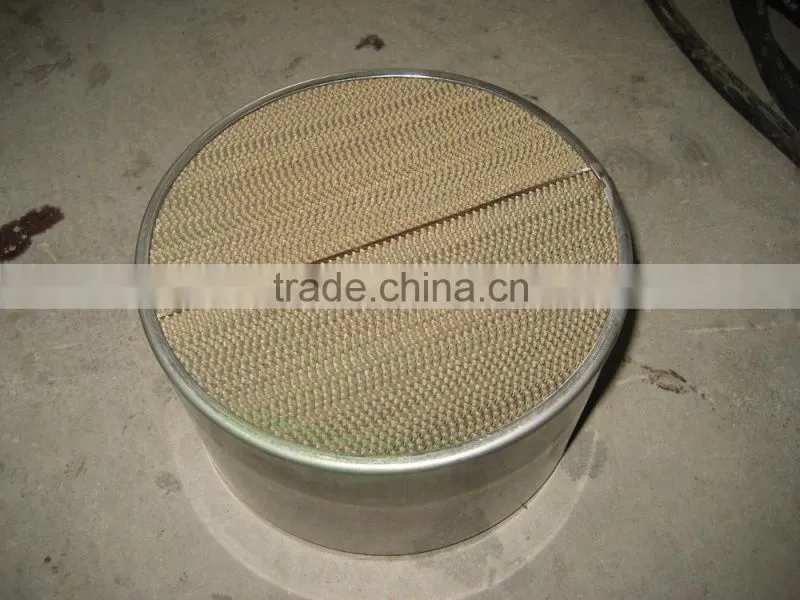

6. Standard with exhaust purification device (optional imported three way catalytic converter; optional wet brake axle)
Bucket capactity () |
1.0 |
Rated load (T) |
2.0 |
Weight (T) |
7.0 |
Speed (km/h) |
0-13 |
Forward gear (km/h) |
I 0-5 II 0-13 |
Reverse gear (km/h) |
I 0-5 II 0-13 |
Length (mm) |
5500 |
Width (mm) |
1800 |
Height (mm) |
1900 |
Wheel base (mm) |
2450 |
Wheel tread (mm) |
1420 |
Max.dumping height (mm) |
1540 |
Dumping distance (mm) |
945 |
Engine model |
LR4B3-24 |
Rated power (Kw) |
60 |
Tyre type |
15/70-18 |
