Help CenterXD926 Coal Mining Loading Machines
Related Products
Specifications
XD926 coal mining loading machines1.Working in coal/iron/non-ferrous metal mine.
2.Super low/narrow/short.

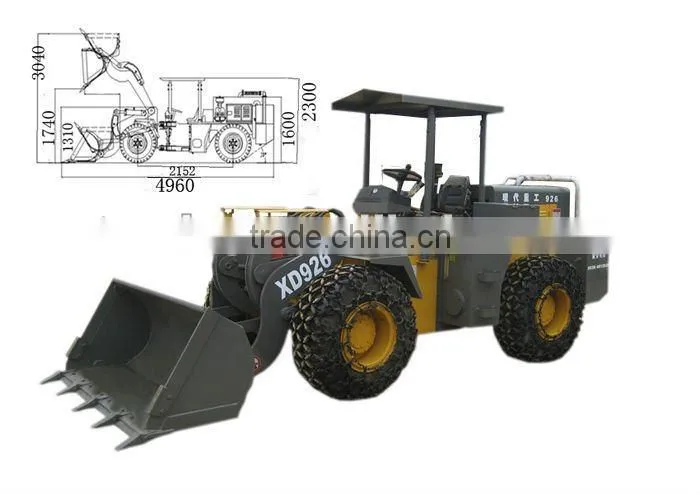

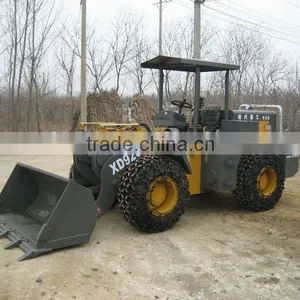

XD926 coal mining loading machines
1. China famous brand YTO4108 engine.
2. Hydraulic transmission and hydraulic steering.
3. Countershaft power-shift gearbox, torque converter.
4. Air over hydraulic break system, caliper break system.
5. Wheel reduction axle, automatic bucket flat.
6. Over load protection system
Specification
Bucket capacity (m3) |
0.8(Rock bucket) |
Rated load (T) |
2.0 |
Weight (T) |
5.2 |
Lifting time of arm (S) |
≤4.0 |
The sum of three items (S) |
≤10 |
Travelling speed (Km/h) |
0-24 |
Forward gear I (Km/h) |
0-7 |
Forward gear II (Km/h) |
0-24 |
Reverse gear (Km/h) |
I 0-7 II 0-24 |
Overall length (mm) |
4960 |
Overall width (mm) |
1800(Rock bucket) |
Overall height (mm) |
2000 |
Wheel base (mm) |
2152 |
Wheel tread (mm) |
1420 |
Max dumping height(mm) |
1740 |
Dumping reach (mm) |
945 |
Engine model |
4108/4105turbo-charge |
Rated power (Kw/h) |
60/66 |
Rated speed (r/min) |
2400 |
Tires type |
15/70-18 |
