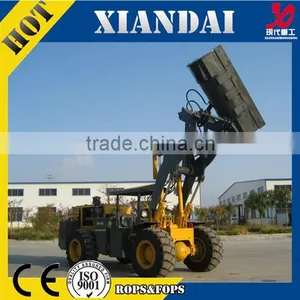

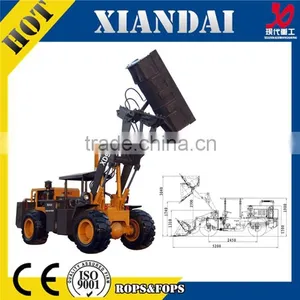

XD926G SIDE DUMP Loader Express Underground Loader 2.0Ton Wheel Loader MADE IN CHINA

Name: XD926G SIDE DUMP Loader Express Underground Loader 2.0Ton Wheel Loader MADE IN CHINA
Brand: XIANDAI
SKU: 102092457

US$ 16,000 - 22,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XIANDAI

Model Number:

XD926 SIDE DUMP

Taian Modern Heavy Industries Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XIANDAI

Model Number XD926 SIDE DUMP

Condition New

Specifications

side dump wheel loader
1.Explosion proof
2.Specialized for mining,tunnel
3.Environmental design
4.Very low.

Product Description

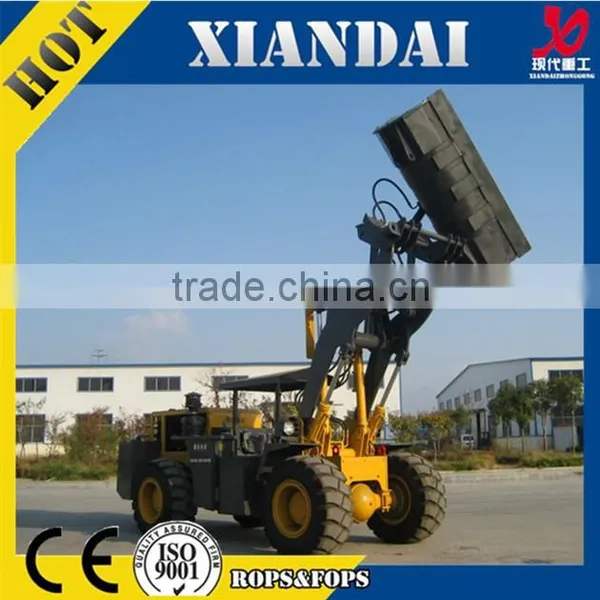

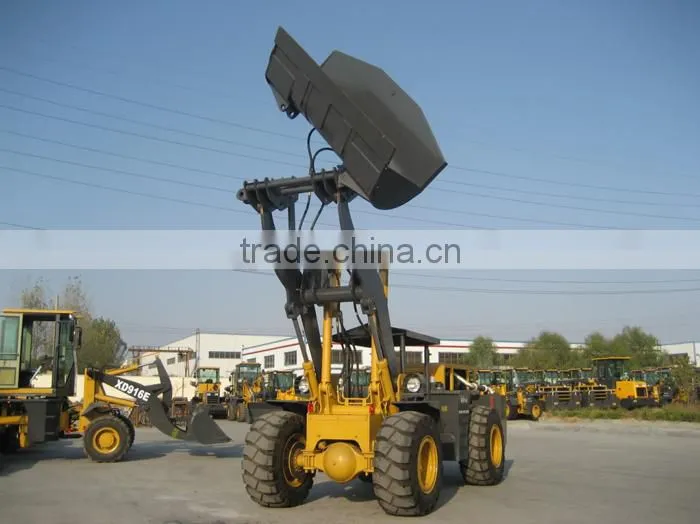

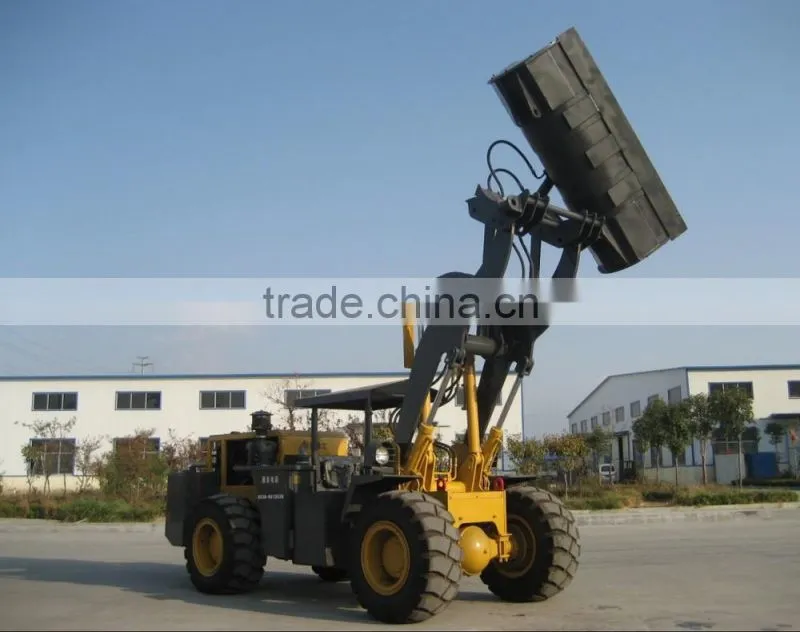

Specially disigned bucket make it possibole to load and unload ores in one side, suitable for different working conditions.

1.China famous brand YTO 4108 or 4105 turbo-charge engine.

2.Hydraulic transmission and hydraulic steering.

3.Countershaft power-shift gearbox ,torque converter.

4.Air over hydraulic break system ,caliper break system.

5.Wheel reduction axle, automatic bucket flat.

6.Over load protection system.

7.Optional: Three-way catalytic converter, wheel protection chains

II. Specifications

Model	XD926
Main specifications
Bucket capacity (m³ )	0.8
Rated load (t)	2.0
Weight (t)	5.2
Lifting time of the arms (s)	≤4
The sum of three items(s)	≤8
Forward gear(km/h)	I 0-7 II 0-24
Reverse gear	I 0-7 II 0-24
Max. climbing gradient	30°

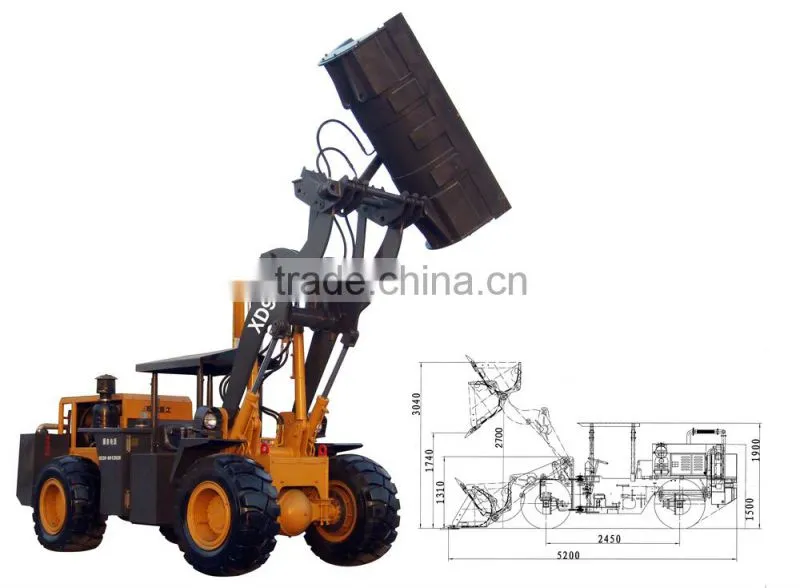

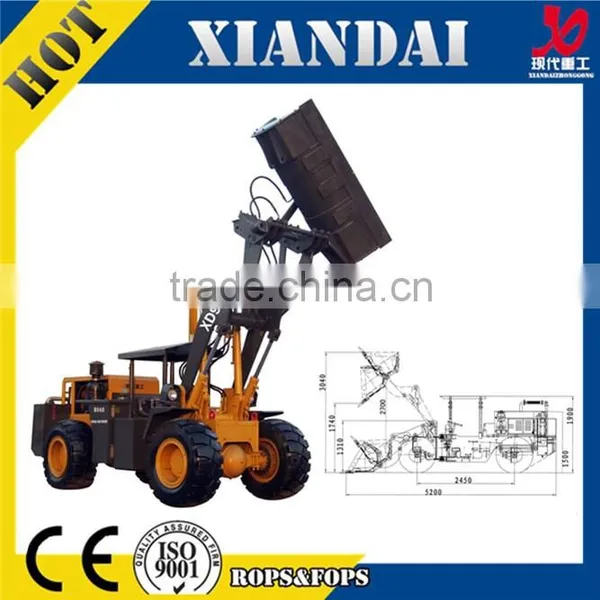

Demensions
Overall dimension (LWH mm)	520018001900
Wheel base (mm)	2450
Wheel tread(mm)	1420
Max. dumping height(mm)	2700
Dumping reach (mm)	945
Diesel engine
Engine model	YTO4108
Engine type	In-line,water-cooling,4-stroke,4cylinder,direct-injection
Rated power(kw)	60
Rated speed (r/min)	2400
Total exhaust of cylinder(L)	4.58
Type of starting	Electric start
Transmission system
Torque converter
Model	YJ280
Type	Single stage, three elements
Gearbox
Model	ZL20
Type	Fix counter-shaft, power-shift
Axle and tire
Type of main reducer	Spiral bevel gear,single stage
Type of final reducer	Single stage planetary
Size of tire	15/70-18
Working device of hydraulic system
Model of working pump	CBG2063
Nominal displacement(ml/r)	63
Multi-way directional valve	ZL20
Rated flow(L/min)	20
Steering system
Type	Load-sensing hydraulic steering
Displacement(ml/r)	250
Max input pressure(Mpa)	16
Brake system
Type of traveling break	Air over hydraulic break
Type of parking break	Manual disc brake
