Sand washing machine
Application
This series is depenging on the practice in sand and stone production,absorbing the leading technology home and abroad,and is widely used in sand making industry.
Main Features
It is of high efficiency and has the features of reasonable structure,high capacity and low consumption.It can make final products free from dirt and impurities and reduce the high quality sand loss.It is on behalf of the new technique compared with the same equipment in other companies.

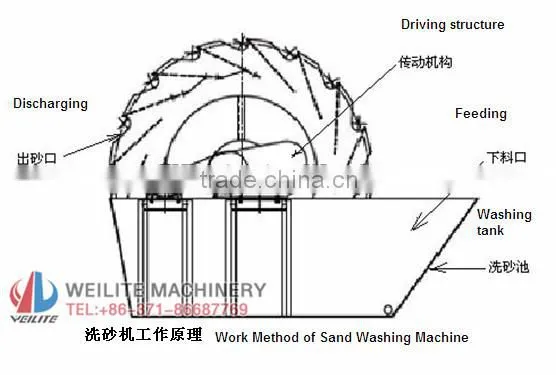

Working Principle

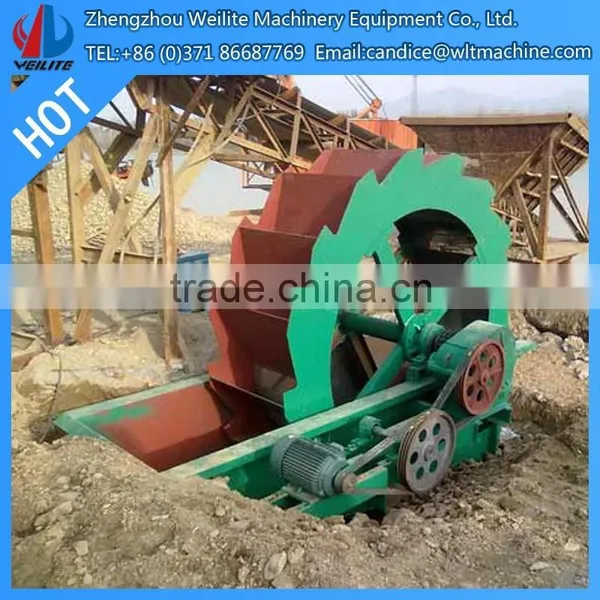

When it works, motor drives the impeller slow rotation throughthe Vbelt,reducers, gear. Sand enters into the tankwasher through the feeding slot,and roll by the driven of gear. Then they grind each other to remove the impurities that cover the gravel surface, and destroy the vaporcoated layer of sand to facilitate dehydration. At the same time, add water to create a strong water flow, take the impurities and small proportion away timely, and discharge them from the washingtank to complete the cleaning effect. The clean sand is taken away by the blade. At last, sand is poured into the outfeed channel through the turning impeller, and complete the sand cleaning.
Technical Parameter
| Type | Capacity(t/h) | Return Sand Capacity(t/h) | Power(kw) | Weight(kg) |
| XSD 2000 | 8-40 | 3-8 | 4 | 1900 |
| XSD 2600 | 20-100 | 5-15 | 5.5 | 3500 |
| XSD 2800 | 50-130 | 8-70 | 7.5 | 5100 |
| XSD 3200 | 240-300 | 80-130 | 11 | 8800 |
| XSD 3600 | 280-500 | 100-200 | 15 | 14200 |
Our service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.

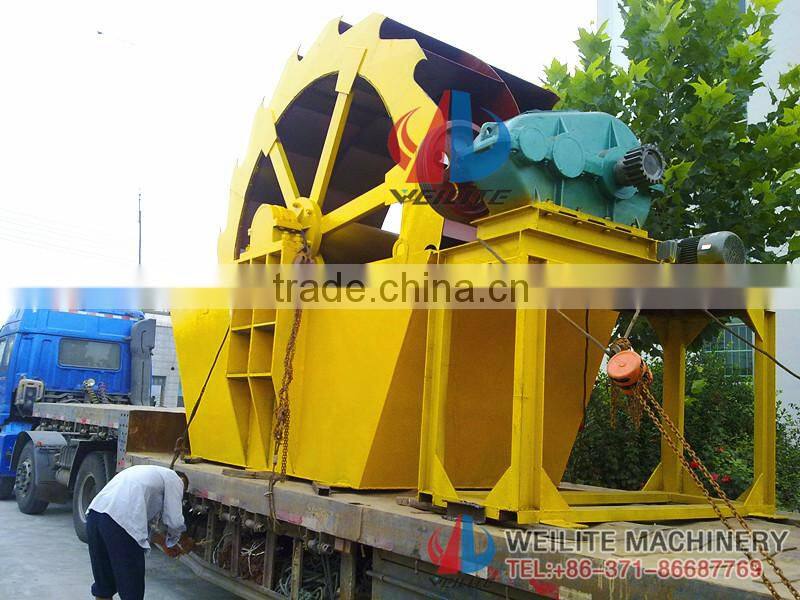

Machine Delivery Of Sand Washing Machine
Zhengzhou Weilite Machinery Equipment Co., Ltd. is an import and export oriented enterprise. Our company produces large and mediumsized mining machinery, metallurgical equipment,building materials equipment.We main production briquette machines, dryers,crushers,vibrating feeders,conveyors,sand washing machines,grading machines,magnetic separators and flotation machines, etc.
They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
If any need, please contact me for details. Website: /
