Sand Circular Vibratory Screen / Bibratory Sand Screener

Sand Circular Vibratory Screen / Bibratory Sand Screener photo-1
Sand Circular Vibratory Screen / Bibratory Sand Screener photo-2
Sand Circular Vibratory Screen / Bibratory Sand Screener photo-3
Sand Circular Vibratory Screen / Bibratory Sand Screener photo-4
Sand Circular Vibratory Screen / Bibratory Sand Screener photo-5
Sand Circular Vibratory Screen / Bibratory Sand Screener photo-6
US$ 2,200 - 9,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, sand
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port Qingdao port Tianjin port or other China main ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, sand
Place of Origin Henan, China
Brand Name Weilite
Model Number YK Series
Voltage 220v/380v/440v or custom-made
Power(W) 5.5-45kw
Dimension(L*W*H) 6020*3455*4180mm
Weight 3.6-14.1t
Certification ISO9001:2000
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

    vibratory sand screener


Vibratory Sand Screener Introduction
  • Vibratory sand screener is efficient screening machines for the classification of bulk material such as coal, minerals, coke and more.
  • Vibratory sand screener is designed for especially screening stone stock of quarry and also for classifying and screening products of such departments as coal separator, mineral processing, building materials, electricity and chemical industry, cement production line, water conservancy and  hydropower, transportation, smelting and etc.

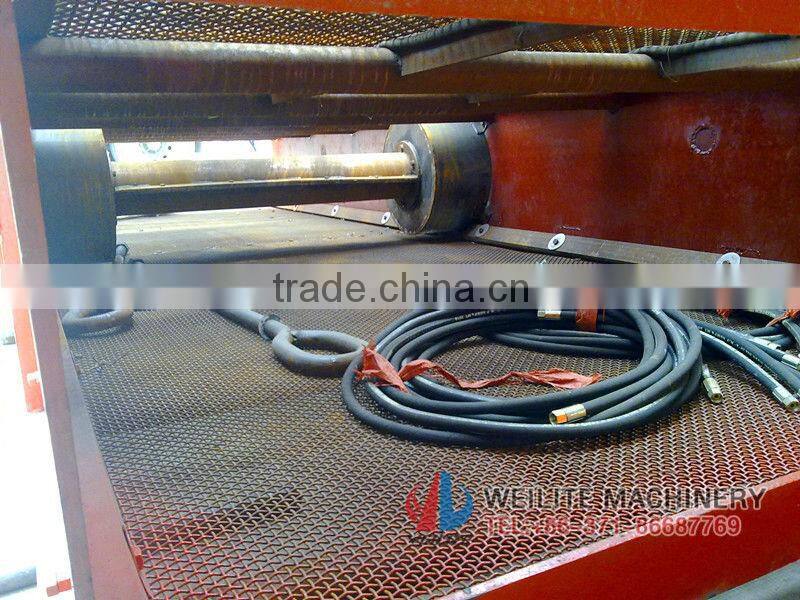

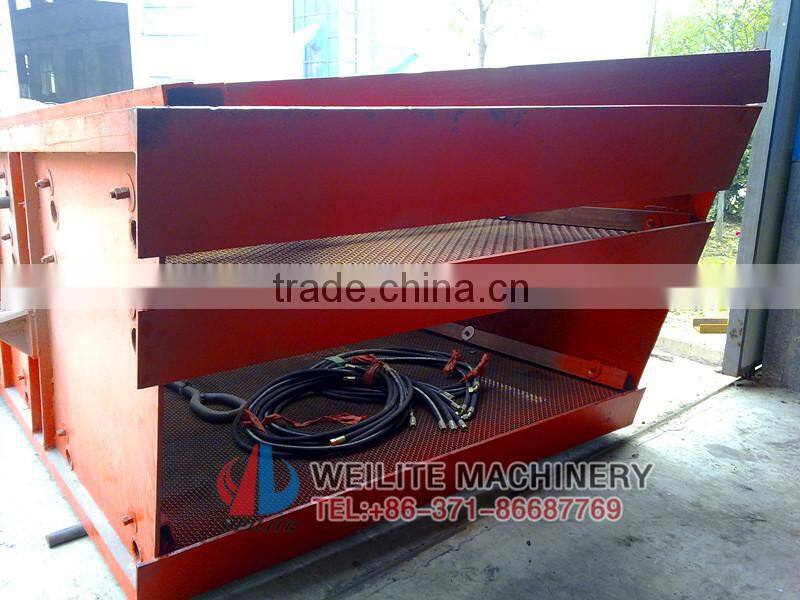

1)Pictures of vibratory sand scrrener

Sand Circular Vibratory Screen / Bibratory Sand ScreenerSand Circular Vibratory Screen / Bibratory Sand Screener

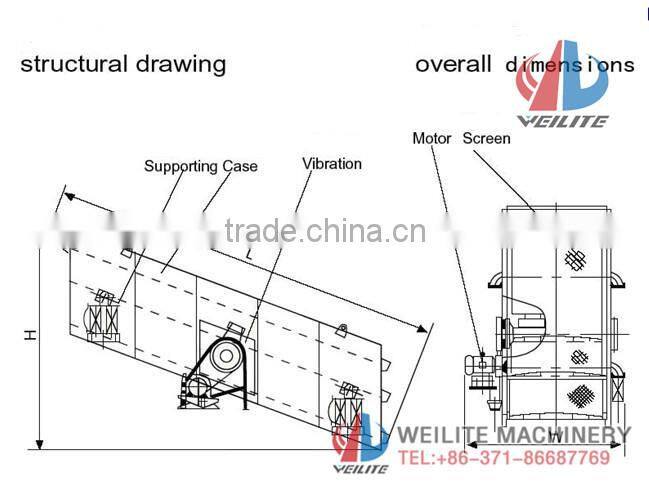

2)Vibratory sand screener working principle

The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh. they were classified as thrown up, and the particals smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.

Sand Circular Vibratory Screen / Bibratory Sand Screener

3)Main technical parameters

Type

Screen layers

Screen size

(mm)

Material-in size

(mm)

Capacity

(t/h)

Motor power

(kw)

2YK1235

2

5-120

400

60-210

5.5

3YK1545

3

5-150

400

110-385

15

2YK1854

2

5-200

400

200-450

18.5

3YK1860

3

5-200

400

250-600

22

3YK2160

3

5-200

400

300-750

37

3YK2460

3

5-200

400

400-850

45

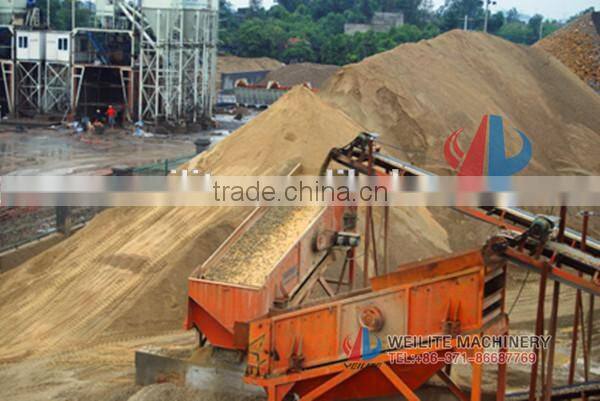

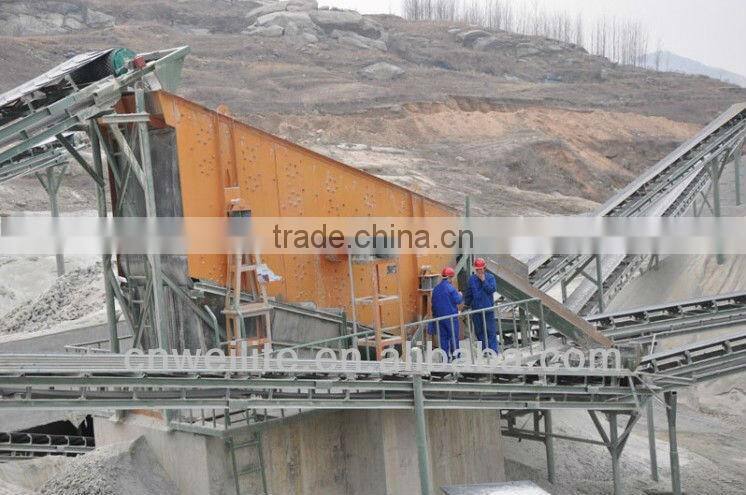

4)Vibratory sand screener installation pictures
Sand Circular Vibratory Screen / Bibratory Sand ScreenerSand Circular Vibratory Screen / Bibratory Sand Screener







Vibratory Sand Screener Packaging & Shipping

Sand Circular Vibratory Screen / Bibratory Sand ScreenerSand Circular Vibratory Screen / Bibratory Sand Screener


Our Services For Vibratory Sand Screener

1)Pre-sale services: Enthusiasm

  • We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2)Sale services: Servant

  • Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3)After-sale services: Faithfulness

  • To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

4)We provide one-year warranty to make sure your machine runs consistently.

  • We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.

Company Information

Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /

Sand Circular Vibratory Screen / Bibratory Sand Screener


FAQ About Vibratory Sand Screener

1.What's the raw material that can be screening?

  • Answer:Any kind of stone material can be screening by our machine.

2.What's the best material-in size for vibratory sand screener?

  • Answer:Less than 400mm.If larger, we will be need crudher.

3.How much is the screen mesh layers?

  • Answer:It have 2-3 layers.

4.What's the size of screen mesh?

  • Answer:It is 5-200mm

5.Can we adjust the screen mesh size?

  • Answer:Yes, we can adjust the sceen mesh size by adjusting the mesh clearance.





Note:

We can design the production line for you according to your requirments. If you need design service, pelase let us know your raw material size,finished products size and capacity.Our engineer will give you the best solution.
