Dry Sand Screen Machine
Dry Sand Screen Machine is a kind of sieving equipment and is widely used for grading and screening materials in the following fields minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting,etc.
The raw material of the screen machine could be sand, coal, iron ore,limestone, flouspar, granite, silica sand, etc.

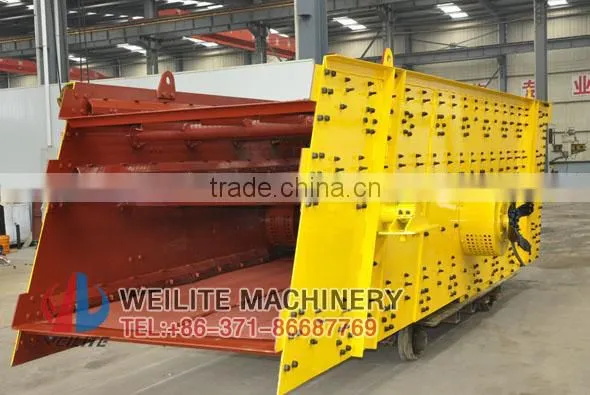

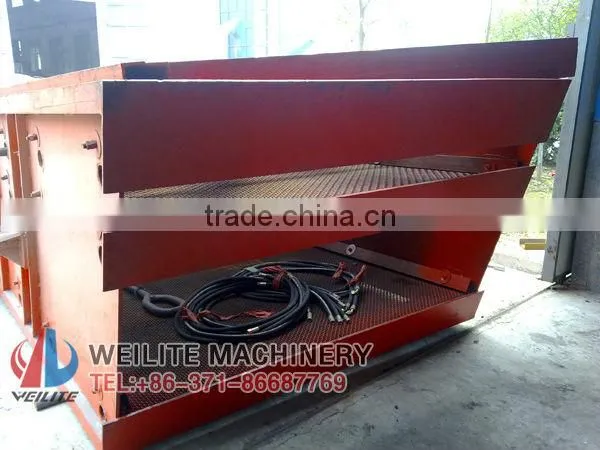

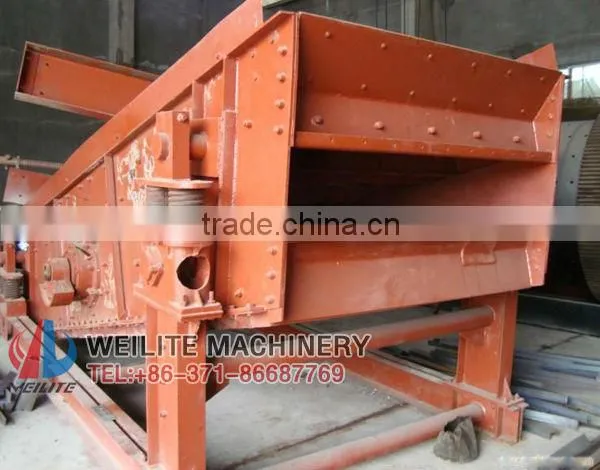

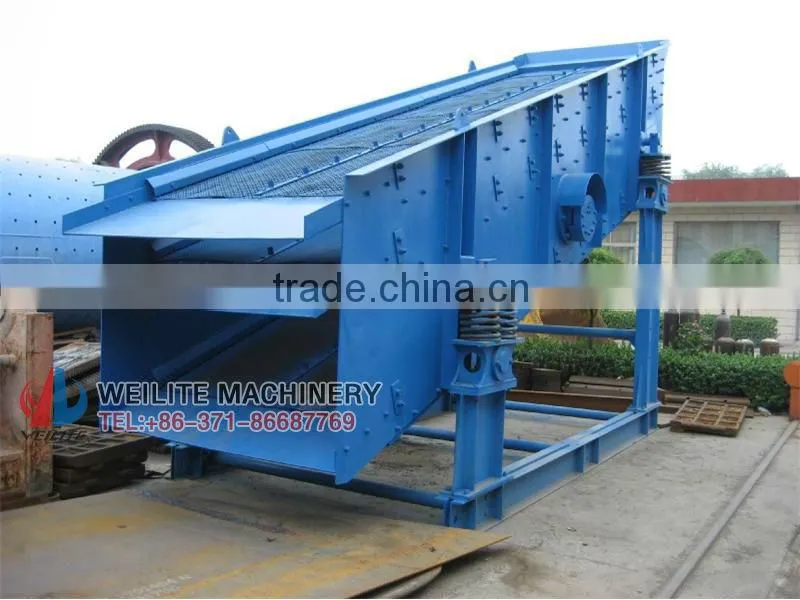

1).Dry Sand Screen Machine Picture

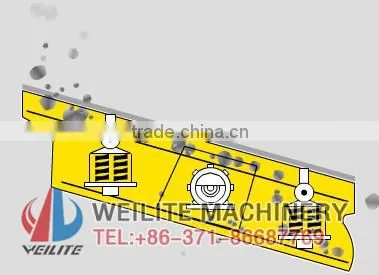

2).Dry Sand Screen Machine Working Theory
Dry Sand Screen Machine moves in a circular motion with two or multiple layers and high efficiency.YK serial vibrating rotates through motor which based on tire coupling driving eccentric plate, generate exciting force make screen box driving screen mesh into circular tracking vibration pushing incoming mineral particles moving up and down through screen mesh from feed side(high tilt of angle) gradually to discharge end(low end of angle),the mineral particles whose size smaller than mesh aperture would fall into the second layer of mesh to continue screening from beating process, then products would be separated layer by layer according the different size of mesh aperture, and finished products are poured out of equipment from discharge end.

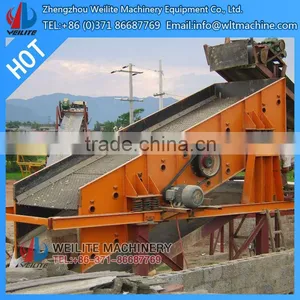

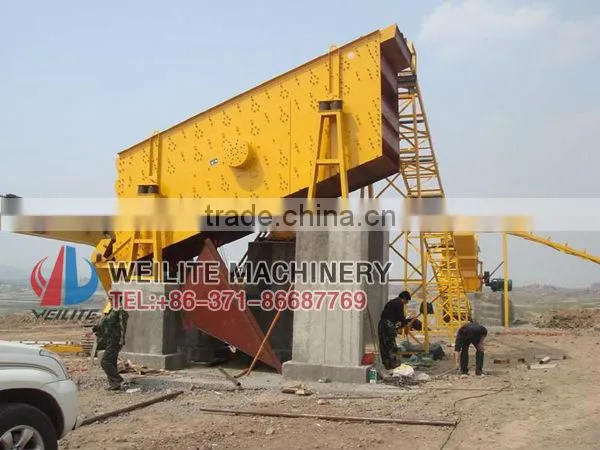

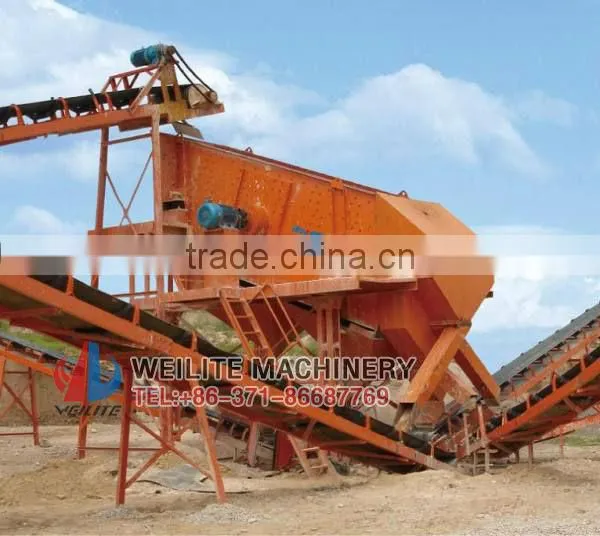

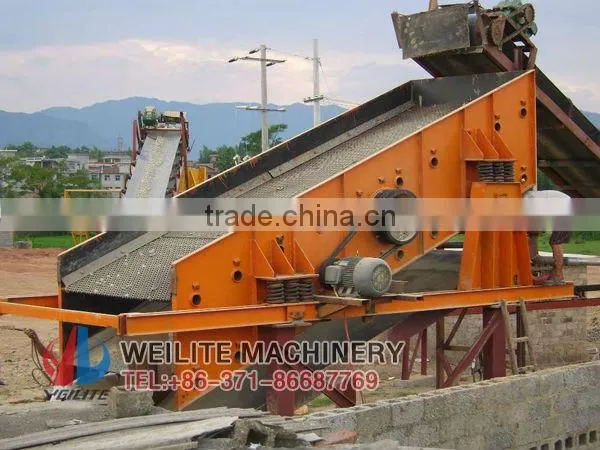

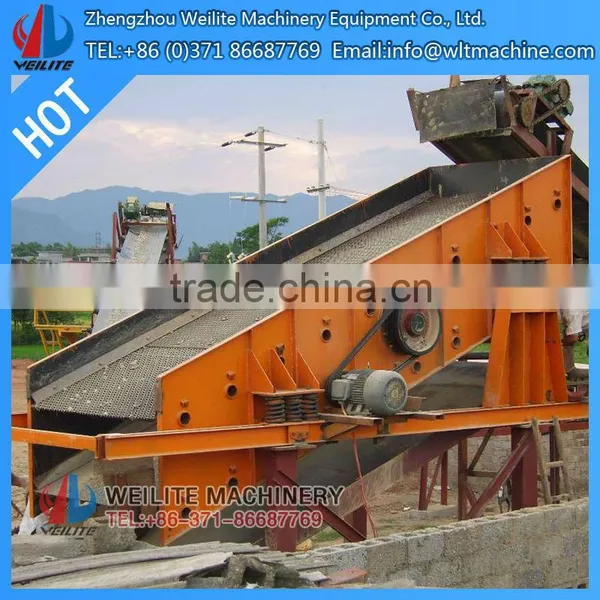

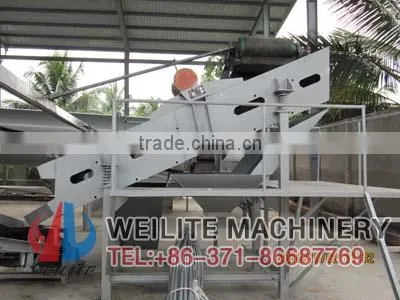

3).Dry Sand Screen Machine Installation Picture
4).Dry Sand Screen Machine Technical Data
Model |
layer |
Size(mm) |
Feeding Size(mm) |
capacity(t/h) |
Powder(kw) |
Weight(kg) |
2YK1235 |
2 |
5-120 |
≤400 |
60-210 |
5.5 |
3600 |
3YK1545 |
3 |
5-150 |
≤400 |
110-385 |
15 |
6800 |
2YK1854 |
2 |
5-200 |
≤ 400 |
200-450 |
18.5 |
8600 |
3YK1860 |
3 |
5-200 |
≤ 400 |
250-600 |
22 |
9200 |
3YK2160 |
3 |
6-200 |
≤ 400 |
300-750 |
37 |
12800 |
3YK2460 |
3 |
6-200 |
≤ 400 |
400-850 |
45 |
14100 |

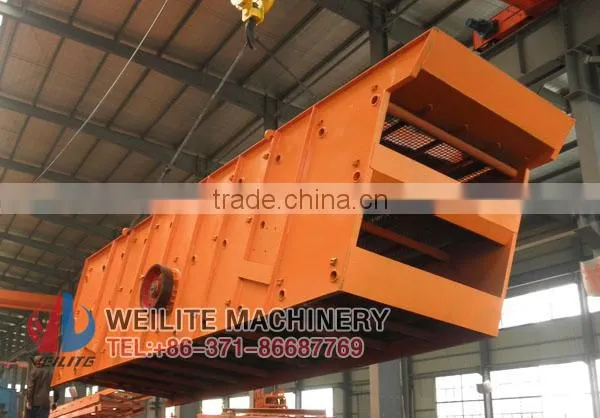

1).Dry Sand Screen Machine without Package
2).Dry Sand Screen Machine with Wooden Case Package
1).Please let me know the raw material sizes you want, capacity, raw material content. Our professional engineer will help to design it for you.
2). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machine in China. Our main products are crusher, vibrating screen, grinding mill, dryer, briquette machine and so on.
If any interest in our Dry Sand Screen Machine, please contact me for details.
