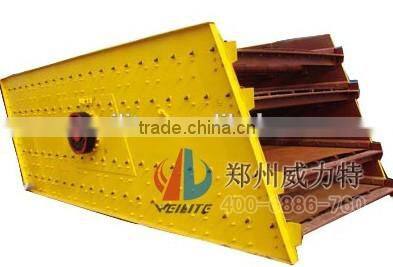

Zhengzhou Weilite Screener Machine
Screener Machine Application
It is a kind of sieving equipment and is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.
Screener Machine Working Principle
The motor via a belt to the exciter eccentric block to rotate at a high speed. Operation of the eccentric block to produce centrifugal force big, excited circular motion screen boxes have a certain amplitude, the material on the sieve screen pass by impulse in the screen surface inclination and produce a continuous casting movement, material and process of meet screen surface is smaller than the mesh screen, so as to realize the classification.
Screener Machine Technical Parameters
| Model | layer | Size(mm) | Feeding Size(mm) | capacity(t/h) | Powder(kw) | Weight(kg) |
| 2YK1235 | 2 | 5-120 | ≤400 | 60-210 | 5.5 | 3600 |
| 3YK1545 | 3 | 5-150 | ≤400 | 110-385 | 15 | 6800 |
| 2YK1854 | 2 | 5-200 | ≤ 400 | 200-450 | 18.5 | 8600 |
| 3YK1860 | 3 | 5-200 | ≤ 400 | 250-600 | 22 | 9200 |
| 3YK2160 | 3 | 6-200 | ≤ 400 | 300-750 | 37 | 12800 |
| 3YK2460 | 3 | 6-200 | ≤ 400 | 400-850 | 45 | 14100 |

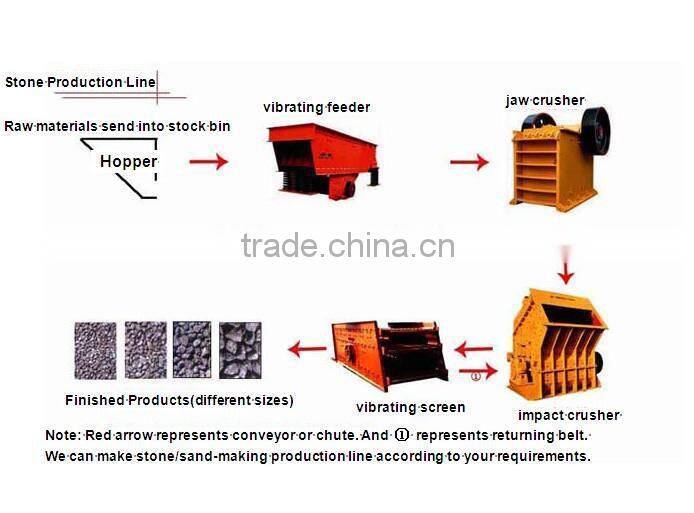

Screener Machine Production Line
Our service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
Company Introduction
Zhengzhou Weilite Machinery Equipment Co., Ltd. is an import and export oriented enterprise. Our company produces large and medium sized mining machinery.Our main products are vibrator sieves,crushers,vibrating feeders,conveyors, sand washing machines, magnetic separators and flotation machines, etc.They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
