IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200

IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 thumbnail-1
IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 thumbnail-2
IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 thumbnail-3
IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 thumbnail-4
IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 photo-1

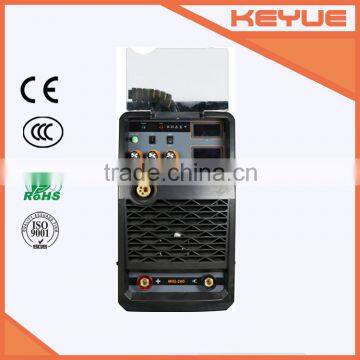

IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 photo-2
IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 photo-3

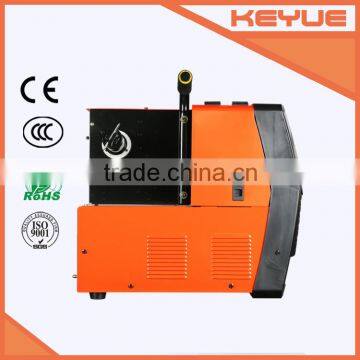

IGBT DC Inverter Single Phase High Frequency Portable and Compact CO2 Gas Tig/ SMAW /mig/mag Welder MIG-200 photo-4
US$ 288 - 320 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KEYUE
Contact Supplier Request Quote Chat Now
Keyue Welding Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai/NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name KEYUE
Model Number MIG-200
Wire Feeding Speed 2.5-16 M/min
Dimensions 610*400*605
Weight 28.5KG
Usage MIG MAG Welding
Voltage AC220V
Power(W) 6.9KVA
Certification CCC/CE/ROHS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Product Description



INVERTER CO2 GAS SHIELDED WELDING MACHINE

  • Support MMA,MIG,Lift TIG 3 functions
  • IGBT technology, the core adopts advanced IGBT inverter device
  • Suitable for welding metal plate with thickness above 0.8mm
  • Inductance control for arc stability and spatter control
  • Digital voltage and ampere meters
  • Wire size selection, do a favor to quickly matching the welding parameter
  • Over current and over voltage protections are available
  • Small splashing and great penetration
  • Energy saving- compared with the traditional SAW machine more efficient
  • Widely used in electric power, steel structure, shipbuilding and other industries
IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200
 IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200





Technical Data



Model MIG-200

Rated input voltage(V)

 1PH AC220V±15%
Rated frequency(HZ) 50/60
Rated input power(KVA) 6.9
Rated input current(A) 31
Rated output 24V/200A
Output current(A) 50-200
No-load voltage(V) 54±5

Rated duty cycle(%)

(40℃ 10min)

 40%: 200A      100%:127A
Efficiency(%) 70
Protection grade IP21
Insulation grade F
 Type of wire feeder Built-in
Net weight(KG) 28.5
Gross weight(KG) 32.5
Dimension of machine(mm) 610×400×605
Dimension of packing(mm) 630×400×610



IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200

   IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200





High quality components



IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200
   IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200

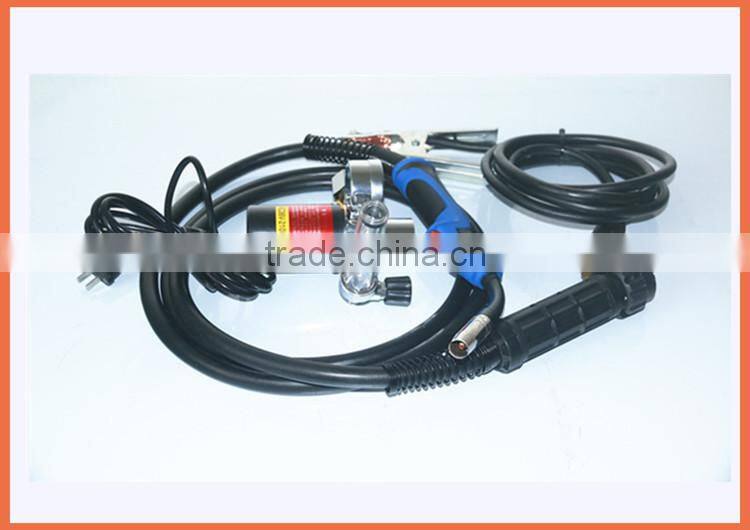

Accessories



IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200

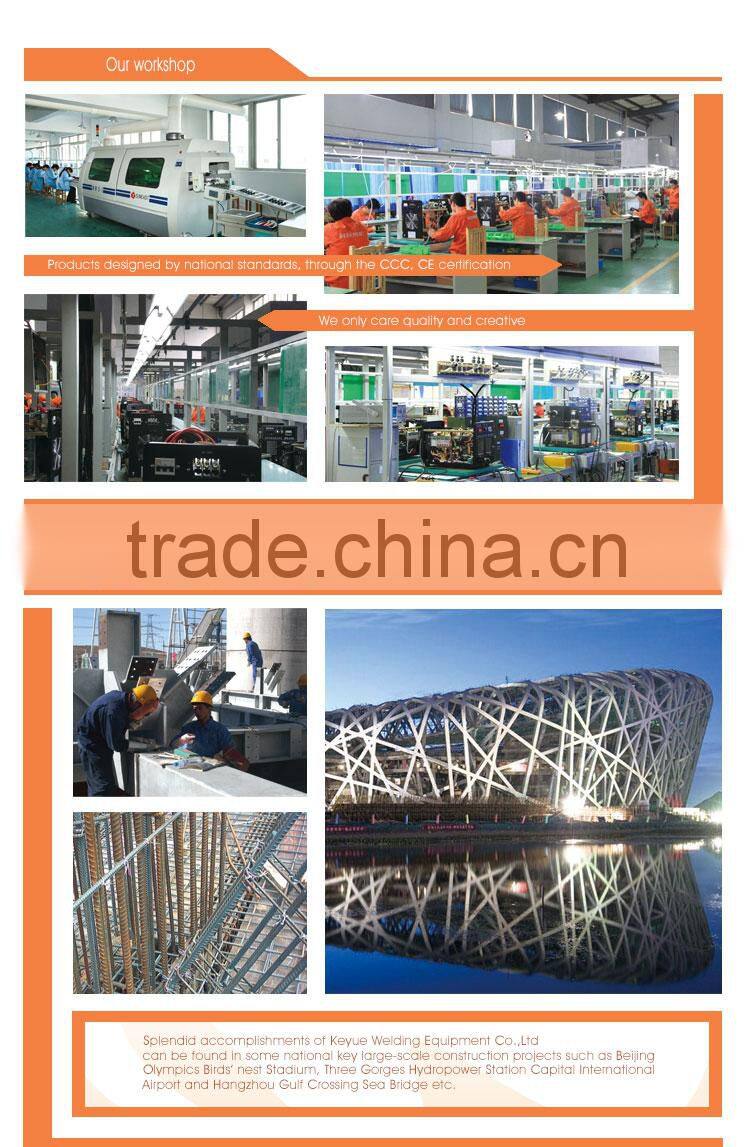

Company Information

 IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200

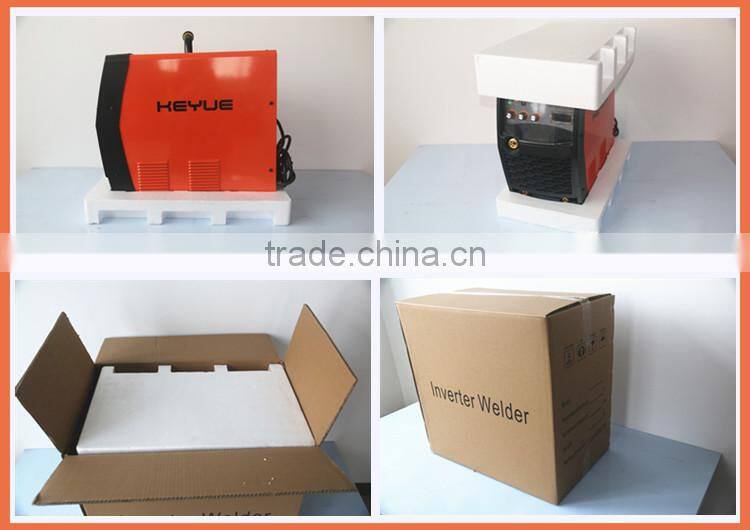

Package

 IGBT DC Inverter single phase high frequency portable and compact CO2 gas tig/ SMAW /mig/mag welder MIG-200
