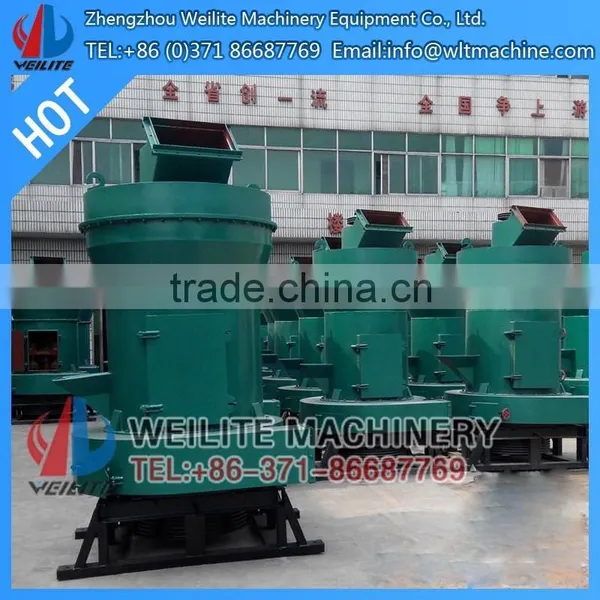

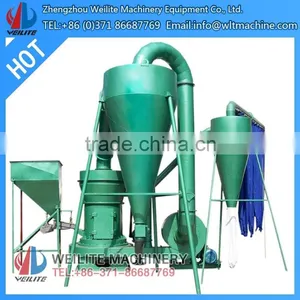

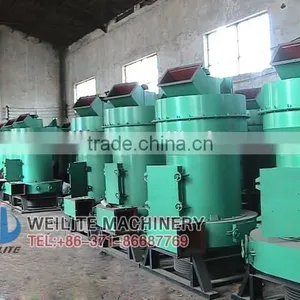

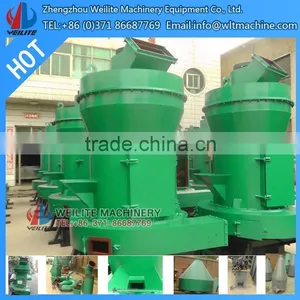

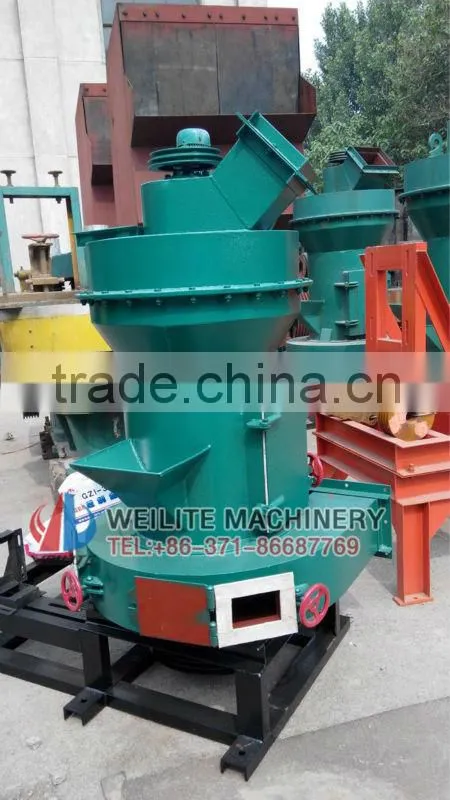

1.Barite Grinding Mill Introduction
Raymond Mill is widely used in mining industry, chemical industry and metallurgical indusry to gring material into fine powder.The raw material it could grind as follows barite,limestone,carbon black,iron ore,gypsum,coal,active carbon,etc.The finished powder can be used for oil exploitation industry
,cement retarder,water proof material manufacturing, producing abrasive material, etc.
2.Barite Grinding Mill Spare Parts

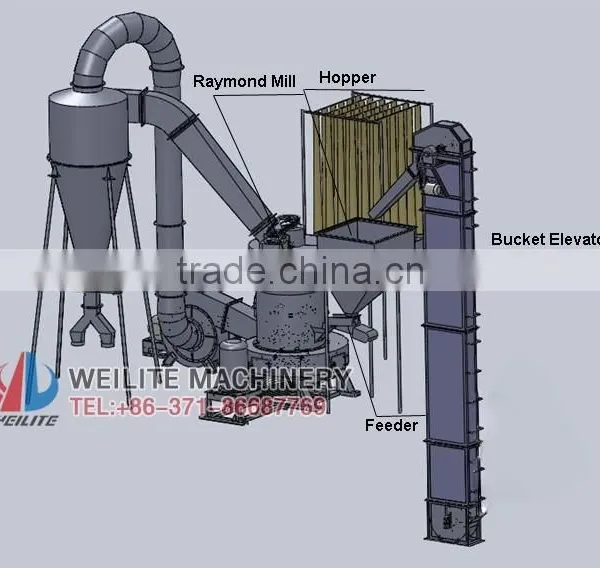

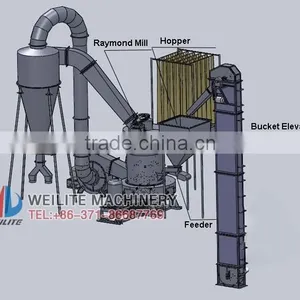

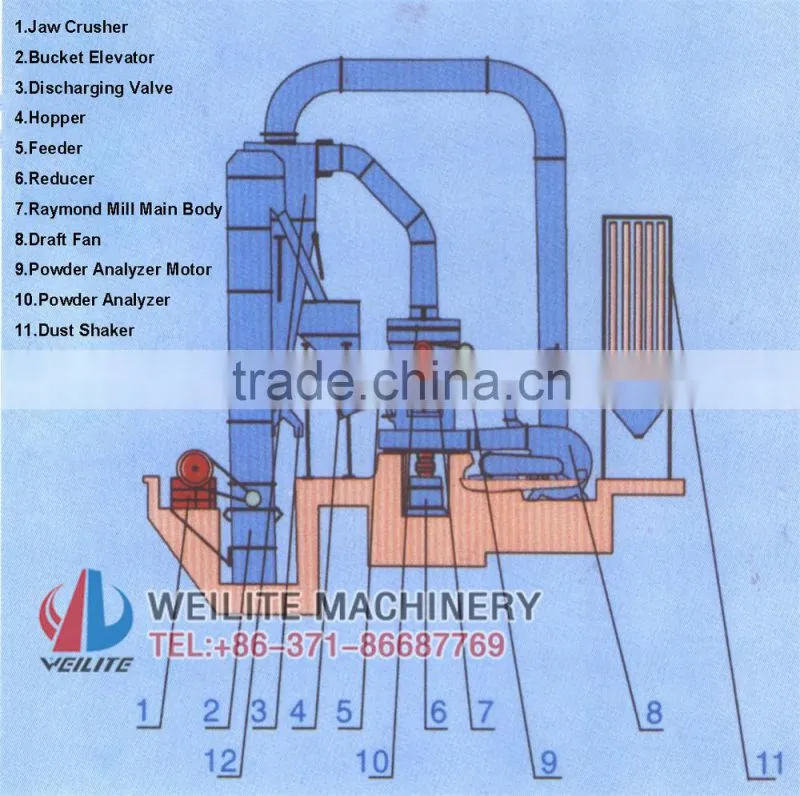

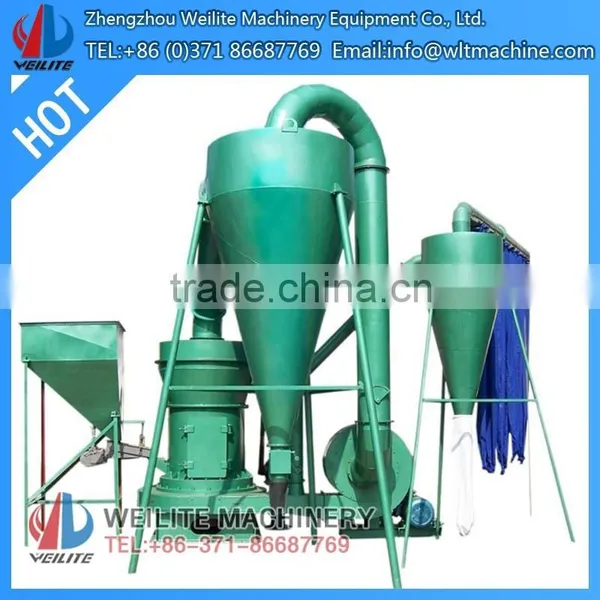

3.Barite Grinding Mill Production Line Design Drawing
Firstly,barite will be crushed by jaw crusher if size is larger than 25mm, and then the crushed barite will be elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers of raymond pulverizer oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
4.Barite Grinding Mill Production Line Machine Usage Introduction
1).Jaw Crusher: It is used to crush raw material whose size is larger than 25mm. Please let us know the raw material size. So we will help to design if you need crusher or not.
2)Bucket Elevator:It is used to carry material into storage bin.
3)Electromagnetic Vibrating Feeder: It is used to feed the material into raymond mill evenly.
4)Raymond Mill: It is used to grind material into fine powder. If you need this machine, please tell us your requirement on discharging size. So we will help to choose the most suitable machine.
5.Barite Grinding Mill Technical Data
Model |
3R1410 |
3R1815 |
3R2115 |
3R2615 |
3R2715 |
3R3016 |
4R2715 |
4R3016 |
4R3216 |
5R4119 |
|
Max feeding size (mm) |
10-15 |
10-15 |
10-15 |
15-20 |
15-20 |
20-25 |
15-20 |
20-25 |
20-25 |
20-30 |
|
Output size (mesh) |
60-325 |
|||||||||
|
Shift output (t/8h) |
1-10 |
1.3-14 |
1.5-16 |
2-24 |
2-29 |
3-34 |
2-31 |
3-35 |
3-39 |
5-66 |
|
Roller diameter (mm) |
140 |
180 |
210 |
260 |
270 |
300 |
270 |
300 |
320 |
410 |
|
Main power (kw) |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
22 |
30 |
37 |
75 |
|
Blower power (kw) |
5.5 |
7.5 |
11 |
18.5 |
18.5 |
22 |
18.5 |
22 |
30 |
75 |
|
Analyzer power (kw) |
1.1 |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
7.5 |

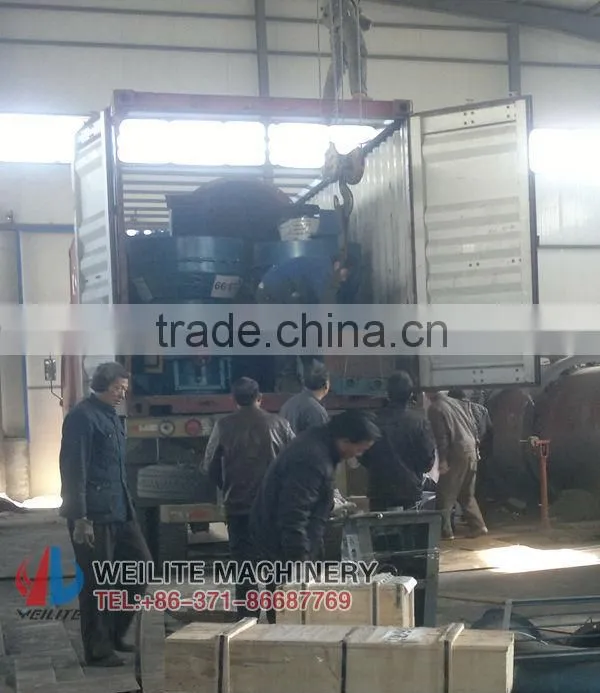

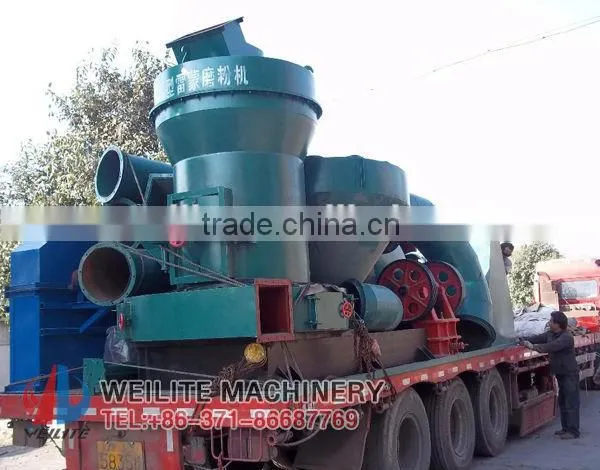

6.Barite Grinding Mill Packaging And Shipping
1).Barite Grinding Mill Full Container Load without package
2).Barite Grinding Mill Less Than Container Load with wooded case package
7.Our Services For Barite Grinding Mill
1). If any interest in our Barite Grinding Mill, please feel free to contact me and let me know your requirement on capacity,feeding material size and discharging material size.
2). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
4). If you need, we will dispatch professional engineer for installation, trail and worker training.
8.About Us--Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machine in China. Our main products are crusher, grinding mill, dryer, briquette machine and so on. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
9.FAQ About Barite Grinding Mill
1).What's the max. feeding material size for the barite grinding mill?
- Answer:25mm. If larger, crusher will be used.
2).What's the discharging material size for the barite grinding mill?
- Answer:Discharging material size varies from 125mesh to 1250mesh.
3).What kind of material can be grinded by your barite grinding mill?
- Answer:Gold, Calcium Carbonate, Calcite, Bentonite, Clay, Cement Clinker, Coal,Gypsum,Steel Slag,Iron Ore,Chrome Ore,etc.
4).Do you provide production line design service for the barite grinding mill?
- Answer:Yes, we are professional machine manufacturer. So we can provide production line design service.
If any interest in our Barite Grinding mill, please contact me for details.
Tel:+86 (0)371 86687769
Cell Phone:+86 15137145403
Contact Name:Ms. Ivy Zhang
Skype:ivyzhang2421
