Home > Products > Drying Equipment > Ore Pellet Mesh Belt Drying Machine , Wooden Pellet Mesh Belt Drying Machine , Pellet Mesh Belt Drying Machine
Ore Pellet Mesh Belt Drying Machine , Wooden Pellet Mesh Belt Drying Machine , Pellet Mesh Belt Drying Machine
- 200 Set / Sets per Month
- Shanghai Qingdao Tianjin
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Dry Cabinet | Place of Origin: | Henan, China |
Brand Name: | Weilite | Model Number: | 202/204/304/306 | Voltage: | 220v/380v/440v or customer made, 220v / 380v / 440v / custom made |
Power(W): | 3-75kw, 3-75kw | Dimension(L*W*H): | custom-made | Weight: | 10-50tons, 10-50 Tons |
Certification: | ISO9001 .2000 | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Pellet Mesh Belt Drying Machine1.Capacity:0.5-40t/h
2.Power:3-75kw
3.Dried Moisture:1-3%(adjustable)
Pellet Mesh Belt Drying Machine
About Us
Zhengzhou Weilite Machinery Equipment Co.,Ltd.is a professional mining machine manufacturer, we also offers other machines such as crusher, ball mill, rotary dryer,belt dryer,briquette machine,mixer, etc. Website: /
Introduction Of Pellet Mesh Belt Drying Machine
The Pellet Mesh Belt Drying Machine is mainly suppressed by the finished ball transfer conveyor directly to the output unit on the plate, by the upper end of the scraper conveyor plate will evenly distributed on the finished ball dryer to improve the permeability of the ball, to the drying effect.
Drying time is usually 20-30 minutes, the furnace is made of high-temperature drying of the heat-resisting steel and high temperature chain conveyor consisting of a tunnel kiln. After high temperature resistant metal mesh conveyor belt, belt into a ball in the net after 25-30 minutes of drying belt by cooling output.
Application Of Pellet Mesh Belt Drying Machine
Pellet Mesh Belt Drying Machine is a common continuous drying equipment can be widely used in the chemical, food, medicine, building materials, electronics and other industries, especially for better drying breathable sheet, strip, granular materials, for the filter cake material paste and the like, can also be pelletized or extruded pieces after the molding mechanism dried.
Advantage Of Pellet Mesh Belt Drying Machine
- Mesh belt dryer can adjust the amount of air, heating temperature, residence time, and feed rate in order to achieve the best drying results.
- Flexible network device configuration can be used with dryer mesh belt washing system and material cooling system.
- Mesh belt dryer (mesh belt dryer) Most air recycling, highly energy saving.
- Unique sub-air dryer unit, hot air distribution is more uniform, to ensure product quality and consistency.
- Heat source can be steam, oil, or gas stove matching points.
Pellet Mesh Belt Drying Machine Feature
- A small investment, quick drying speed, high evaporating intensity;
- High efficiency, high yield, good quality of product;
- Can regulate air quantity, heating temperature, residence time of materials on the dryer;
- The heat source may be steam, heat conduction oil, or gas hot air furnace.

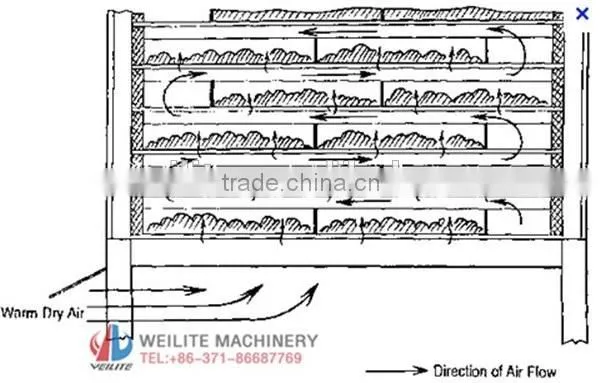

Pellet Mesh Belt Drying Machine Working Principle
Material by feeder evenly the shop on the net, net belt use 12 to 60 of the stainless steel wire mesh. There is movement transmission device drag in the dryer. Mesh belt dryer is each unit hot air circulation, independent part of the tail gas has special platoon is wet exhaust fan, exhaust valve control, the heat down to up or down through the shop on the net belt material, dry heat and moisture away. Mesh belt to move slowly, running speed can adjust freely according to the material temperature, drying after finished product continuous fell into the receiving device.
Pellet Mesh Belt Drying Machine Structure
Pellet Mesh Belt Drying Machine organic head, drying section,tail, belt, gear, into the duct, the duct, fan (hot air source another set) and other components.
Organic materials into the slowly drying head by drying, belt line speed depending on the type and moisture content of the material may be. Merry to negative pressure, porous intake to ensure effective drying area, Merry wind speed distribution, improve the drying effect. To get the best drying results and appropriate yield, moisture content of materials, wire mesh belt speed, temperature and wind with the wind must be appropriate and reasonable, organic combination.
Packing And Shipping
Technical Parameters Of Pellet Mesh Belt Drying Machine
Type | Shap(m) | Effective drying length (m/single layer ) | Power (kw) | Capacity (T/h) |
10M - Three layers | 12.5*2.44*2.96 | 10 | 2.2 | 5-8 |
20M - Three layers | 22.5*2.44*2.96 | 20 | 5.5 | 10-15 |
30M - Three layers | 32.5*2.44*2.96 | 30 | 5.5*2 | 15-20 |
10M - Five layers | 12.5*2.44*4.05 | 10 | 5.5 | 13-18 |
20M -Five layers | 22.5*2.44*4.05 | 20 | 7.5 | 20-25 |
30M - Five layers | 32.5*2.44*4.05 | 30 | 7.5*2 | 25-30 |
Our Service
1) Pre-sale Service:
Suitable-design products and reasonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
Contact Us
If any need, please contact me for details. Website: /
Contact Us
- Zhengzhou Weilite Machinery Equipment Co., Ltd.
- Contact nameXinchao Bai
- Phone86-371-86687769
- AddressZhujiang Road,Xushui Industrial Park,Zhengzhou,Henan,China(Mainland) Zhengzhou,Henan
