Home > Products > Drying Equipment > Organic Wast Dryer / Biomass Dryer
Organic Wast Dryer / Biomass Dryer
- 120 Set / Sets per Month
- Qingdao Shanghai Guangdong or other inland custom ports
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Weilite | Model Number: | ZTH series | Voltage: | 220v or custom-made |
Power(W): | 3-75(kw) | Dimension(L*W*H): | Varies from machines to machines | Weight: | 2.9-104.9(t) |
Certification: | ISO9001:2000 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Organic Waste Dryer
Product Description of Organic waste dryer
1) Structure of Organic Waste Dryer

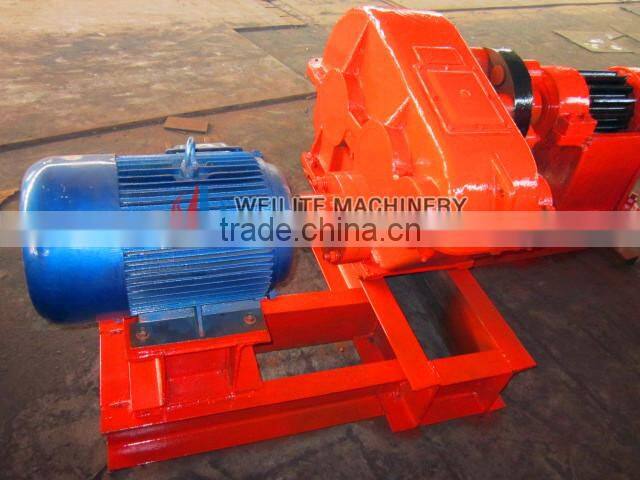

Organic waste dryer consists of rotary body, lifting blade, driving device, supporting device and sealing ring.
2) Application of Drum Rotary Sawdust Dryer
Drum rotary sawdust dryer is mainly used in cow manure,chicken manure, wood chips, chemical, metallurgy, building materials, mining and other industries granules, powder drying.

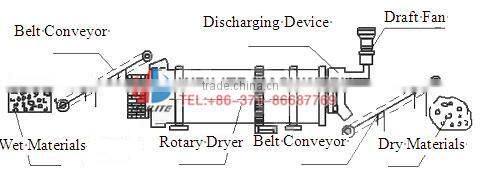

3) Working Principle of Organic Waste Dryer
Wet material is loaded from one end of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the rotary sugar
dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the drier.
Main Technical Parameters of Organic Waste Dryer
Model (mm) | Inclination (%) | Rotate speed (r/min) | Air inlet temperature (°C) | Power (KW) | Production capacity(t/h) | Weight (t) |
Φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
Φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
Φ800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
Φ1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Φ1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Φ2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Φ2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Φ3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
Φ3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
Some spare parts are packaged in wooden or iron box and the main machine will be bulk in the container.
Our Service
1). If any interest on our machine, please feel free to contact me and let me know your requirement on capacity and material size.
2). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3). Whole plant design and drawings are free after set order.
4). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5). If you need, we will dispatch professional engineer for installation, trail and worker training.
1. What is the heating resource for the machine?
- Wood chips, gas, coal and other solid fuels.
2. Do you provide custom-made service?
- We are manufacturer, so the machine can be designed as your wish.
3. How is the machine price?
- We can provide the machine at the factory prices.
Company Profile
Zhengzhou Weilite Machinery Equipment Co., Ltd. is a manufacturer and exporter oriented enterprise, has more than 10 years experience on manufacturing mining machine in China. Our company produces large and medium-sized mining machinery, metallurgical equipment, building materials, main products are dryer, crusher, briquetting machine etc.All of them have enjoyed great popularity in world markets.
Note:
With over 30 years manufacturing experience. Our factory are ready to serve you now !
If you want to know more details or any other related machines, please don't hesitate to contact me!
Contact Us
- Zhengzhou Weilite Machinery Equipment Co., Ltd.
- Contact nameXinchao Bai
- Phone86-371-86687769
- AddressZhujiang Road,Xushui Industrial Park,Zhengzhou,Henan,China(Mainland) Zhengzhou,Henan
