Home > Products > Drying Equipment > Briquette Dryer / Charcoal Drying Oven

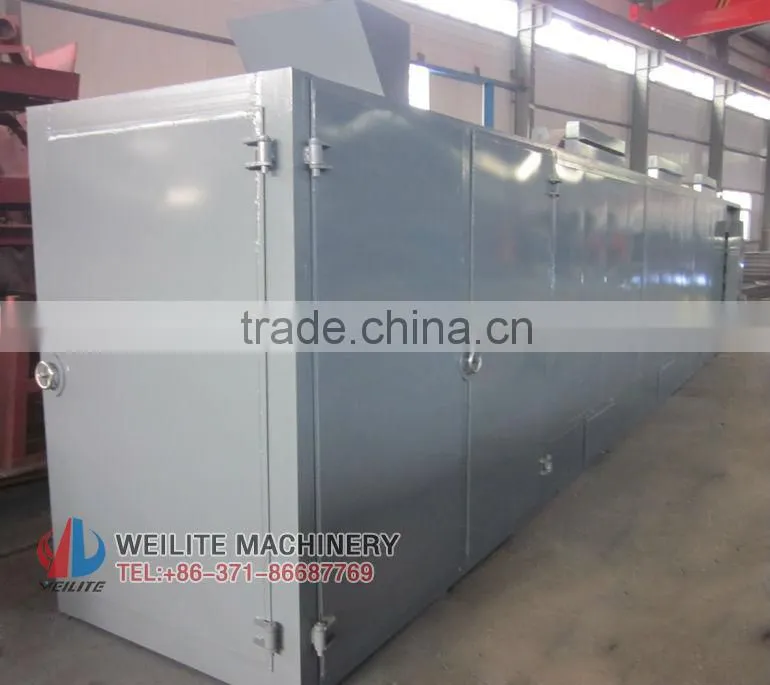

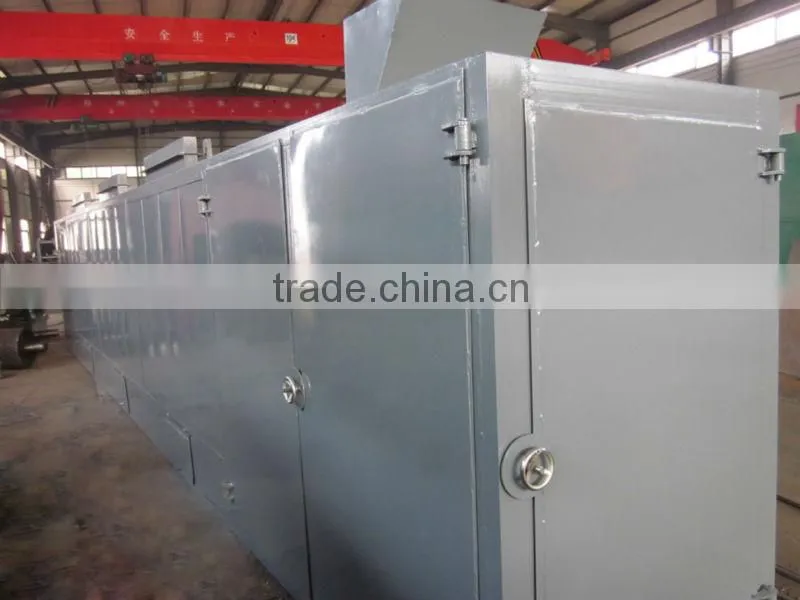

Briquette Dryer / Charcoal Drying Oven
- 120 Set / Sets per Month
- Qingdao China. Main China ports
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Drum Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Weilite | Model Number: | WDH | Voltage: | 220V-380V |
Power(W): | 3-75kw | Dimension(L*W*H): | 600X6000 | Weight: | 2.9-104.9t |
Certification: | ISO9001:2000 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Charcoal Drying Oven
1. Introduction of charcoal drying oven
Charcoal drying oven is a continuous drying equipment.The machine is used for drying the piece, strip and particle shape materials with good ventilation. The machine is suitable for the materials, such as dewatering herbal traditional Chinese medicine and others, for which the water content rate is high and high temperature is not allowed. The machine owns advantages that its drying speed is fast, the evaporation strength is high and the product quality is good.watering filtering cake state paste material, after granulating it to strip-type, could be dried also. The machine manufactured by our factory has good quality and resonable price.
2.Application of charcoal drying oven
Belt dryer could als be used for drying briquettes in coal / charcoal briquettes and wood pellet production line. It has the character of high efficiency, low destory percentage, stable performance, etc.
3.Features of charcoal drying oven
1.Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2.The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3.Most air is recycled to realize saving energy
4.The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5.Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.
4.Main technical parameter of charcoal drying oven
Type | WDH0.8x8m-3 | WDH1x20m-3 | WDH1.5x20m-3 | WDH2x20m-3 | WDH1.5x30m-5 |
Length(m) | 8 | 20 | 20 | 20 | 30 |
Layer | 3 | 3 | 3 | 3 | 5 |
Mesh Belt Width(m) | 0.8 | 1 | 1.5 | 2 | 1.5 |
Moisture before drying(%) | 8%-12% | 8%-12% | 8%-12% | 8%-12% | 8%-12% |
Moisture after dried(%) | 1%-3% | 1%-3% | 1%-3% | 1%-3% | 1%-3% |
Power(kw) | 3 | 2.2x3 | 3x3 | 4x3 | 5.5x5 |
Drying Temperature(°C) | 70-300 | 70-300 | 70-300 | 70-300 | 70-300 |
Capacity(T/H) | 2 | 10-15 | 20-30 | 35-50 | 55-60 |
5.Working principle of charcoal drying oven
Charcoal Drying Oven is horizontal dryer with multi-section combination, this dryer is mainly used for drying in humidity state when the intensity is not high pellet or ball. The length of a dryer is according to the humidity and the output of the material. Material feed from the top and run back and forth from the top down to the Discharge port at the bottom of the drying box.Drying time for 15% humidity coal ash briquettes is approximately 90-120 minutes, customer can adjust the conveyor speed according to the humidity requirement of the finished ball, belt speed is adjustable in order to achieve good product quality.

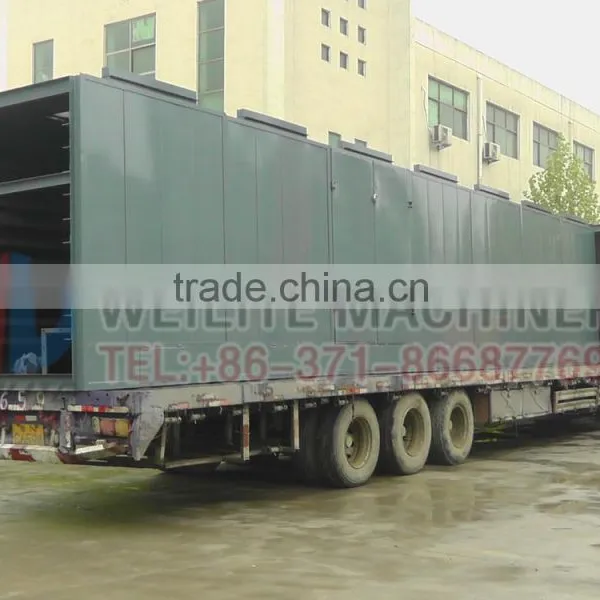

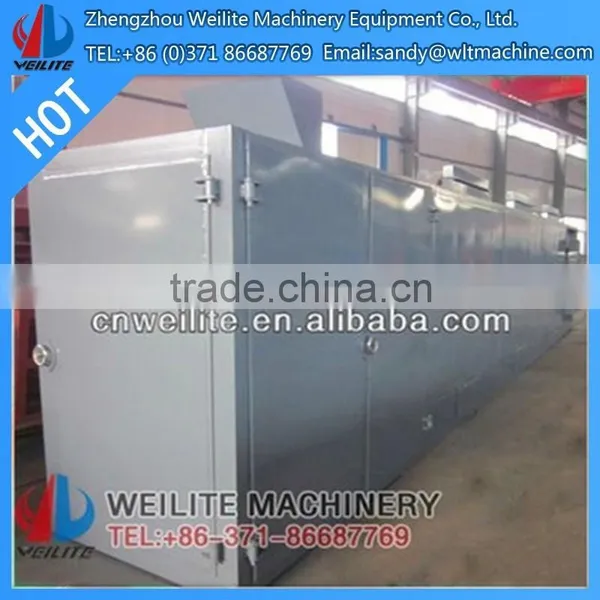

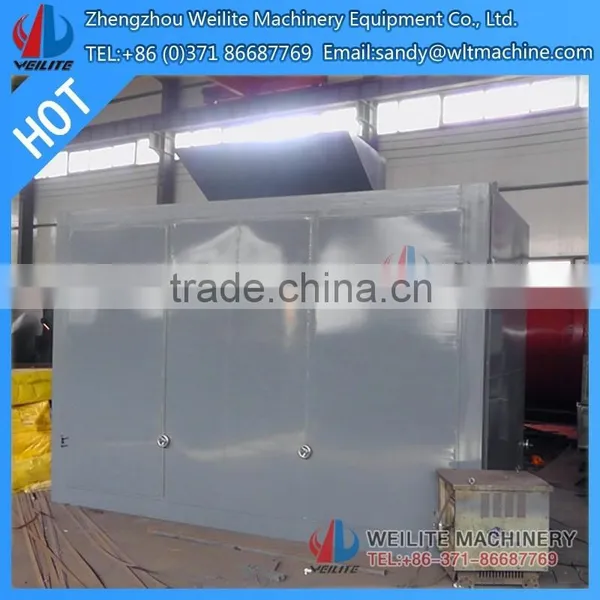

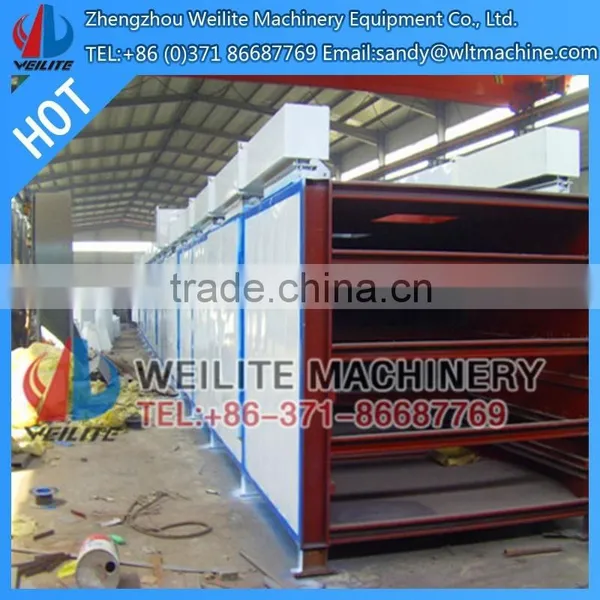

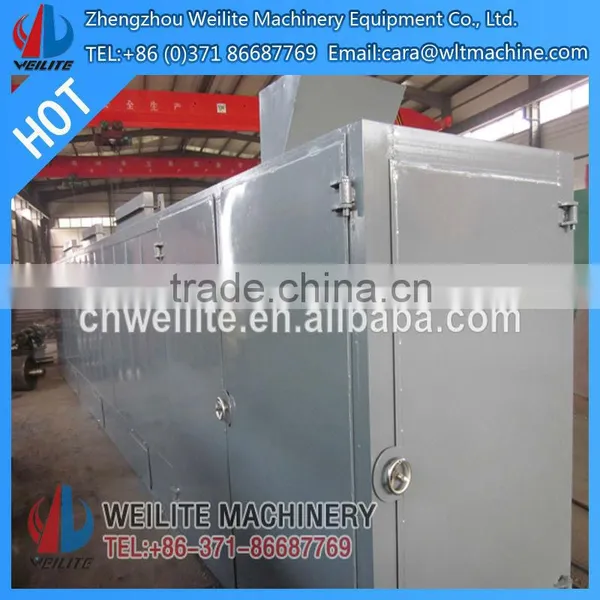

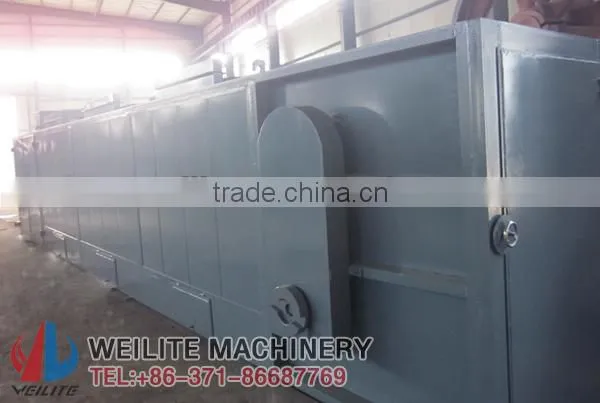

6.More pictures about charcoal drying oven
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
1.Bare the the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirement.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /. Welcome to visit and purchase from us.
1.What's the raw material that can be dried?
Answer:Any kind of chips and lump material can be dried by our machine.
2.What kind of fuel can be used with the dryer?
Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3.What's the drying type of your belt dryer?
Answer:Hot Air Drying Type.
4.Is the belt speed adjustable?
Answer:Yes.
5.Can we adjust the drying temperature?
Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
