Specifications
coal powder rotary dryer1)professional design
2)low energy consumptoin
3)simple structure
Coal Powder Rotary Dryer
1.Introduction of coal powder rotary dryer
The rotary dryer is a type of drying machine used for reducing the mositure of raw material.The rotary dryer is widely used for drying the chalk slag, coal, lignite, slurry,coal powder,charcoal, charcoal powder, slag, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary drum dryer has a better adaptability and can dry various materials with a simple and reliable operation.
2.Features of coal powder rotary dryer
a.Dryer anti-overload, large capacity, low fuel consumption.
b.The downstream drying, smoke and wet material from the same side of the dryer, high temperature gas to high evaporation, dryer outlet temperature, high thermal efficiency.
c.According to different material properties to change the operating parameters, so that the material to form a stable full cut fabric curtain in the dryer cylinder body, the quality of heat exchange more fully.
d.The new feeding, nesting devices, put an end to the drum dryer feed plug, discontinuous, uneven, and returning materials such phenomena, reducing the dust load.
3.Main technical parameters of coal powder rotary dryer
|
Model (mm) |
Gradient (%) |
Rotational (r/min) |
Inlet Air temperature |
Power (kw) |
Production capacity (t/h) |
Weight (t) |
600*6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
800*8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
800*10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
1000*10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
1200*10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
1200*12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
1500*12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
1800*12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
2200*12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
2200*18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
2200*20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
2400*20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
3000*20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
3000*25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |
4.Working principle of coal powder rotary dryer
This product uses the sleeve sets out the structure can be doubled to reduce the length of the dryer, due to significant reduction of the cooling surface, resulting in decreased heat consumption, while doubling the heat exchange surface to greatly enhance thermal efficiency. Materials that can not touch tobacco, multi-drum rotary dryer provided in the inside and outside the cylinder, respectively, within the smoke pipe and circular pipe, the flue pipe of communication between the radial, the same energy efficient. It is obvious that on the hot and cold media in terms of material, this machine is a sleeve-type rotary cooler.

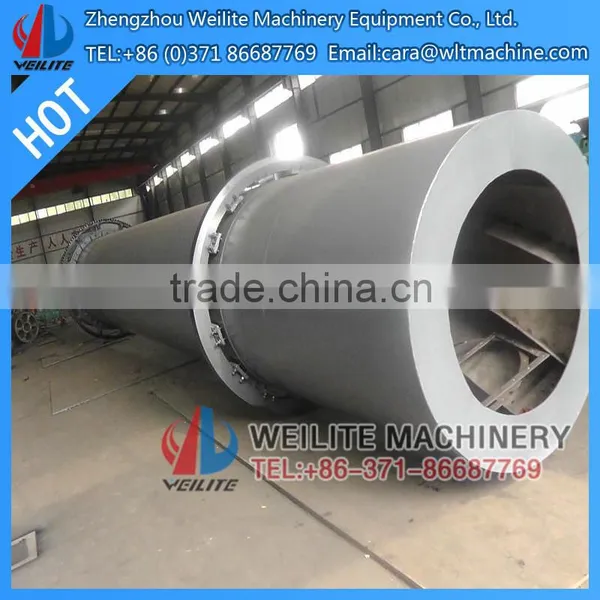

The whole structure of coal powder rotary dryer

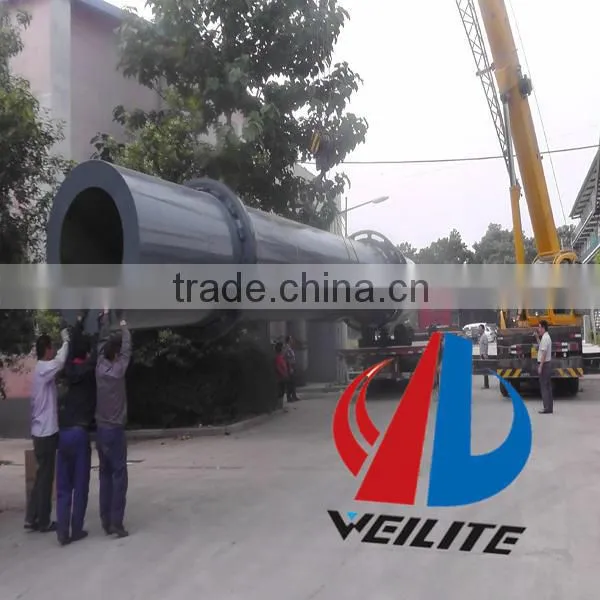

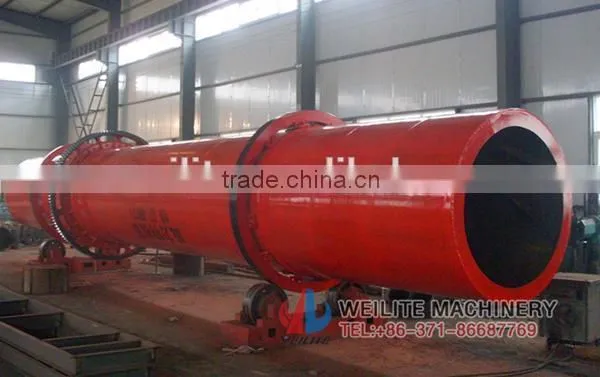

5.More pictures about coal powder rotary dryer
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
1.Bare the the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirement.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1.What's the raw material that can be dried?
Answer:Any kind of meal and mineral material can be dried by our machine.
2.What kind of fuel can be used with the dryer?
Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3.What's the drying type of your dryer?
Answer:Hot Air Drying Type.
4.Can we adjust the drying temperature?
Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
