Help CenterTop Quality Continuous Working Charcoal Briquette Dryer
Related Products
-
Hot Selling Professional Industry Dryer For CementUS$ 5,000 - 168,000MOQ: 1 Set -
Top Quality Chrome Sand Dryer For SaleUS$ 5,000 - 168,000MOQ: 1 Set
-
Energy Saving Chrome Sand DryerUS$ 5,000 - 168,000MOQ: 1 Set
-
Top Quality Belt Dryer Charcoal Briquette DryerUS$ 4,000 - 158,700MOQ: 1 Set
-
High Efficiency Professional Barbecue Charcoal Briquette DryerUS$ 4,000 - 158,700MOQ: 1 Set
Specifications
charcoal briquette dryer1.Capacity:0.5-40t/h
2.Motor Power:3-75kw
3.Moisture after dried:1%-7%
4.Fuel:heavy oil,gas,coal
Charcoal briquette dryer is a highly efficient drying system that can be used in different industry segments and production lines. The products include for example charcoal briquette, coal briquettes, biomass pellet other lump or solid materials. Drying temperature is adjustable according to different raw materials so it has a vast application. It has the character of high efficiency, low broken rate, stable performance,etc.
Charcoal Briquette Dryer Working Theory

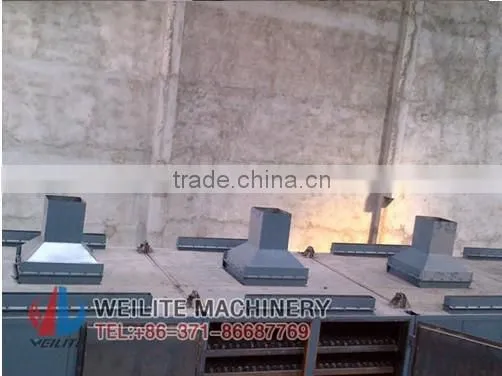

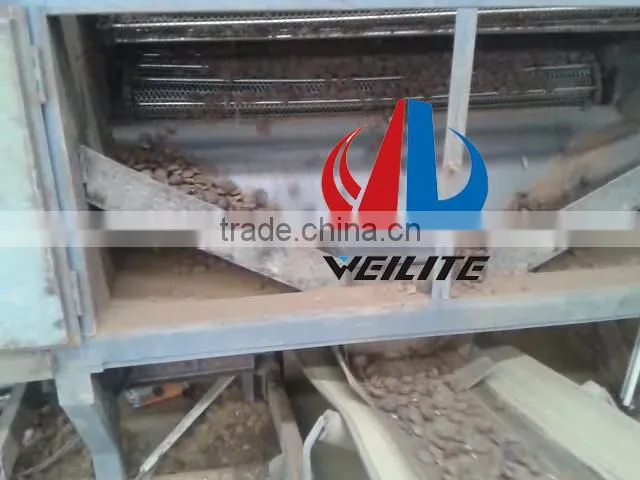

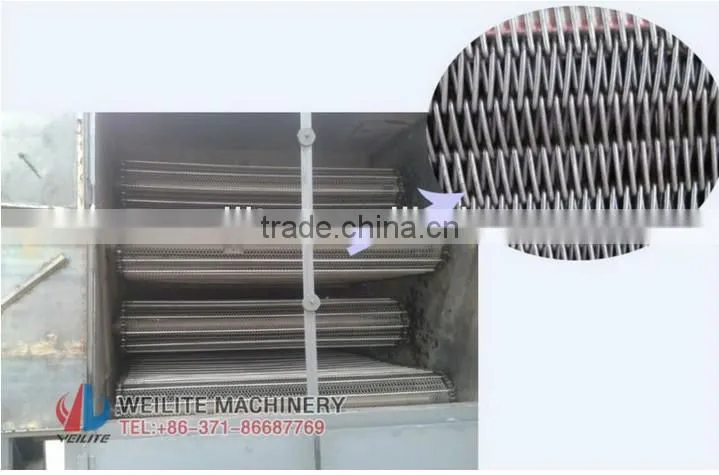

Charcoal briquette dryer is horizontal dryer with multi-section combination, this dryer is mainly used for drying in humidity state when the intensity is not high pellet or ball. The length of a dryer is according to the humidity and the output of the material. Material feed from the top and run back and forth from the top down to the Discharge port at the bottom of the drying box.Drying time for 15% humidity coal ash briquettes is approximately 60 minutes, customer can adjust the conveyor speed according to the humidity requirement of the finished ball, belt speed is adjustable in order to achieve good product quality.
Charcoal Briquette Dryer Application
Examples of Conveyor Mesh Belt Dryer Applications
- briquettes production line
-pellet production line
-other solid / powder material drying production line
Charcoal Briquette Dryer Technical Data
Type |
WDH0.8x8m-3 |
WDH1x20m-3 |
WDH1.5x20m-3 |
WDH2x20m-3 |
WDH1.5x30m-5 |
Length(m) |
8 |
20 |
20 |
20 |
30 |
Layer |
3 |
3 |
3 |
3 |
5 |
Mesh Belt Width(m) |
0.8 |
1 |
1.5 |
2 |
1.5 |
Moisture before drying(%) |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
Moisture after dried(%) |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
Power(kw) |
3 |
2.2x3 |
3x3 |
4x3 |
5.5x5 |
Drying Temperature(°C) |
70-300 |
70-300 |
70-300 |
70-300 |
70-300 |
Capacity(T/H) |
2 |
10-15 |
20-30 |
35-50 |
55-60 |
a). If any interest in our charcoal briquette dreyr, please feel free to contact me and let me know your requirement on capacity and material moisture before and after dried.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machinery in China. Our main products are crusher, ball mill, mesh belt dryer, briquette machine and so on. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
1.What kind of material can be dried by the charcoal briquette dryer?
- Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
2.What kind of fuel can be used with the charcoal briquette dryer?
- Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3.What's the drying temperature of the charcoal briquette dryer?
- Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.
4.How long will the briquettes stay in the charcoal briquette dryer?
- Answer:Normally the drying time will be about 50-120 minutes.
5.Is the belt speed adjustable?
- Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
If any interested in our charcoal briquette dryer, please feel free to contact me.
Tel:+86 (0)371 86687769
Cell Phone:+86 15639260372
Skype:ivyzhang2421
Contact Name:Ivy Zhang(Sales Manager)
