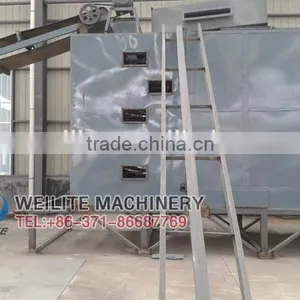

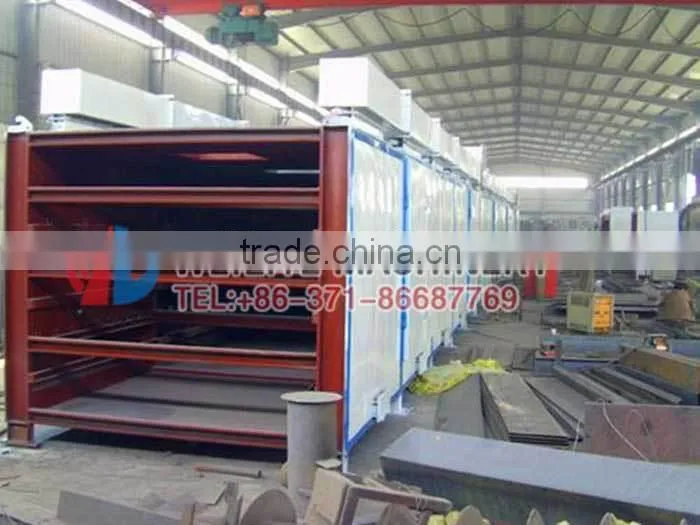

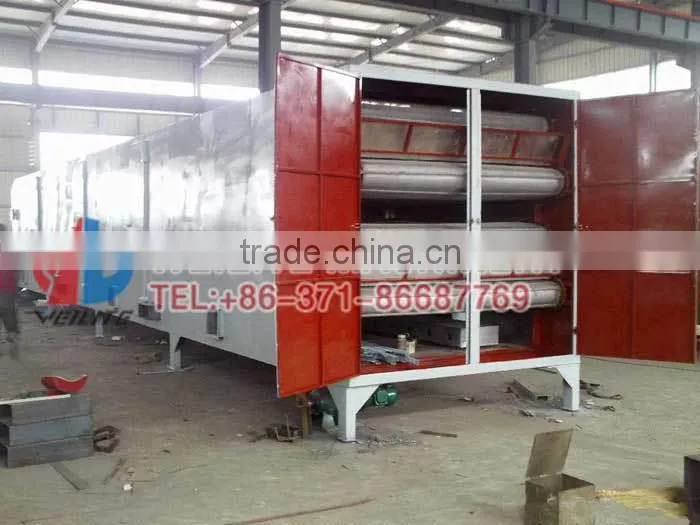

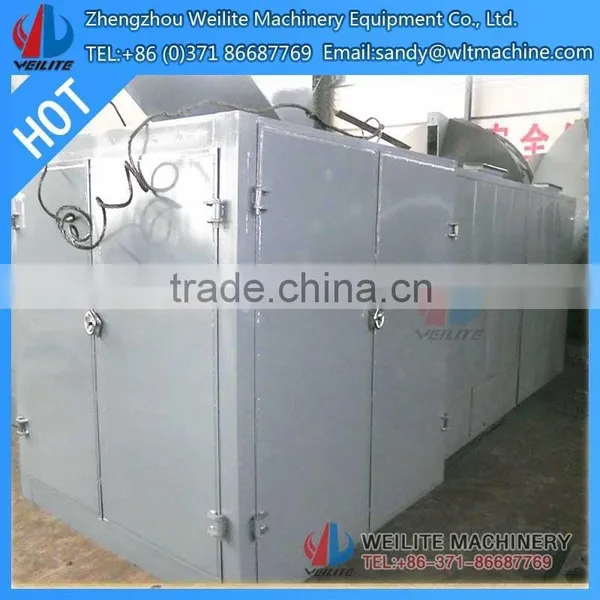

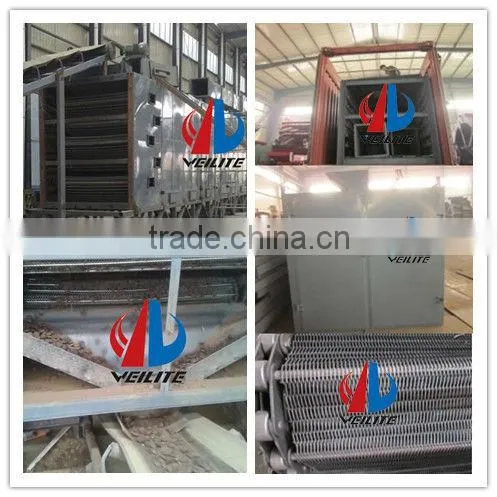

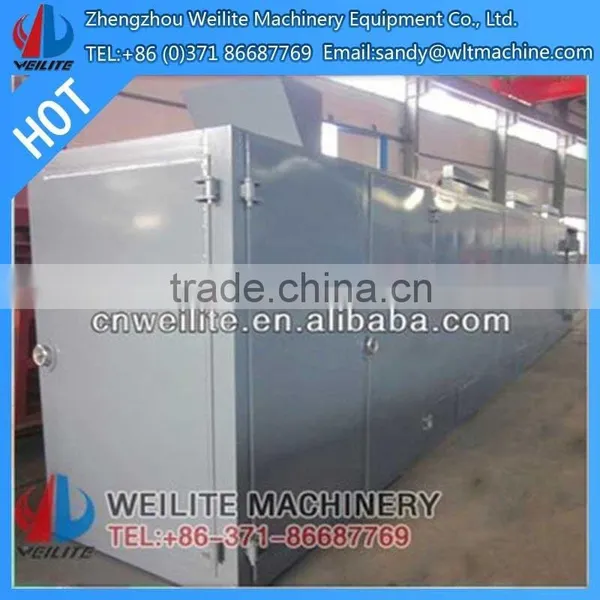

tunnel drying machine for charcoal briquettes
1.Tunnel Drying Machine For Charcoal Briquettes Description
tunnel drying machine for charcoal briquettes is also named Mesh Belt Conveyor Dryer. It is widely used to drying briquettes in coal / charcoal / carbon black / mineral powder briquettes production line. It has the character of high efficiency, low broken rate, stable performance, etc.

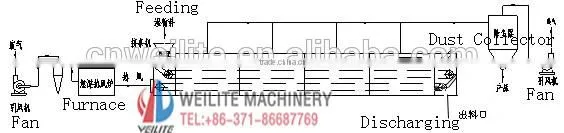

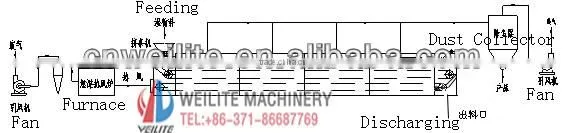

2.Tunnel Drying Machine Working Principle

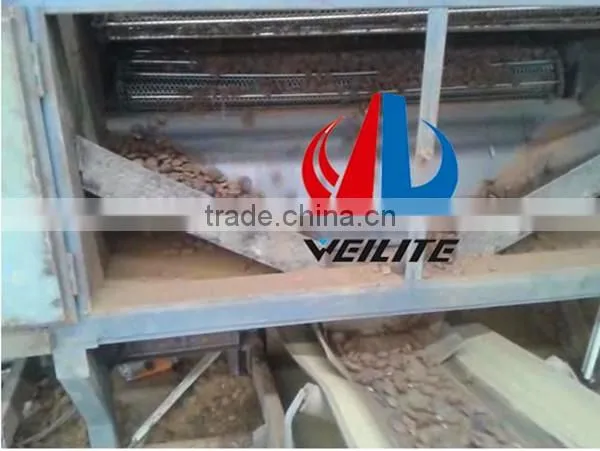

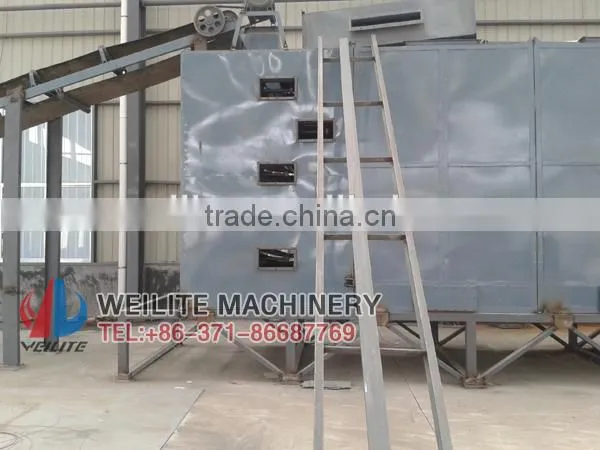

The conveyor directly transports finished balls to the pallet conveyor, and the scraping plate on the upper end of the pallet conveyor arranges these balls evenly on the dryer,improving ventilation property of balls, achieving drying effect, ensuring continuous production of all equipment.
3.Tunnel Drying Machine Technical Parameters
Type |
WDH0.8x8m-3 |
WDH1x20m-3 |
WDH1.5x20m-3 |
WDH2x20m-3 |
WDH1.5x30m-5 |
Length(m) |
8 |
20 |
20 |
20 |
30 |
Layer |
3 |
3 |
3 |
3 |
5 |
Mesh Belt Width(m) |
0.8 |
1 |
1.5 |
2 |
1.5 |
Moisture before drying(%) |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
Moisture after dried(%) |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
Power(kw) |
3 |
2.2x3 |
3x3 |
4x3 |
5.5x5 |
Drying Temperature(°C) |
70-300 |
70-300 |
70-300 |
70-300 |
70-300 |
Capacity(T/H) |
2 |
10-15 |
20-30 |
35-50 |
55-60 |

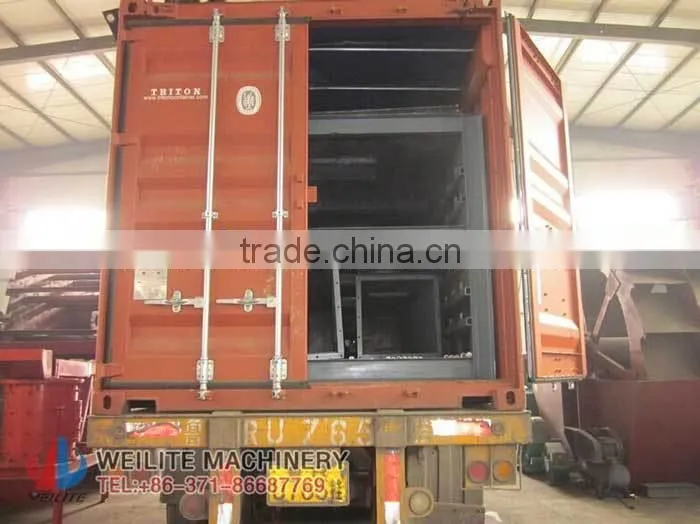

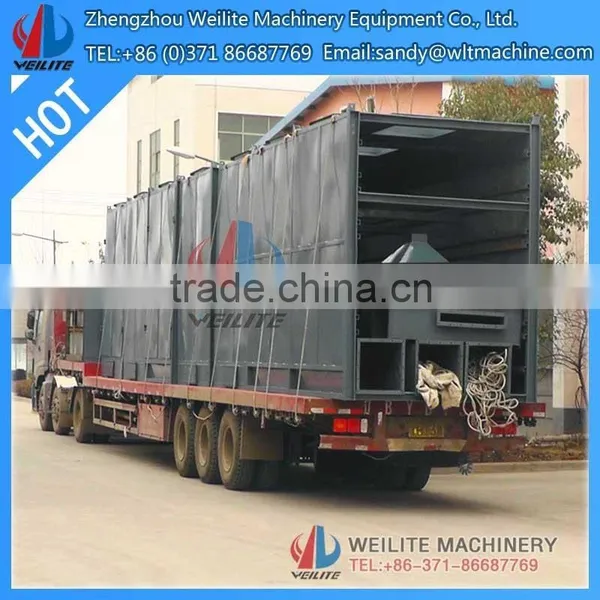

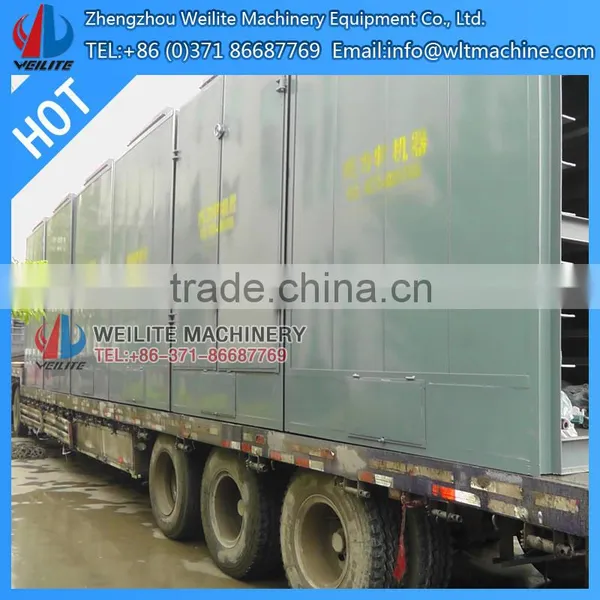

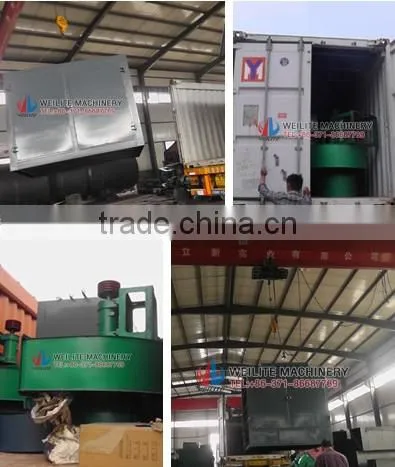

4.Tunnel Drying Machine Packaging And Shipping
5.Our Services For Tunnel Drying Machine
a). If any interest in our tunnel drying machine for charcoal briquettes, please feel free to contact me and let me know your requirement on capacity and briquette moisture.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.

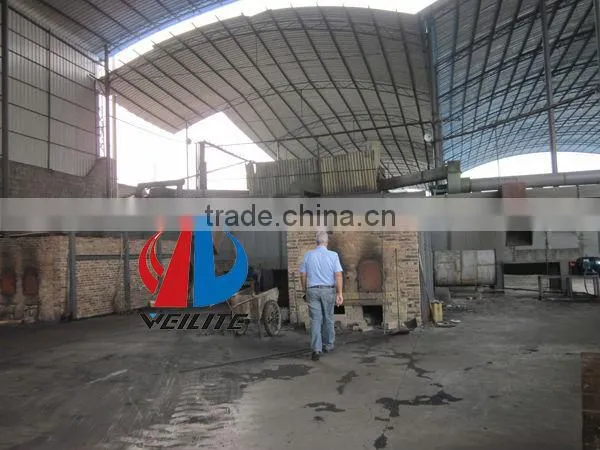

6.About Us--Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co., Ltd.is a manufactrurer of mining machinery in china.The tunnel drying machine for charcoal briquettes is one of the our main products .They are ISO9001:2000 confirmed and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us! /
7.FAQ About Tunnel Drying Machine
1).What's the raw material that can be dried?
- Answer:Any kind of chips and lump material can be dried by our machine.
2).What kind of fuel can be used with the dryer?
- Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3).What's the drying type of your belt dryer?
- Answer:Hot Air Drying Type.
4).Is the belt speed adjustable?
- Answer:Yes.
5).Can we adjust the drying temperature?
- Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
Note:
We can design the production line for you according to your requirments. If you need design service, pelase let us know your raw material moisture,finished products size and capacity.Our engineer will give you the best solution.
