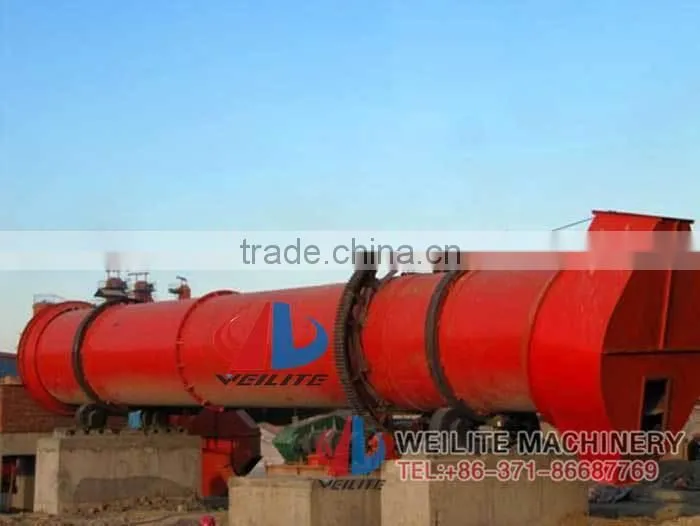

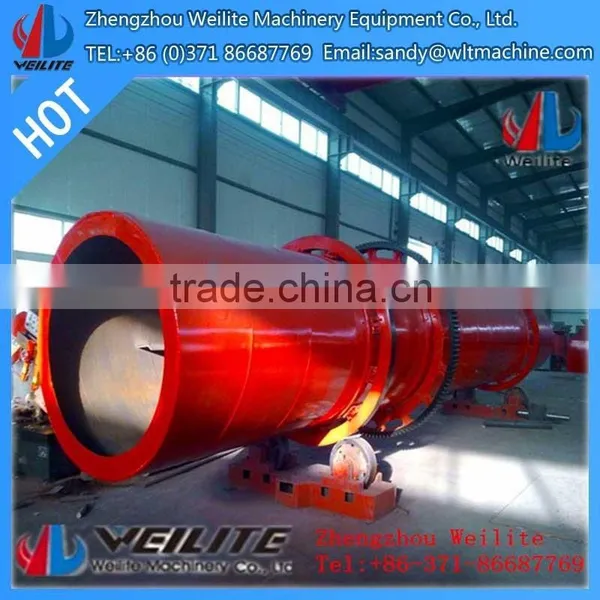

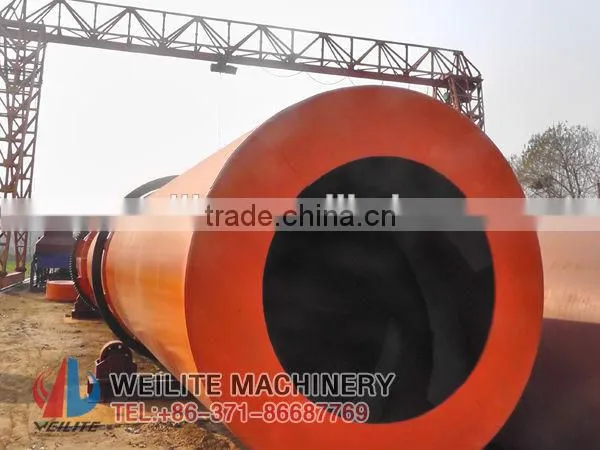

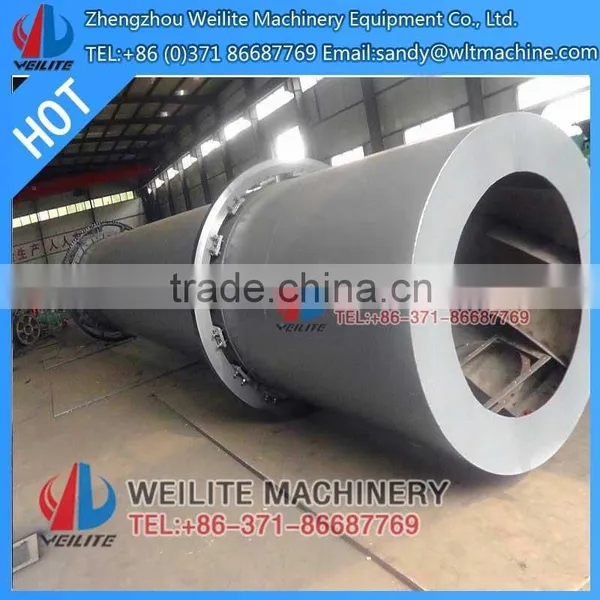

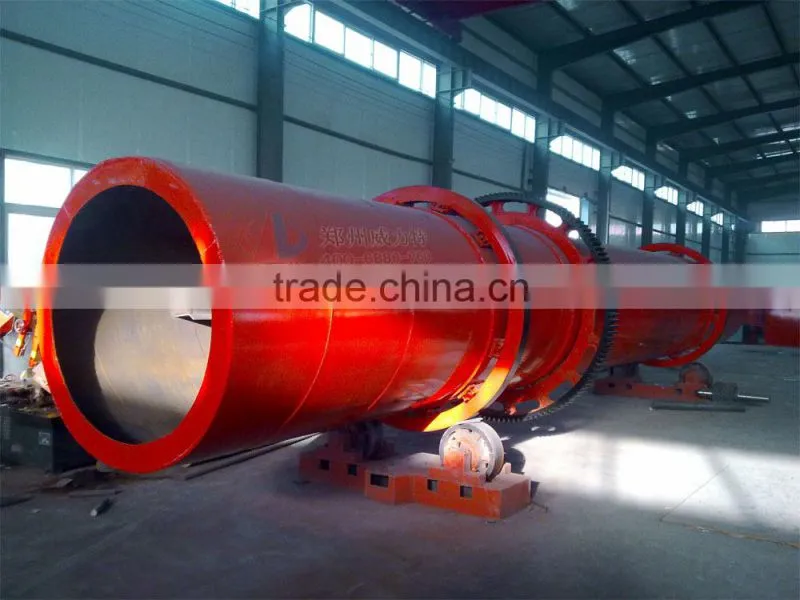

1.Coal Dryer System Description
Coal dryer system also named Rotary Dryer and Rotary Drier. It is mainly consist of rotary main body, material feeding plate, driving and supporting device,discharging device,etc.Our machine has the character of reasonale structure, high drying efficiency, low energy consumption,stable running,etc.Base on the above advantages, it is widely used in pellet production line and briquette production line,etc.

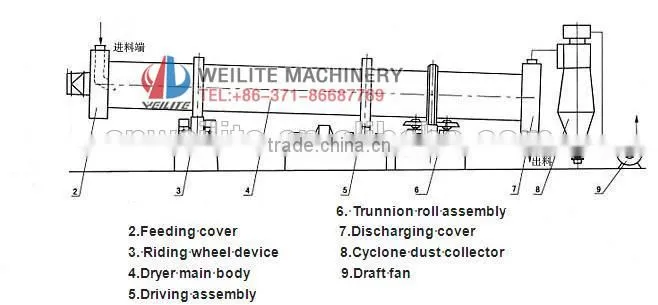

2.Coal Dryer System Installation Drawing
Coal dryer system fuel can be gas, heavy oil, electricity, coal, charcoal, lump wood, wood chips and other solid fuel. You can choose the fuel according to the cost in your market. And we will help to design the most suitable drying system for you.
3.Coal Dryer System Working Principle
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal lifting flight lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. Sand drying machine also can be widely used to dry other lump and powder materials, and it is simple to be operated.
4.Coal Dryer System Technical Parameters
Model (mm) |
Inclination (%) |
Rotate speed (r/min) |
Air inlet temperature (°C) |
Power (kw) |
Production capacity(t/h) |
Weight (t) |
Φ600x6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
Φ800x8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
Φ800x10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
Φ1000x10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200x10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200x12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500x12000 |
3-5 |
2-6 |
≤700 |
15 |
3.5-9 |
17.8 |
Φ1800x12000 |
3-5 |
2-6 |
≤700 |
18 |
5-12 |
25 |
Φ2200x12000 |
3-5 |
1.5-6 |
≤700 |
18.5 |
6-15 |
33 |
Φ2200x18000 |
3-5 |
1.5-6 |
≤700 |
22 |
10-18 |
53.8 |
Φ2200x20000 |
3-5 |
1.5-6 |
≤700 |
30 |
12-20 |
56 |
Φ2400x20000 |
3-5 |
1.5-5 |
≤700 |
37 |
18-30 |
60 |
Φ3000x20000 |
3-5 |
1.5-5 |
≤700 |
55 |
25-35 |
78 |
Φ3000x25000 |
3-5 |
1.5-5 |
≤700 |
75 |
32-40 |
104.9 |
If any interest in our raw material dryer, please let me know the raw material content, moisture before drying and your requirement on dried moisture. We will help to choose the machine type.

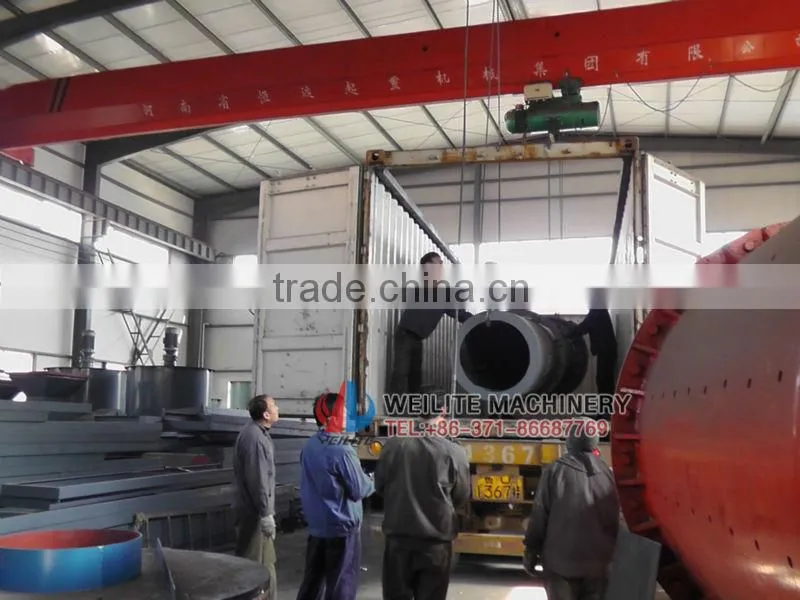

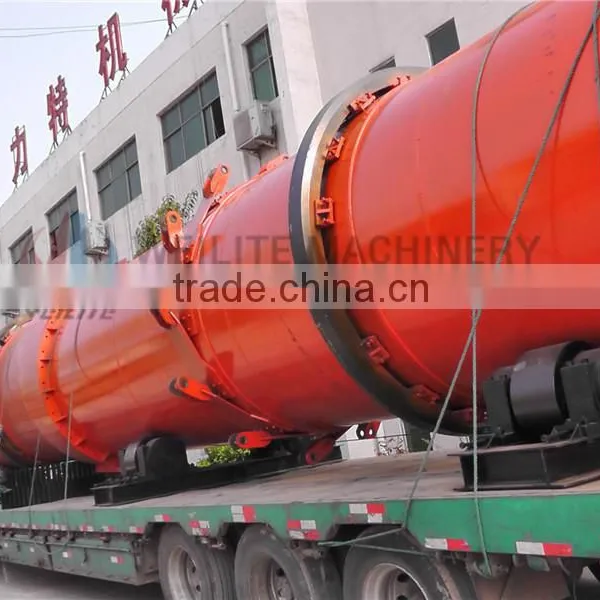

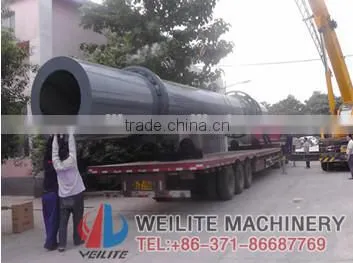

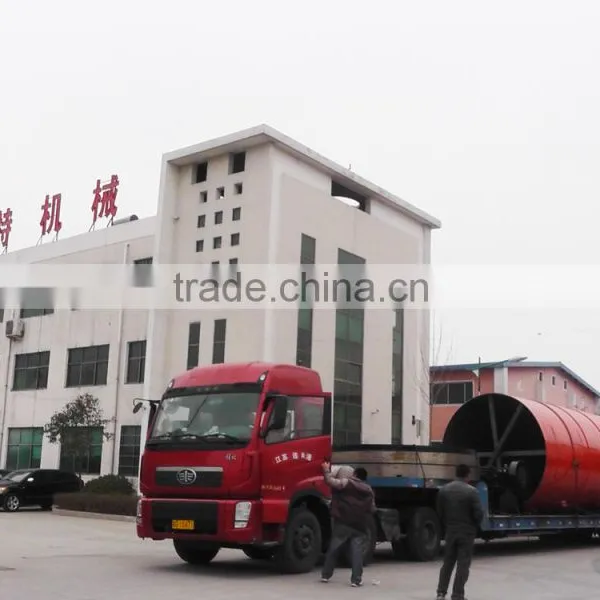

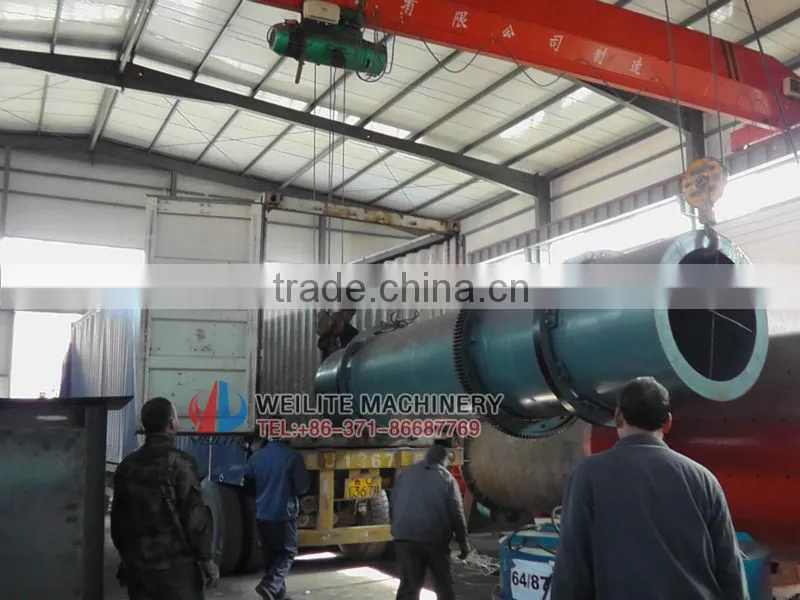

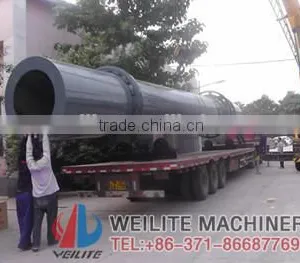

5.Coal Dryer System Packaging And Shipping
6.Our Services For Coal Dryer System
a). If any interest in our coal dryer system,please feel free to contact me and let me know your requirement on capacity and material moisture before and after dried.
b). We are professional machine manufacturer, we will help to choose and design the most suitable machine for you.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.
7.About Us--Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machine in China. Our main products are crusher, grinding mill, dryer, briquette machine and so on. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
8.FAQ About Coal Dryer System
1).What kind of material can be dried by the coal dryer system?
- Answer: Nearly all kinds of lump, powder and chip material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
2).What kind of fuel can be used with the coal dryer system?
- Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3).What's the drying temperature of the coal dryer system?
- Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 700 °C.
4).Is it hot air drying machine?
- Answer: Yes, it is.
5).Is the drying temperature adjustable?
- Answer: Yes, it is.
If any interested in our coal dryer system, please feel free to contact me.
