Energy Saving Coal Powder Rotary Drying Machine
- 120 Set / Sets per Month
- Qingdao China. Main China ports
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Drum Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Weilite | Model Number: | ZTH | Voltage: | 220V-380V |
Power(W): | 3-75kw | Dimension(L*W*H): | 1000*600*600mm | Weight: | 2.9-104.9t |
Certification: | ISO9001:2000 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Coal Powder Rotary Drying Machine
1. Features of coal powder rotary drying machine
The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
2. The application of this coal powder rotary drying machine
The indirect heat transfer dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.
3 Performance Characteristics of coal powder rotary drying machine
1)Fast drying speed, drying area of material liquid is significantly increased after spraying;
2)In the hot air flow, moisture can be evaporated 95%-98% instantaneously, drying time only need 10 seconds to tens of seconds;
3)It is especially suitable for drying thermal sensitive materials.
4)All products are spherical particles with uniform granularity, good liquidity, good solubility, high purity and good quality.
5)Simple and stable operation, easy to control and resonable automation operation.
4. Main technical parameters
Model (mm) | Gradient (%) | Rotational (r/min) | Inlet Air temperature | Power (kw) | Production capacity (t/h) | Weight (t) |
600*6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
800*8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
800*10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
1000*10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
1200*10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
1200*12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
1500*12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
1800*12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
2200*12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
2200*18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
2200*20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
2400*20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
3000*20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
3000*25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
5. Working principle of coal powder rotary drying machine
This product uses the sleeve sets out the structure can be doubled to reduce the length of the dryer, due to significant reduction of the cooling surface, resulting in decreased heat consumption, while doubling the heat exchange surface to greatly enhance thermal efficiency. Materials that can not touch tobacco, multi-drum rotary dryer provided in the inside and outside the cylinder, respectively, within the smoke pipe and circular pipe, the flue pipe of communication between the radial, the same energy efficient. It is obvious that on the hot and cold media in terms of material, this machine a sleeve-type rotary cooler.

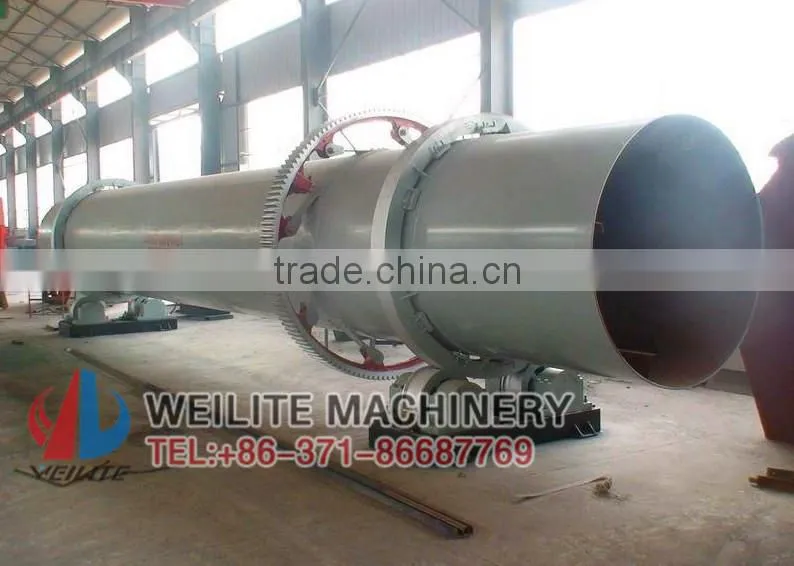

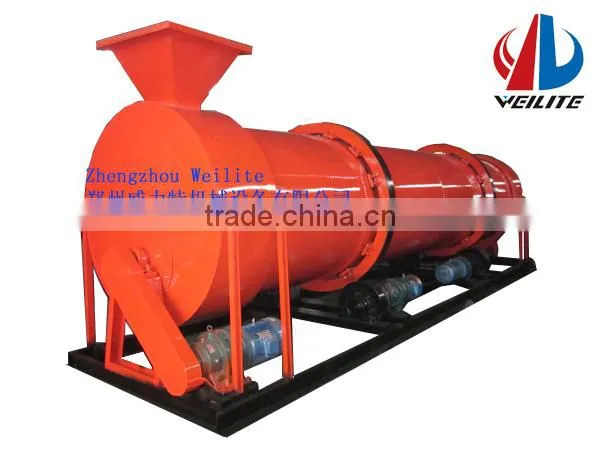

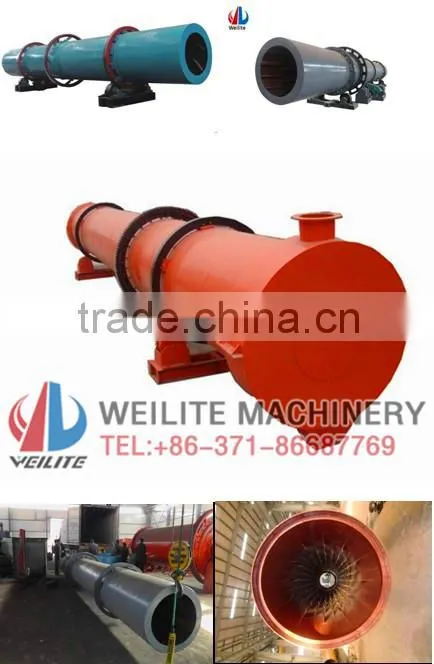

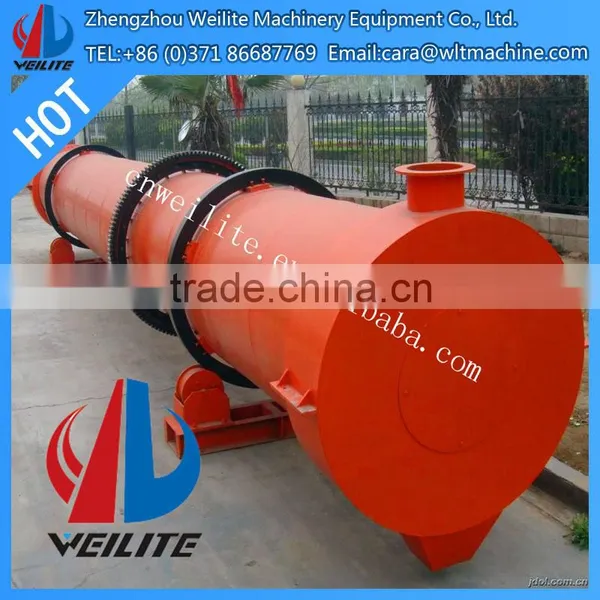

6. More pictures about coal powder rotary drying machine
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
1.Bare the the main body of the machine
2.Motors and other small spare parts are packaged in wooden cases
3.Or as your requirement.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1.What's the raw material that can be dried?
- Answer:Any kind of meal and mineral material can be dried by our machine.
2.What kind of fuel can be used with the dryer?
- Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3.What's the drying type of your dryer?
- Answer:Hot Air Drying Type.
4.Can we adjust the drying temperature?
- Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
