Turn key factory sale briquetting coal dust machine
General Description of turn key factory sale briquetting coal dust machine
Our turn key factory sale briquetting coal dust machine helps in develop high quality briquettes and waste material recycling. As a experienced turn key manufacturer, exporter, and supplier, we have the expertise to design and develop premium grade briquetting machine to assure smooth production of briquettes in varied sizes. Binder and adhesive material used should be of high quality that makes the process easier and qualitative.
And usually the diameter of briquettes is 30~60mm, with oval, pillow shape, or we can produce the mould as customers' requirements.
Application fields of the turn key factory sale briquetting coal dust machine
Refractory plant, power plants, metallurgical, chemical, energy, transportation, heating and other industries .
The working principle of turn key factory sale briquetting coal dust machine
Briquetting coal dust machine motor will pass the power on to the two pressure roller through the reducer. The two sides and roller rotation, in both the rotating direction, material fulfill the space between two rollers, with the roller rotation, pressure on material will be bigger and bigger. When the material reach the two rollers rotating line contact point, the pressure reach the peak. After press, the briquette will drop by gravity.
Main parameters of turn key factory sale briquetting coal dust machine
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |
Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |
Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||
If you are not sure does your material can be handled with this briquetting dust machine, kindly contact us directly, and please tell us the raw material? it's size and initial moisture ? the requirements to shape and size of the briquettes product ? the capacity per hour ? Then we'll know and recommend most suitable machine with all the technical data, pictures and best factory price very quick .
1. Available shapes of the briquetting coal dust machine ?
Square, oval, pillow, ball type, or customized .
2. Moisture demands of the briquetting coal dust machine ?
usually 8%-12% .
3. Sizes demands of the briquetting coal dust machine ?
less than 5mm in general .
4. With binder or not for this type briquetting coal dust machine?
With this type charcoal briquette machine,it’s up to you, with binder can enhance the cold strength and thermal intensity , if you do not need, just neglect the binder .
5. With dryer or not for this briquetting coal dust machine?
First, if the raw material is too wet (raw moisture more than 45%), then should dry the wet material before to be formed ; second, the final briquettes to be dry or not, it’s up to you as well. If the working place has not much strict requirements to the briquette’s moisture, or the device can handle the briquette directly, then there can without briquettes mesh belt dryer .

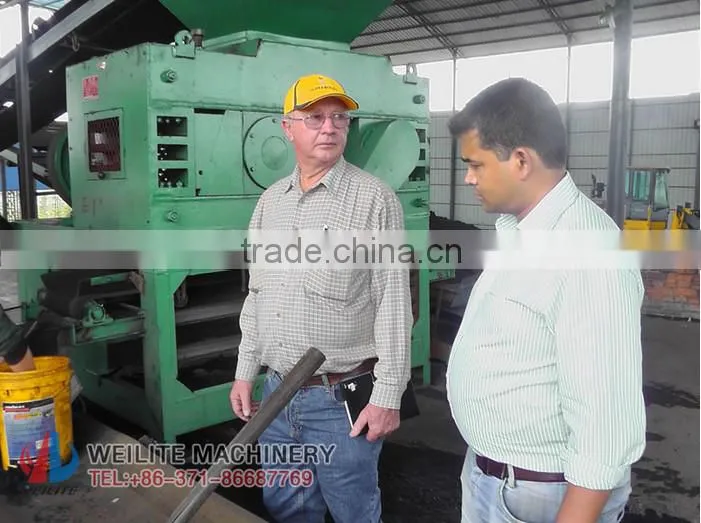

Test briquetting coal dust machine for customer

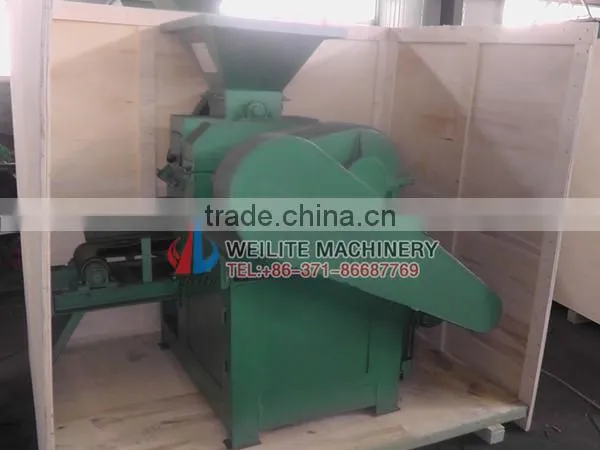

1. with wooden case: for small size coal briquetting machine, or single machine .

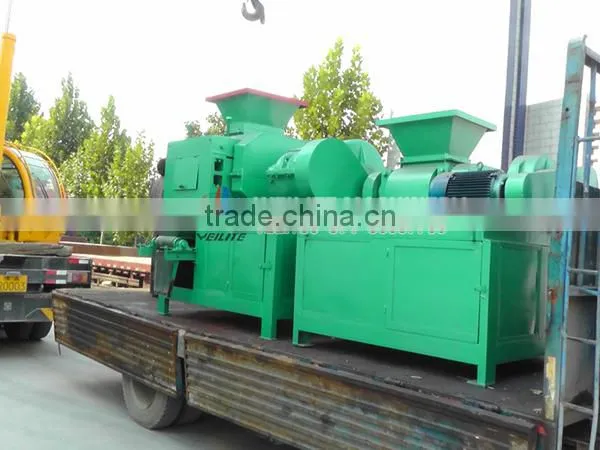

2. with container: for large size coal briquetting machine, or large quantity, or complete production line .
Briquetting coal dust machine company brief introduction
Henan province zhengzhou city weilite machinery plant is the professional manufacture for making different kinds new type briquette/briquetting machine, importing international advanced technical, use and improve the newest design concept of different machines to make more high efficiency, power saving and durable turn key factory briquetting machine .
Our service of the briquetting coal dust machine
1. If any interest on our briquette machine, please feel free to contact me and let me know your requirement on capacity and material size.
2. We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3. Whole plant design and drawings are free after set order.
4. Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.
6. We support, manufacture and supply all the supporting machines in the turn key project plan.
If do not find suitable size machine in this page, please contact me directly by email .
contact person: Ms.Ashley gao
Tel: 86 15639261763
skype: ashley weilite or email .
