Help Center2014 Iron Ore Dry Magnetic Separator / Newly Dry Magnetic Separator
Related Products
-
Chromite Magnetic Separator / Chromite Magnetic Dry Separator / Dry Type Magnetic SeparatorUS$ 999 - 99,999MOQ: 1 Set -
Dry High Gradient Magnetic Separator / Powder Magnetic SeparatorUS$ 999 - 99,999MOQ: 1 Set
-
Dry High Gradient Magnetic Separator / Magnetic Separator PriceUS$ 99 - 99,999MOQ: 1 Set
-
Slag Magnetic Separator / Belt Magnetic Separator / Dry Drum Magnetic SeparatorUS$ 999 - 99,999MOQ: 1 Set
-
Iron Ore Dry Magnetic Separator / Magnetite Magnetic Separator / Limonite Magnetic SeparatorUS$ 999 - 99,999MOQ: 1 Set
Specifications
hot selling dry magnetic separator1)low noice
2)complete structure machine
3)selling by the factory directly

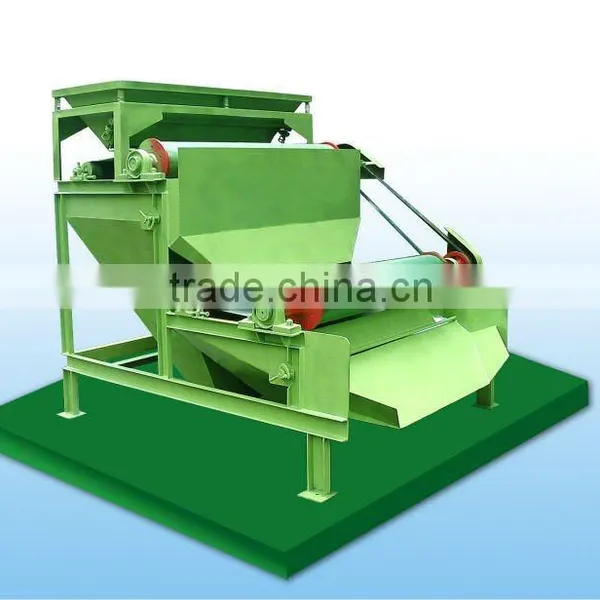

Dry High Intensity Magnetic Separator
Part One : General description of dry magnetic separator
Dry Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.
The series dry magnetic separator (from single cylinder to four cylinders) can eliminate iron from dry powder continuously and automatically. It has strong magnetic field and attractive force, and high rate of eliminating iron like magnetic field strength (13000-15000Gs),enrichment ratio, high recovery rate after two sorting, in addition to iron effect is good.
As we are the manufacturer , we design the magnetic separtor according to your specific requirement . Just because this reason , we can do some technical changes under your requirement to make the separator multipurpose . The machine can also be used for mangnaese and other minerals weak magnetic sorting operation.

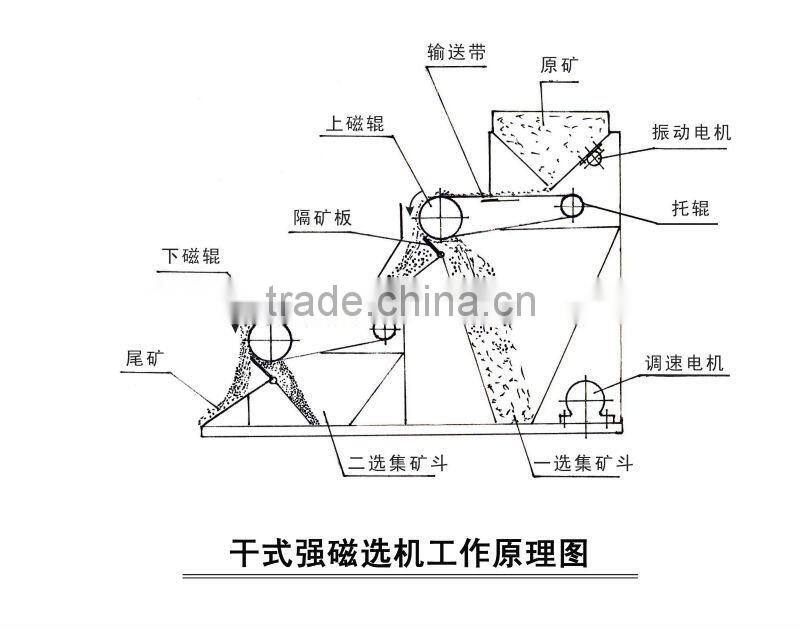

Part Two : Working Principle and usuage of dry magnetic separators
The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 25mm ( usually less than 8mm ). Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalumniobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ringshape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
Part Three : Technical Parameters of dry magnetic separators
| Model | GYC-60B | GYC- 2X60 | GYC- 3X60 | GYC- 3X80 | GYC- 4X80 |
| Magnetic induction | 3600 Oe | 3500 Oe | 1100-3000-3500 Oe | 1100-3000-3500 Oe | 1100-3000-3500 Oe |
Cylinder quantity |
1 | 2 | 3 | 3 | 4 |
| Input size | 0.06~25 mm | 0.05~25 mm | 0~8 mm | 0~8 mm | 0~8 mm |
| Motor power | 0.75 kw | 0.75 kw | 1.1 kw | 1.5 kw | 2.2 kw |
| Process capacity | 0.5~2.5 t/h | 0.5~2.5 t/h | 0.8~2.5 t/h | 1.5~2.5 t/h | 1.5 ~2.5 t/h |
| Weight | 500 kg | 850 kg | 1200 kg | 1500 kg | 2400 kg |
Please note that :
If you could not find the suitable dry magnetic separator in this page , please feel free to contact me ! We are the manufacturer , we have the ability to make the suitable machine for you according to your specific requirement ! My phone no. is +86 371 86687769.
