Home > Products > Special Film Extrusion Line > PE Breathable Plastic Film production line

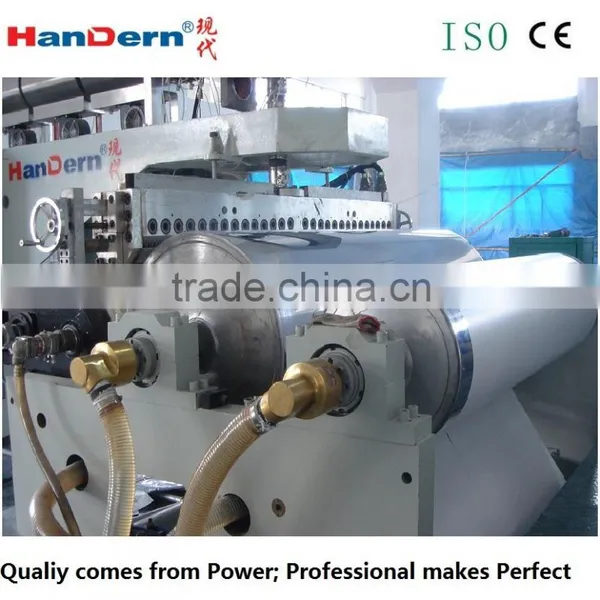

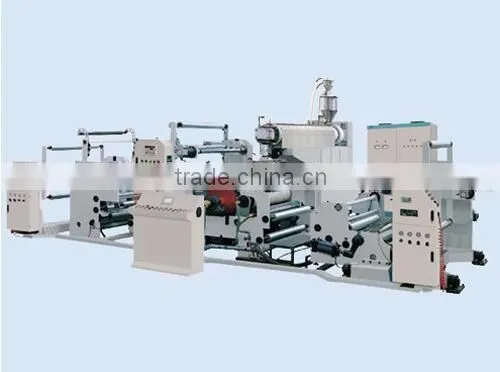

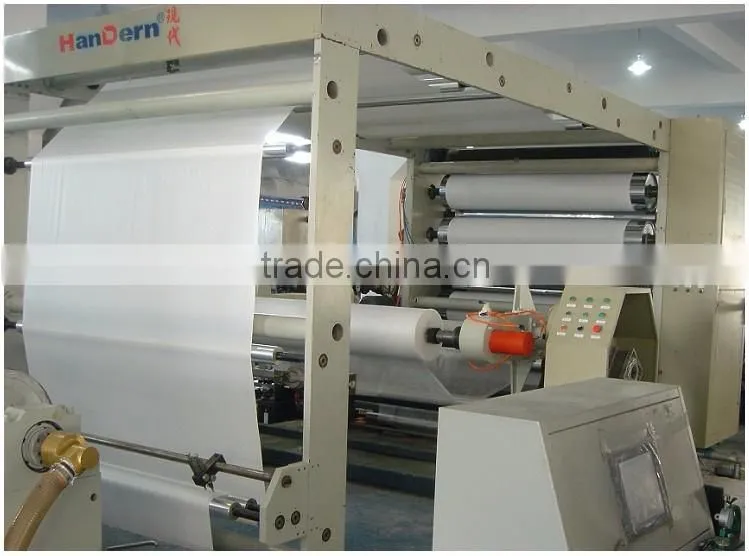

PE Breathable Plastic Film production line
- 10 Set / Sets per Month
- Wuhan
- T/T
Product Details
Condition: | New | Application: | Film | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Hubei, China |
Brand Name: | Handern | Model Number: | PE Breathable Plastic Film production line | Voltage: | 380V 50HZ |
Power(W): | 150KW | Dimension(L*W*H): | 20mx2.5mx2.2m | Weight: | 12T |
Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PE Breathable Film production line
Advanced PE Breathable Film production line
The breathable film allows air to circulate while keeping out moisture.
More than 5 years of experience in researching and manufacturing the breathable film extrusion line allows us to gain advanced extrusion technologies.
From the raw material plastification and casting to the final stretch forming, each process presents a challenge to HANDERN's expertise.
Advantages of PE Breathable Film production line
In comparison to other Chinese film extrusion lines, our extrusion equipment exhibits many unique advantages in configuration optimization, energy saving, and manufacturing and processing technologies.
Overall performance tests show that each and every technical specification of our extrusion machine reaches internationally advanced level. As a matter of fact, HANDERN plastics extrusion line is among the fastest, most advanced Chinese equipment for producing breathable films.
The water vapor transmission rate of the resulting film from our plastics extrusion line, if measured at the temperature of 37℃ and relative humidity of 90%, is up to 8000g/m2(24h).
As the state-of-the-art polymeric material, the breathable film has much higher processing technology requirements than ordinary water-proof materials. As far as material quality is concerned, the breathable film has far more desirable functions than other water-proof materials.
Applications of PE Breathable Film production line
Personal hygiene products: tampons, baby diapers, green scrubs, disposable bed sheet
Daily necessities: raincoat, gloves, waterproof clothing
Building products: breathable materials, etc.
Process of PE Breathable Film production line
Raw material with twin screw granulator making pallet, dry and transfer to the extruder to extrusion, single layer, three layers extrusion, casting forming, then use MDO one direction stretch thermoforming and embossed by embosser, edge cutting, trimming, unit to ensure the full utilization of raw material, finally winding into a roll. The water proof breathable film products with silky feel.
Specifications of PE Breathable Film production line
Breathable Film Width | 1200mm-2600mm |
Linear Speed of the Extrusion Equipment | 100-180 m/min |
Breathable Film Thickness | 0.015mm-0.08mm |
Maximum Production Capacity | 200-300-400-500-600KG/h |
1200mm PE Breathable Film production line
1400mm PE Breathable Film production line
1600mm PE Breathable Film production line
1800mm PE Breathable Film production line
Wooden case is available for PE Breathable Film production line
- Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
- The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer’s company.
- The buyer should prepare all the condition such as water, workspace, power, air, etc, according to the using condition of the machine, before our engineers arrival.
- Supply complete service.
Quality Control of PE Breathable Film production line
