small smart hot plate type Paper card blister packaging machine
- 100 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
- high speed metal can vacuum seamer machine
- Factory Automatic Powder Can Seamer/Sealing Machine with Discount
- fish canning machine food cans sealing machine
- milk powder tin sealing machine special-shaped cans sealing machine
- MDcare MD660 LCD Screen Continuous Medical Sealer Dental Cutting 1.2cm width Sterilization Machinery
- MDcare MD386 7'' LCD Touch Screen 77cm length Intellectual Cut-seal-print Complexer
Product Details
Condition: | New | Application: | Beverage, Commodity, Food, Other | Packaging Type: | Other |
Packaging Material: | Plastic, Other | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 22OV | Power: | 2KW | Place of Origin: | Guangdong, China |
Brand Name: | Jiaozhao | Model Number: | JZ-50S | Dimension(L*W*H): | 510*710*1400(MM) |
Weight: | 100KG | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Features:
- BS series blister packaging machine is to sealing the contact surface between blister cardboard and heater strip (different with UBS series blister packaging machine)
- Blister packing by heater strip( different with UBS series)
- Semi-automatic blister packaging and sealing without thermoforming
- One person operate one machine, speed is 6s/pcs
- Manual feeding the products to the blister molds
- Easy to use by using digital time relay to control the operation
- Pneumatic drive and need connect to air compressor
- 3 station to fix the blister molds for continuous blister packaging
- Packing process controlled by proximity switch
- Assemble the wooden disk and blister molds to the machine before using
Technical features:

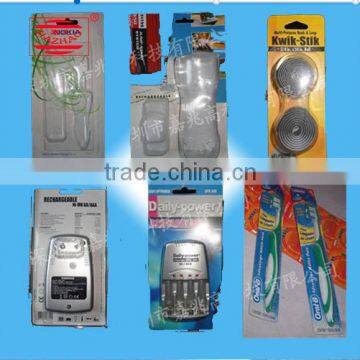

Blister package: mould orientation→put bubble cap→ put products→put paper card→hot seal. The packing is more beautiful,delicate, and to resist from dump and dust. Which are widely used in the package of battery,electric tools,toys and so on. Recommend the most applicable models to our customers according to their products and requirement.
Functions:
- Blister sealing and packaging
- Heat press function
Blister molds:
- One machine need three blister molds
- We need detail design of the blister for making the molds
- The blister molds are made by Bakelite
Specifications:
Model | JZ-50S |
Power | 220V 50HZ |
Power consumption | 2KW |
Platen area | 305mm*457mm |
Action/Min | 18 times/min |
Machine Dimension | D510*W710*H1400(MM) |
Machine Weight | 100KG |
Suggest using air compressor | 1HP |
Molds and Samples:
Pre-sale services:
1. provide professional technical support;
2. send the product catalog and instruction manual;
3. if you have any question please contact us online or send us email, we promise we will give you a reply as soon as possible;
4. personal call or visit is warmly welcome
sale of services:
1. we promise honesty and enthusiasm, it’s our pleasure to serve you as you purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract
After-sale service:
1. Where to buy our products for one year warranty and life long maintenance
2. 24 hours telephone service online
3. A large stock of components and parts, easily-worn parts.
