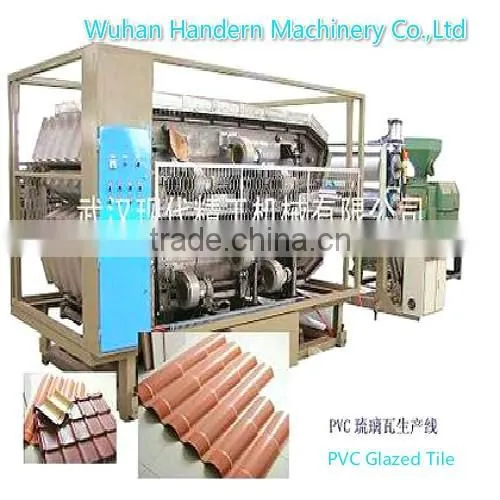

PVC Glazed Tile Extrusion Line
PVC plastic sheet extrusion line
Basic introduction of PVC glazed tile sheet extrusion line

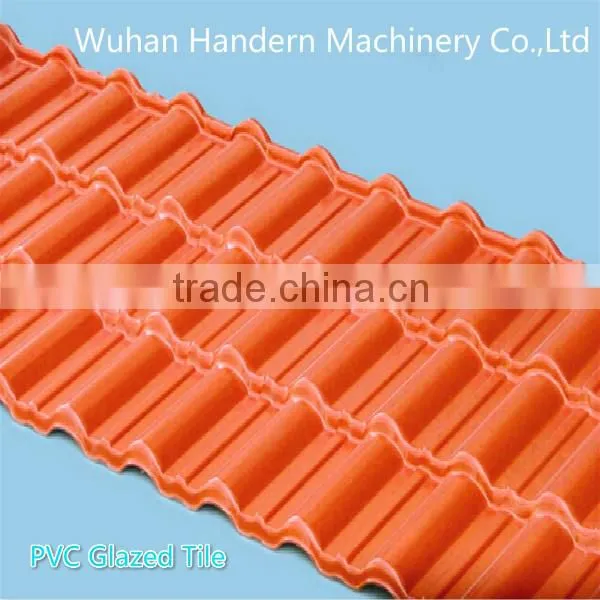

The PVC glazed tile extrusion line uses three extruders to produce the laminated glazed tile. The name of the plate is derived from the tile surface coating, which is made of ASA resin. ASA materials have stable physical properties. They are unlikely to discolor even when exposed to the UV, moisture, and hot and cold weather.
The top and middle layers of the plate are made of different PVC resins. This not only reduces production cost, but also meets the high performance requirements. PVC glazed tiles are popularly used for the roofing. They are easily installed and durable with a long service life.
Steady plasticizing process, compact structure, highly integrated automatic system and easily operation makes pvc roofing tile extrusion machine as your priority choice .
Specifications of PVC glazed tile sheet extrusion line
Model No. |
SJZ80/55-1200 |
Glazed Tile Thickness |
2-3mm |
Tile Width and Tile Wave Width |
1050mm×250mm |
Production Line Speed |
1~6m/min |
Maximum Production Capacity |
500kg/h |
2mm PVC galzed tile extrusion line verified by ISO9001.
3mm PVC galzed tile extrusion line achieved a wave of praise from former customers.
4mm PVC galzed tile extrusion line is waiting for your inspection.
5mm PVC galzed tile extrusion line is designed particularly for you.
wooden case
Our company will provide relevant information on various technology and business consulted
by customers. If clients want to visit our company, we will offer all they need for convenience.
Our service personnel will stay on site for installation, debugging, training and technology
transfer till customers can operate independently .
If you choose us, you will attain:
Improved production efficiency and enhanced performance reliability
High flexibility due to multiple options of production line design
Reasonable Price
Wuhan Handern Machinery Co.,Ld
PVC glazed tile sheet EXTRUSION machine
