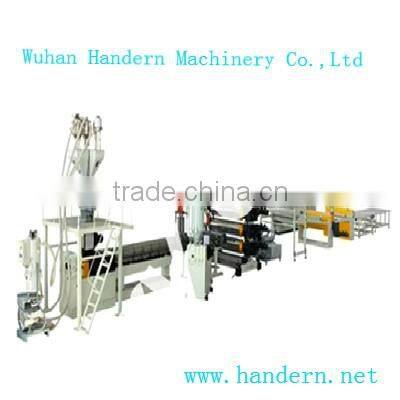

PET Sheet Extrusion Line
Hot selling PET Sheet Extrusion Line
Brief Introduction of PET sheet Line
The unique selling point of this sheet extrusion line is its specially designed extrusion screw that has the functions of melting and mixing while maintaining the plastic properties of materials to be extruded. The precise sheet thickness is achieved by a combination of extrusion screw and roller speed adjustments.
Independent temperature control system maintains a precise control over the roller temperature, which in turn enables a uniform thickness of the extrudate. The take-up roller is easily reconfigured to meet various customer needs. A drying set-up, for example, can be added to the extrusion line to ensure the extrudate is effectively dried.
Applications of PET Sheet Extrusion Line
It is widely used in packing industies such as for cosmetics, medicine, tobacco and alcohol, stationery, advertisements, posters and all kinds of cards.
Parameters of PET Sheet Extrusion Line
|
Number
|
Item | Unit | Quantity |
|
1
|
Extruder with single screw | set | 1 |
|
2
|
Screen Changer | set | 1 |
|
3
|
T Die | set | 1 |
|
4
|
Vaccum Calibrator | set | 1 |
|
5
|
Haul-off unit | set | 1 |
|
6
|
Melting pump | set | 1 |
|
7
|
Cooling Bracket | set | 1 |
|
8
|
Temparature Controller | set | 1 |
|
9
|
Cutting device | set | 1 |
|
10
|
Electrical control Cabinet | set | 1 |
|
11
|
Stacker Unit | set | 1 |
|
12
|
Winder | set | 1 |
Technical Specifications of PET Sheet Extrusion Line
|
Sheet Extrusion Line Model No.
|
HDB130/90-2200 |
HDB120/80-1400 |
HDB110/65-1000 |
|
Sheet Width
|
2000mm |
1200mm |
800mm |
|
Sheet Thickness
|
0.5~2mm |
0.3~2mm |
0. 1~0.8mm |
|
Equipment Speed
|
15m/min |
20m/min |
20m/min |
|
Roller Diameter
|
Ø600mm |
Ø500mm |
Ø400mm |
|
Production Capacity
|
500-600kg/h |
400-500kg/h |
200-300kg/h |
Features of PET Sheet Line
1. The coat-hanger type sheet die features a 2-port manifold for precise melt flow control.
2. Accurate temperature control of ±1℃ provides an ideal environment for plasticization. It also helps ensure the uniform thickness of the extrudate.
3. The plastics extrusion die is followed by 3 rolls downstream which are arranged horizontally, vertically, or at an angle of 45°with respect to the ground. The rolls are used to solidify the molten sheet extrudate and impart gloss to the sheet surface. They are vertically adjustable in height, thus providing more options during operation for high quality solidified plastic sheets.
4. Advance sheet cutter allows the exact number of sheets to be cut to the required length.
5. High-torque motor is used to control the sheet take-up speed and tension force on the sheet extrusion line, in an attempt to yield flat rolls of thin plastic sheets. With the aid of the slitter, the finished sheet can be cut to the required width. Via the automatic length counter, users can freely set the sheet length.
2mm PET extrusion line verified by ISO9001.
3mm PET extrusion line achieved a wave of praise from former customers.
4mm PET extrusion line is waiting for your inspection.
5mm PET extrusion line is designed particularly for you.
wooden case
Our company will provide relevant information on various technology and business consulted
by customers. If clients want to visit our company, we will offer they need for convenience.
Our service personnel will stay on site for installation, debugging, training and technology
transfer.
If you choose us, you will attain:
Improved production efficiency and enhanced performance reliability
High flexibility due to multiple options of production line design
Reasonable Price
