Home > Products > Plastic Sheet Extrusion Line > PE PP extrusion sheet production line
PE PP extrusion sheet production line
- 10 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Sheet | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Hubei, China |
Brand Name: | Handern | Model Number: | HDB130/90-2200 | Voltage: | 380V |
Power(W): | 150KW | Dimension(L*W*H): | 20mx2.5mx2.2m | Weight: | 10T |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PE PP PS extrusion sheet production line
High output PP PE PS Sheet extrusion line
PE PP PS extrusion sheet production line
1. Advantages of PE PP PS extrusion sheet production line
extrusion screw | melting and mixing while maintaining the plastic properties of extruded materials; precise thickness of sheet by a combination of extrusion screw and roller speed adjustments; specially designed; |
temperature control system | a precise control over the roller temperature; uniform thickness of sheet; independent; provides an ideal environment for plasticization |
take-up roller
| easily reconfigured to meet various customer needs; |
Die | precise melt flow control |
Three roll calenders | high quality solidified plastic sheets |
2. Features of PE PP PS extrusion sheet production line
Coat hanger type die | a 2-port manifold |
Temperature control | Accurate temperature control of ±1℃ |
Three rolls calender | horizontally,vertically,or at an angle of 45°with respect to the ground |
Cutting device | reach the required length |
Hightorque motor | control the sheet take up speed and tension force flat rolls of thin plastic sheets |

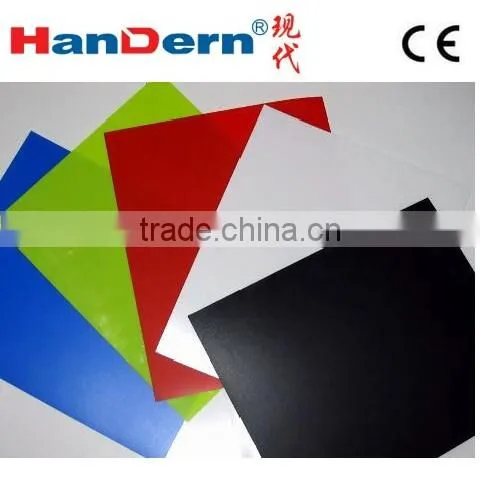

3.Detailed Products of PE PP PS extrusion sheet production line
PE Sheet for Packaging
The single-layer PE sheet, 3-layer PE sheet, and the PE foam core are mainly used in the plastic packaging industry.
PE sheets wrapped around the steel coil will provide an ideal water barrier.
PP Sheet for Stationery
The transparent PP sheet, frosted sheet, PP foam core, and the 2-color 3-layer extruded PP sheet are widely seen in the stationery industry.
PP/PS Blister Packaging
Single-layer PP/PS sheet, 2-layer PP/PS extruded sheet, 3-layer extruded sheet, 2 layer glossy PP sheet
Anti-Static or Conductive PP/PE/PS Sheets
Primary uses of our single-layer, double-layer, and 3-layer conductive or antistatic PP/PE/PS sheets are in the semi-conductor, telecommunication, and automobile industries, where they are employed to package the
electronic devices for transportation and storage.
4. Specifications of PE PP PS extrusion sheet production line
Sheet Extrusion Line Model No. | HDB130/90-2200 | HDB120/80-1400 | HDB110/65-1000 |
Sheet Width | 2000mm | 1200mm | 800mm |
Sheet Thickness | 0.5~2mm | 0.3~2mm | 0. 1~0.8mm |
Equipment Speed | 15m/min | 20m/min | 20m/min |
Roller Diameter | Ø600mm | Ø500mm | Ø400mm |
Production Capacity | 500-600kg/h | 400-500kg/h | 200-300kg/h |

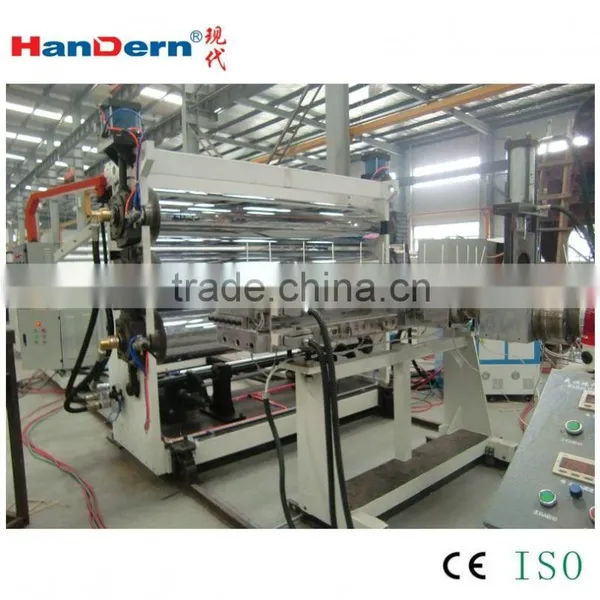

5. Pictures of PE PP PS extrusion sheet production line
1000mm PE PP PS extrusion sheet production line
1200mm PE PP PS extrusion sheet production line
1400mm PE PP PS extrusion sheet production line
1600mm PE PP PS extrusion sheet production line
Wooden case ia available for PE PP PS extrusion sheet production line
Service:
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality Control of PE PP PS extrusion sheet production line
Wuhan Handen Machinery Co.Ltd
tel:13986280012
Contact Us
- Wuhan Handern Machinery Co., Ltd.
- Contact nameAnita Cao
- Phone86-27-83233055
- AddressJinghe Wuhan,Hubei
