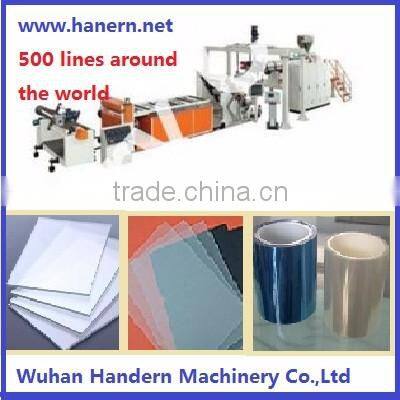

PET Sheet Extrusion Line
Hot selling PET Sheet Extrusion Line
General Overview of PET Sheet Extrusion Line
The single-screw extruder on this modern-design PET sheet extrusion line comes with 2 air outlets. Thanks to this air outlet design, our PET sheet production line no longer needs a separate dehumidification drying system which otherwise would have been necessary to remove the moisture contained in the PET raw stock. Therefore, a large amount of power is saved for reduced production cost.
Key Parts
Extruder
hydraulic screen changer
coat-hanger type sheet die,
3 chill rolls (for sheet compression and imparting gloss to the sheet),
conveyor support (for effective cooling),
2 take-up rollers
This PET, PETG, and CPET single-layer and multi-layer sheet extrusion line represents the most advanced, reliable, and mature production line that one has ever witnessed in China. It outperforms most of its contemporaries by 30% or even higher. In addition to producing PET sheet extrusions, this plastics extrusion line is also used to make PS, PP, and PP plastic sheets.
Transparent and eco-friendly, the extruded PET sheet exhibits good workability. It is easily recyclable, and traps air between layers thereby providing good thermal insulation performance.
Technical Specifications of PET Sheet Extrusion Line
|
Model No.
|
APET120-1000 |
PET130-1600 |
|
Sheet Width
|
800mm |
1400mm |
|
Sheet Thickness
|
0.20-1.2mm |
0.20-1.2mm |
|
Equipment Speed
|
15m/min |
15m/min |
|
Roller Diameter
|
Ø400mm |
Ø500mm |
|
Production Capacity
|
400kg/h |
600kg/h |
2mm PET Sheet production line verified by ISO9001.
3mm PET Sheet production line achieved a wave of praise from former customers.
4mm PET Sheet production line is waiting for your inspection.
5mm PET Sheet production line is designed particularly for you.
wooden case
Our company will provide relevant information on various technology and business consulted
by customers. If clients want to visit our company, we will offer they need for convenience.
Our service personnel will stay on site for installation, debugging, training and technology
transfer.
If you choose us, you will attain:
Improved production efficiency and enhanced performance reliability
High flexibility due to multiple options of production line design
Reasonable Price
