Corrugated Plastic Sheet Extrusion machine

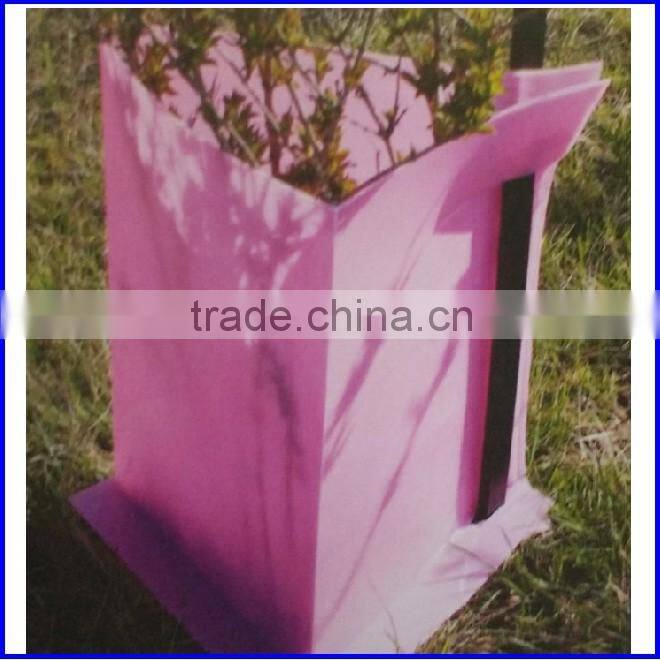

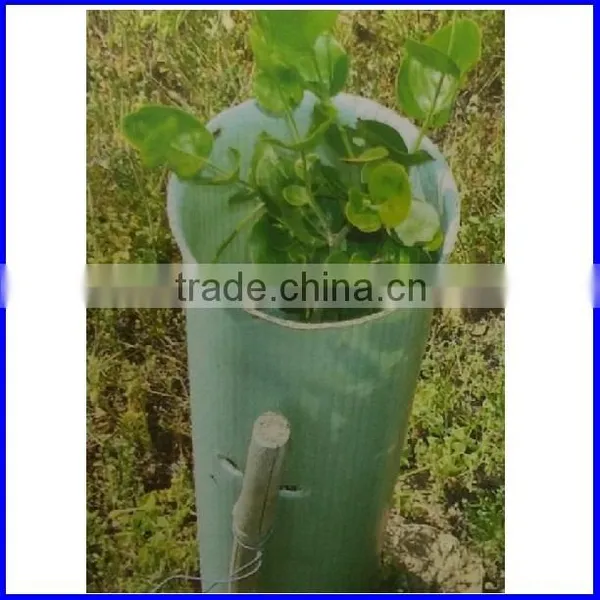

Plastic Corflute tree guard sheet making machine
High output PP PE PC corrugated sheet extrusion line

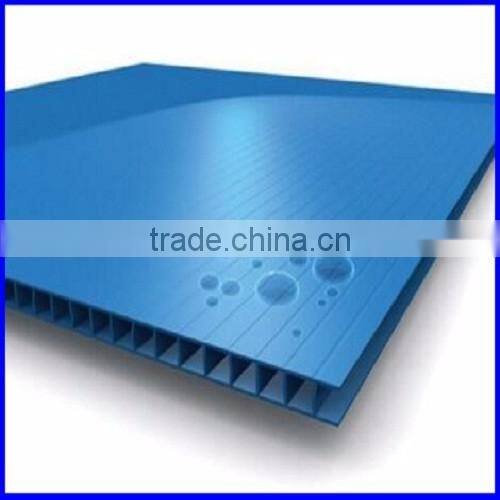

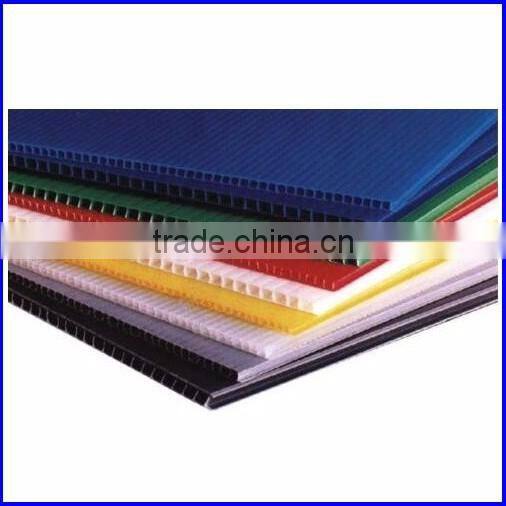

Corrugated Polypropylene layer pad sheet making machine is capable of producing PP PE PC corrugatedsheet., which have the advantages of light weight,high stiffness, good electrical insulating, high impact strength, good dimensional stability and good creep resistance.
What's more, it can be utilized in many fiels including advertisement,building, decoration,sign board, package and agricultural greenhouse.
Parameters of the Plastic Corflute tree guard sheet making machine
| Number | Item | Unit | Quantity |
| 1 | Extruder with single screw | set | 1 |
| 2 | Screen Changer | set | 1 |
| 3 | Die | set | 1 |
| 4 | Vaccum Calibrator | set | 1 |
| 5 | First haul-off unit | set | 1 |
| 6 | Drying oven | set | 1 |
| 7 | Cooling Device | set | 1 |
| 8 | Second haul-off unit | set | 1 |
| 9 | Cutting device | set | 1 |
| 10 | Electrical control Cabinet | set | 1 |
| 11 | Stacker Unit | set | 1 |
| 12 | Screw feeder | set | 1 |
Specifications of Plastic Corflute tree guard sheet making machine
Machine type |
sheet width(mm) |
sheet thickness(mm) |
Max Extrusion Capcity(kg/h) |
1400 |
1250 |
2-20 |
280/350 |
1800 |
1650 |
2-20 |
320/350/420 |
2300 |
2150 |
2-12 |
350 |
2700 |
2550 |
2-6 |
480 |
Advantages of Plastic Corflute tree guard sheet making machine
New design screw extruder: line with market demands and adapt to many kinds of raw materials, with the advantages of good plasticizing, uniform distribution and high output.
Hydraulic pressure screen exchange: short course of changing screen and stable operation of operators
Molding die: with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet.
Vacuum Calibrator: convective heat with array interleaved to ensure high precise calibration. the vacuum system composes two independent subsystem, equipped with several closed loop vacuum lines, which carries vacuum regulating system and vacuum displaying system, to ensure stable and even vacuum degree of sheet surface.
Haul off Device:
First haul off device is of high power, high reduction gear ratio, multi roll type, high traction, to draw the sheet up from calibrator evenly and synchronizedly.
Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting.
Cutting Machine: Accurate imported automatic length indicator, adopts electric fly cutting and traversing cutting.
Electrical control system: adopt PLC to control precise parameters.
Process Flow of Plastic Corflute tree guard sheet making machine
Feeding→extrusion→exchange screen→Die→Calibrator→first haul off →heat treating oven →Cooling→second haul off →cutting→stacking
Benifits of Plastic Corflute tree guard sheet making machine
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products

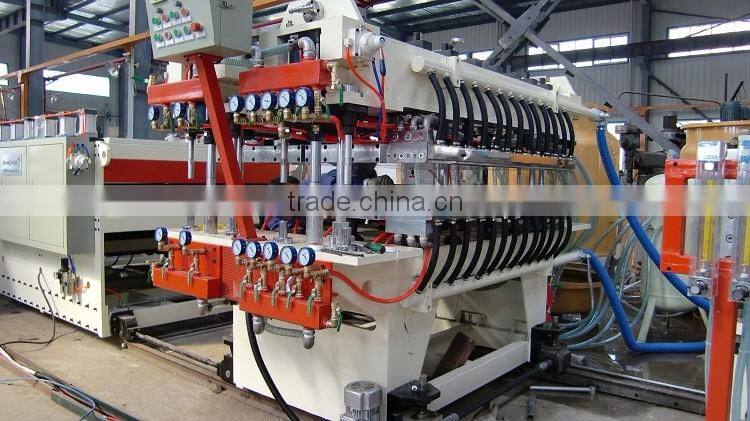

Pictures of Plastic Corflute tree guard sheet making machine
1400mm Plastic Corflute tree guard sheet making machine are professionally manufactured through the plastic equipment with more than 15 years' experience
1600mm Plastic Corflute tree guard sheet making machine are CE certified, which assures your legal right.
1800mm Plastic Corflute tree guard sheet making machine are ISO9001:2008 certified, which guarantee theproduct quality.
2000mm Plastic Corflute tree guard sheet making machine offer the custom service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
1.Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
2.The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer's company.
3.The buyer should prepare all the condition such as water, workspace, power, air, etc, according to the using condition of the machine, before our engineers arrival.
4.Supply complete service.
