PP PE plastic coroplast sheet extruding machines
PP PE plastic coroplast sheet extruding machines
Fluted Plastic Sheet extrusion machine is to manufacture PP PE PC fluted sheet or hollow sheet, which have many advantages than cardboard.
1) Light Weight
2) Innocuous, non-taste
3) Waterproof, moisture resistance
4) Strong impact resistance
5) Ageing resistant
6) Corrosion resistant
7) Heat and sound insulation
8) Recyclingenvironment-friendly
Applications of PP PE plastic coroplast sheet
1) Packing Material: Instead of the traditional packing material such as corrugated paper, wood board, etc.

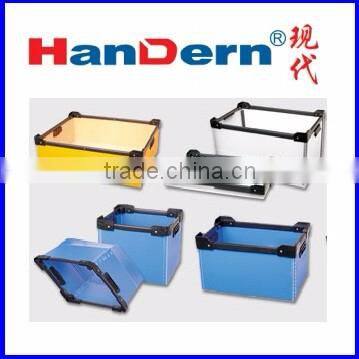

2) Turnover box: the container of electric parts, food, drink.

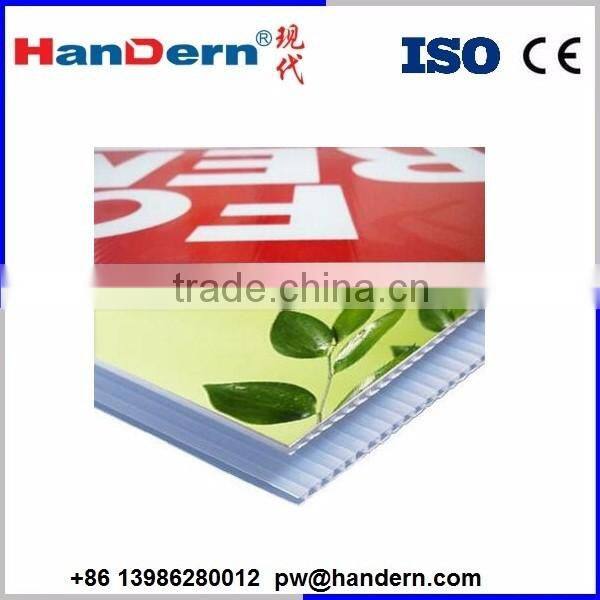

3) Advertising Board: advertising board, show board, brand mark, light box board, etc.
4) Industry Uses: Protection board, padding board, luggage carrier, separating board, baseboard, cross board for all things
5)Construction Board: Partition, protection board of wall, ceiling board
Parameters of PP PE plastic coroplast sheet extruding machines
|
Number
|
Item | Unit | Quantity |
|
1
|
Extruder with single screw | set | 1 |
|
2
|
Screen Changer | set | 1 |
|
3
|
Die | set | 1 |
|
4
|
Vaccum Calibrator | set | 1 |
|
5
|
First haul-off unit | set | 1 |
|
6
|
Drying oven | set | 1 |
|
7
|
Cooling Device | set | 1 |
|
8
|
Second haul-off unit | set | 1 |
|
9
|
Cutting device | set | 1 |
|
10
|
Electrical control Cabinet | set | 1 |
|
11
|
Stacker Unit | set | 1 |
|
12
|
Screw feeder | set | 1 |
Specifications of PP PE plastic coroplast sheet extruding machines
| Machine type | 1400 | 1800 | 2300 | 2700 |
| Max sheet width(mm) | 1250 | 1650 | 2150 | 2550 |
| Sheet thickness(mm) | 2-6 6-12 15-20 | 2-6 6-12 15-20 | 2-6 6-12 | 2-6 6-12 |
| Line Speed(m/min) | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 |
| Max output(kg/h) | 180-260 | 220-350 | 320-450 | 360-500 |
| Motor power(kw) | 55-90 | 75-110 | 90-132 | 110-160 |
| Screw Model | SJ105/36 | SJ110/36 | SJ120/36 | SJ135/36 SJ150/36 |
Advantages of Fluted Plastic Sheet making machine
New design screw extruder: line with market demands and adapt to many kinds of raw materials, with the advantages of good plasticizing, uniform distribution and high output.
Hydraulic pressure screen exchange: short couse of changing screen and stable operation of operators
Molding die: with high quality alloy steel lips and restrictor bars to ensure even pressure and uniform thickness of the finished sheet.
Vacuum Calibrator: convective heat with array interleaved to ensure high precise calibration. the vaccuum system composes two independent subsystem, equipped with several closed loop vacuum lines, which carries vacuum regulating syatem and vacuum displaying system, to ensure stable and even vacuum degree of sheet surface.
Haul off Device:
First haul off device is of high power, high reduction gear ratio, multiroll type, high traction, to draw the sheet up from calibartor evenly and synchronizedly.
Second hauloff device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting.
Cutting Machine: Accurate imported automatic length indicator, adopts electric fly cutting and traversing cutting.
Electrical control system: adopt PLC to control precise parameters.
Process Flow of PP PE plastic coroplast sheet extruding machines
Feeding→extrusion→exchange screen→Die→Calibrator→first haul off →heat treating oven →Cooling→second haul off →cutting→stacking
Benifits of Flow of PP PE plastic coroplast sheet extruding machines
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4. Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products
Pictures of PP PE plastic coroplast sheet extruding machines
1250mm PP PE plastic coroplast sheet extruding machines are professionally
manufactured through the plastic equipment with more than 15 years' experience
1650mm PP PE plastic coroplast sheet extruding machines are CE certified, which assures your legal right.
2150mm PP PE plastic coroplast sheet extruding machines are ISO9001:2008 certified, which guarantee the product quality.
2550mm PP PE plastic coroplast sheet extruding machines offer the custom service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
1.Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
2.The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer's company.
3.The buyer should prepare all the condition such as water, workspace, power, air, etc, according to the using condition of the machine, before our engineers arrival.
4.Supply complete service.
Quality Process Flow Chart of PP PE plastic coroplast sheet extruding machines
