PP plastic corrugated sheet production line
Extruded PP multiwall sheet making machine

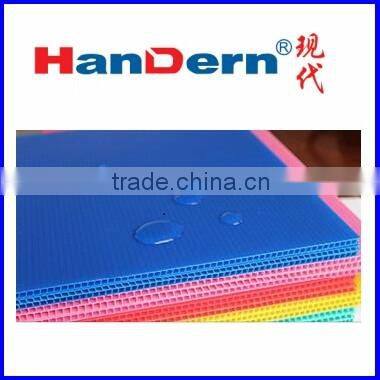

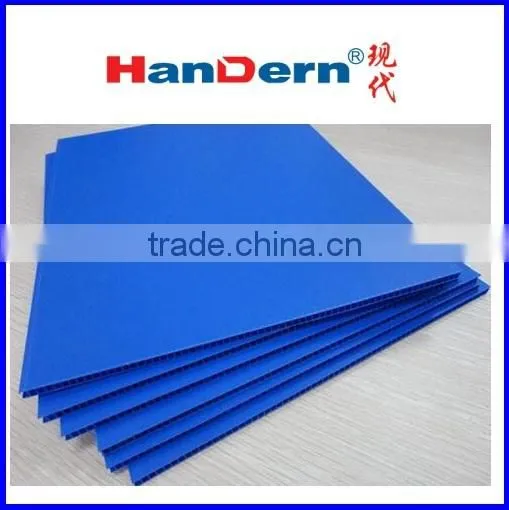

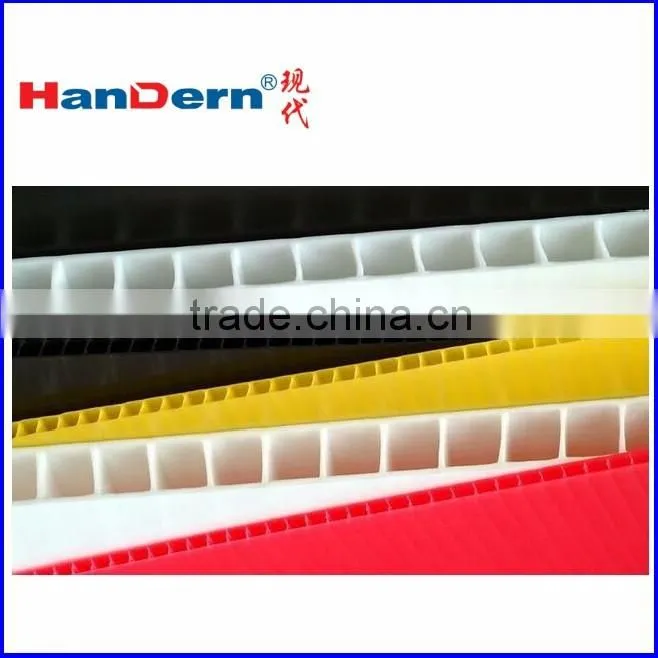

Extruded PP multiwall sheet making machine is capable of producing pp pe pc fluted sheet.this end products will have the advantages of light weight,high stiffness, good electrical insulating,high impact strength, good dimensional stability and good creep resistance.
What's more, it can be utilized in many fiels including advertisement,building, decoration,sign board, package and agricultural greenhouse.
Parameters of PP plastic corrugated sheet production line
|
Number
|
Item | Unit | Quantity |
|
1
|
Extruder with single screw | set | 1 |
|
2
|
Screen Changer | set | 1 |
|
3
|
Die | set | 1 |
|
4
|
Vaccum Calibrator | set | 1 |
|
5
|
First haul-off unit | set | 1 |
|
6
|
Drying oven | set | 1 |
|
7
|
Cooling Device | set | 1 |
|
8
|
Second haul-off unit | set | 1 |
|
9
|
Cutting device | set | 1 |
|
10
|
Electrical control Cabinet | set | 1 |
|
11
|
Stacker Unit | set | 1 |
|
12
|
Screw feeder | set | 1 |
Specifications of PP plastic corrugated sheet production line
|
Machine type
|
sheet width(mm) |
sheet thickness(mm) |
Max Extrusion Capcity(kg/h |
|
1400
|
1250 |
2-20 |
280/350 |
|
1800
|
1650 |
2-20 |
320/350/420 |
|
2300
|
2150 |
2-12 |
350 |
|
2700
|
2550 |
2-6 |
480 |
Advantages of PP plastic corrugated sheet production line
New design screw extruder: line with market demands and adapt to many kinds of raw materials, with the advantages of good plasticizing, uniform distribution and high output.
Hydraulic pressure screen exchange: short course of changing screen and stable operation of operators
Molding die: with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet.
Vacuum Calibrator: convective heat with array interleaved to ensure high precise calibration. the vacuum system composes two independent subsystem, equipped with several closed loop vacuum lines, which carries vacuum regulating system and vacuum displaying system, to ensure stable and even vacuum degree of sheet surface.
Haul off Device:
First haul off device is of high power, high reduction gear ratio, multi roll type, high traction, to draw the sheet up from calibrator evenly and synchronizedly.
Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting.
Cutting Machine: Accurate imported automatic length indicator, adopts electric fly cutting and traversing cutting.
Electrical control system: adopt PLC to control precise parameters.
Process Flow of PP plastic corrugated sheet production line
Feeding→extrusion→exchange screen→Die →Calibrator→first haul off →heat treating oven →Cooling→second haul off →cutting→stacking
Benifits of PP hollow sheet making machine
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products

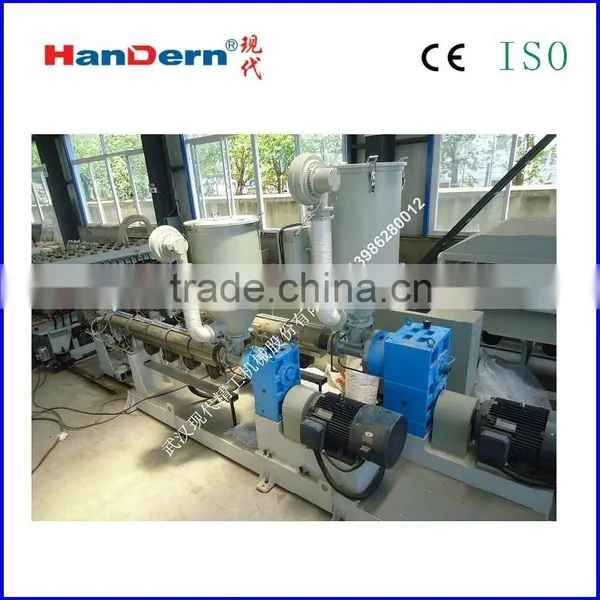

Pictures of PP plastic corrugated sheet production line
1250mm PP plastic corrugated sheet production line are professionally manufactured through the plastic equipment with more than 15 years' experience
1650mm PP plastic corrugated sheet production line are CE certified, which assures your legal right.
2150mm PP plastic corrugated sheet production line are ISO9001:2008 certified, which guarantee the product quality.
2550mm PP plastic corrugated sheet production line
offer the custom service and engineer available toservice overseas, which can meet your requirement better and solve the problem in the process of operation.
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plan
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
