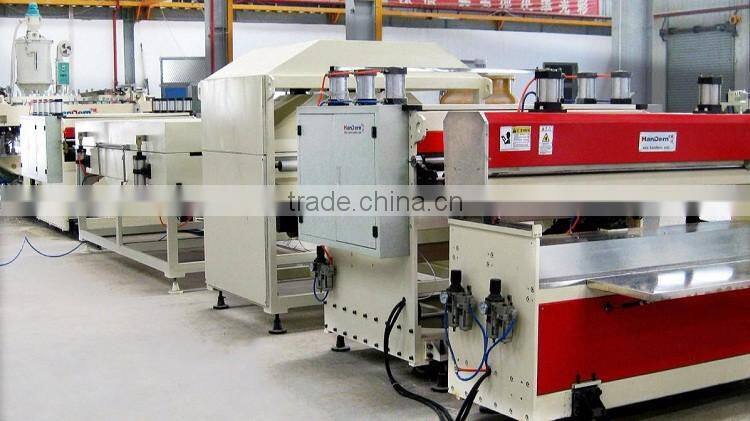

Plastic carton sheet produce system
1. Application of Plastic carton sheet produce system

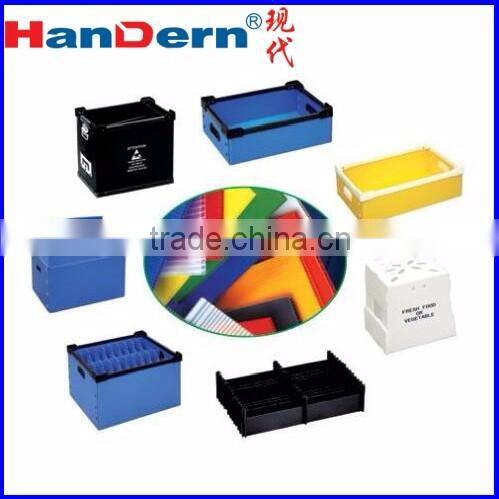

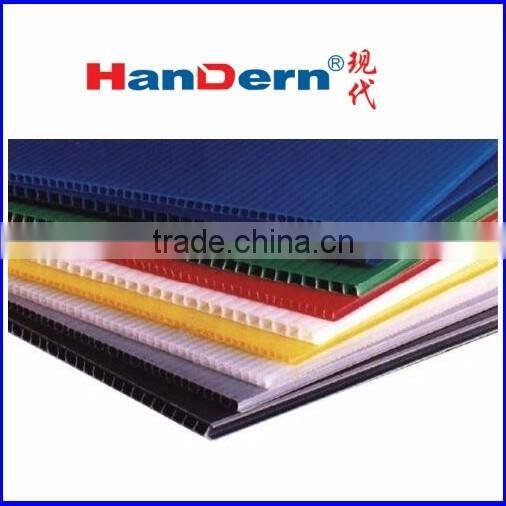

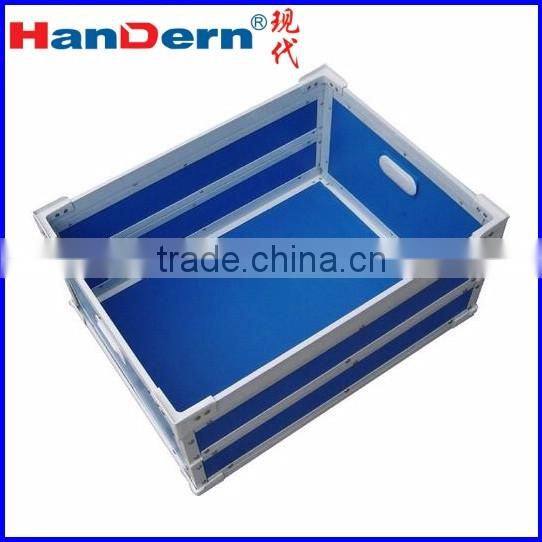

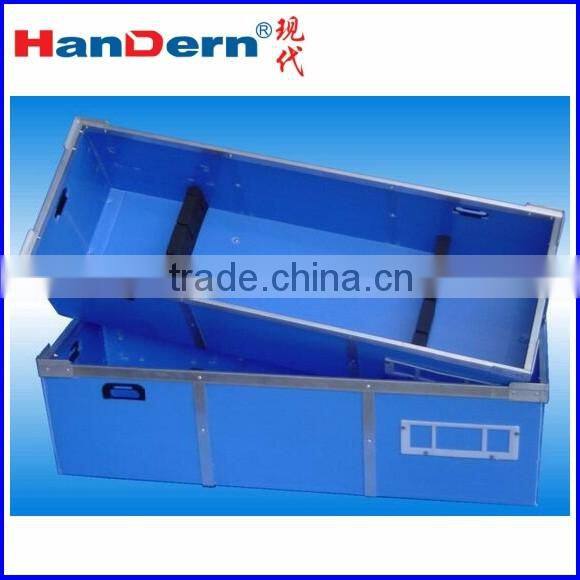

Plastic carton sheet produce system is to produce PP PE PC hollow profile sheet, which is widely used in decoration, construction, greenhouse roofing,outside advertisement and package turnover on industrial products.
2. Features of Plastic carton sheet produce system
light weight, high hardness, good light transmission, and excellent resistance to corrosion, moisture, pollution, high pressure and shock, waterproof.
3.Specifications of Plastic carton sheet produce system
| Machine Type | sheet width(mm) | sheet thickness(mm) | Max output(kg/h) |
| 1400 | 1250 | 2-18 | 280/280/350 |
| 1800 | 1650 | 2-18 | 320/350/420 |
| 2300 | 2150 | 2-12 | 350/450 |
| 2700 | 2550 | 2-6 | 480 |
4.Parameters of Plastic carton sheet produce system
| Number | Item | Unit | Quantity |
| 1 | Extruder with single screw | set | 1 |
| 2 | Screen Changer | set | 1 |
| 3 | Die | set | 1 |
| 4 | Vaccum Calibrator | set | 1 |
| 5 | First haul-off unit | set | 1 |
| 6 | Drying oven | set | 1 |
| 7 | Cooling Device | set | 1 |
| 8 | Second haul-off unit | set | 1 |
| 9 | Cutting device | set | 1 |
| 10 | Electrical control Cabinet | set | 1 |
| 11 | Stacker Unit | set | 1 |
| 12 | Screw feeder | set | 1 |
5. Technial Advantages of Plastic carton sheet produce system
Extrudes: special designed screw, advanced temperature control system, ensure stable extrusion and high output.

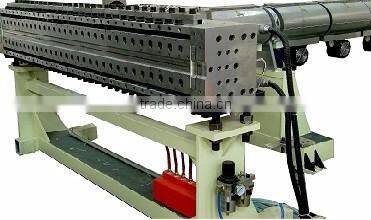

Die: super quality alloy lips and adjustable restrict bars, provide even pressure.
Vacuum calibrator: heatconvection system with array interleaved, guarantees precision of calibration.
The vacuum system consists of two independent subsystem, equipped with many closed vacuum lines.
Electrical control system: adopt microprocessor unit(PLC) to control precise parameters and optimize the operation features.

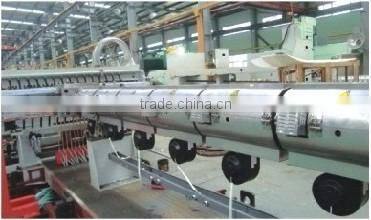

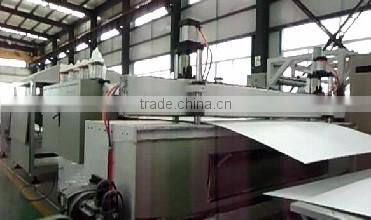

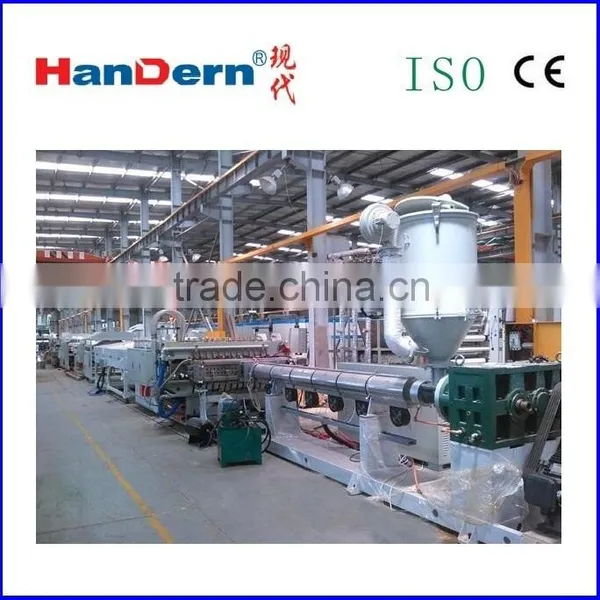

1250mm multiwall profile sheet extrusion line
1650mm multiwall profile sheet extrusion line
2250mm multiwall profile sheet extrusion line
2650mm multiwall profile sheet extrusion line

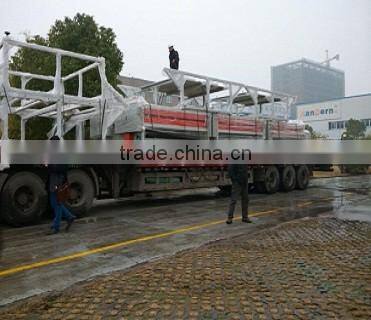

We adopt standard wooden case to pack the pp hollow profile sheet extrusion line
Finished products will be shipped within 60 days on receipt of your advance payment.
We promise to provide the best quality Plastic carton sheet produce system and helpful support for you.
(1) Provide technical training for you after the delivery of Plastic carton sheet produce system
(2) Appoint professional stuff to install, debug, test anf train on site about 10-15 days.
