NIC20G 2*10G Ethernet Converged Network Adapter

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	Billioncom
Model Number	NIC20G

Product Description

Overview

The Ethernet Converged Network Adapter NIC20G with SFP+ connectivity, is a very flexible and scalable Ethernet adapter for today's demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of serverswith multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on demand are driving the need for 10Gbps connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments. Powered by Intel’s third-generation 10GbE network controller, the Intel®Ethernet 82599 10 Gigabit Ethernet Controller, the NIC20 adapter addresses the demanding needs of the next generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.

Best Choice for Virtualization

The explosive growth in virtualizationis leading to an increasing demand for network performance. With more Virtual Machines (VMs) running on each multi-coreserver, networking traffic is dramatically increased, with each VM competing for available I/O bandwidth.NIC20G addresses networking bottlenecks in virtualized environments. It enables network intensive applications to achieve the performance expected in a virtualized environment. The adapter provides the best networking performance available in the industry, whether the physical port is configured in an emulation mode using the virtual switch in the Virtual Machine Monitor(VMM), or is directly assigned to a virtual machine. In the emulation mode the I/O technology,Virtual Machine Device queues1 (VMDq) optimizes by offloading data sorting and copying from the software Virtual Switch in the VMM to the Intel Ethernet 82599 10 Gigabit Controller. This configuration is best suited for a large number of VMs running standard applications that have limited bandwidth and latency requirements. For mission-critical applications, where dedicated I/O is required for maximum network performance, users can assign a dedicated virtual adapter port to a VM. Using the PCI-SIG SR-IOV capability on an adapter provides direct VM connectivity and data protection across VMs. SR-IOV technology enables the data to bypass the software virtual switch and provides near-native performance. It assigns either physical or virtual I/O ports to individual VMs directly. This technology is best suited for applications that demand the highest I/O throughput and lowest latency performance such as data base, storage, financial and other applications.

PCI-SIG SR-IOV is a mechanism for devices to advertise their ability to be directly assigned to multiple virtual machines. SR-IOV enables the partitioning of a PCI Express* (PCIe) function into many virtual interfaces for the purpose of sharing the resources ofa PCIe device in a virtual environment. These virtual interfaces are called Virtual Functions. Each virtual function can support a unique and separate data path for I/O-related functions within the PCIe hierarchy. Use of SR-IOV with anetworking device, for example, enables the bandwidth of a single port (function) to be partitioned into smaller slices that can be allocated to specific VMs, or guests, via a standard interface.

Unified Networking and Storage

--NIC20G lowers your data center total cost of ownership (TCO) by providing the ability to route LAN and SAN traffic over a single fabric.

--Support for Fiber Channel over Ethernet (FCoE)

--FCoE encapsulates Fiber Channel frames over standard Ethernet networks, enabling Fiber Channel to take advantage of 10 GbE networks while preserving its native protocol. The adapter offers FCoE hardwar acceleration to provide performance comparable to FC HBAs. The adapters support Data Center Bridging, also known as Converged Enhanced Ethernet (CEE), which enables customers to configure traffic classes and priorities to deliver a lossless Ethernet fabric. NIC20G reduces TCO by eliminating redundant fabrics and saves the cost of expensive FC HBAs and FC switch ports.

--Support for iSCSI

The adapter provides complete support for proven native OS and VMM iSCSI initiators as well as iSCSI boot. NIC20G includes a number of advanced features that enable it to provide industry-leading performance and reliability.

Reliable Performance

--Security Optimizations

The adapters support IPsec offload for Microsoft’s* Network Access Protection (NAP), Active Directory,* and future security capabilities in Windows 7*. An NIC20G adapter enables customers to run a secure network environment without sacrificing performance.

--PCIe v2.0 (5 GT/s)

PCIe v2.0 (5 GT/s) support enables customers to take full advantage of 10 GbE by providing a maximum of 20 Gbps bi-directional through put per port on a single dual port card.

--Designed For Multi-core Processors

Support for technologies such as multiple queues, receive-side scaling, multiple MSI-X vectors, and Low Latency Interrupts enable the NIC20G adapter to provide high performance, 10 Gigabit connectivity in multi-core server blades. These technologies distribute network processing across multiple CPU cores, improving overall performance. For today's demanding virtualized data center environments, the adapter delivers ultimate flexibility and calability.

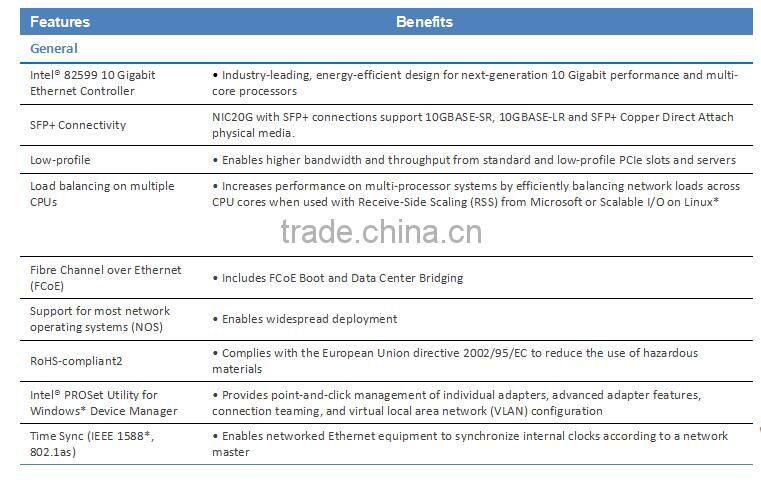

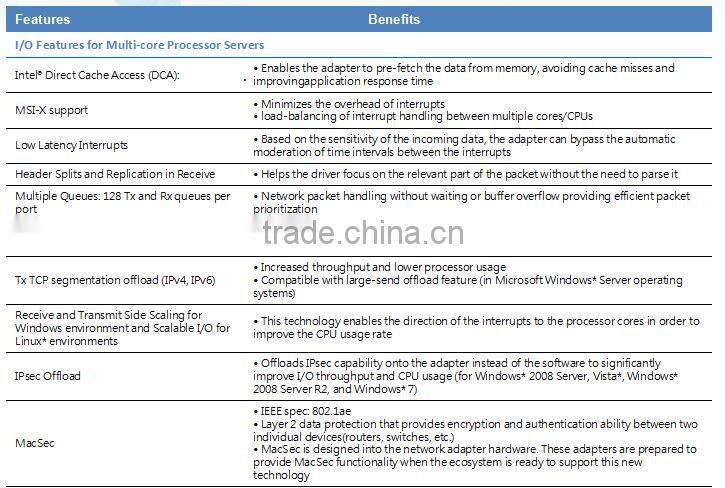

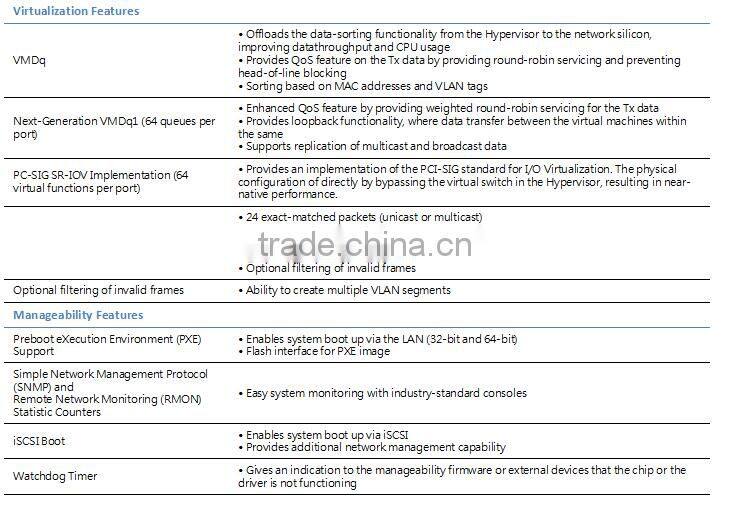

Features

Product Category

Product Category

Factory Production

Production & Testing

Raw Materials & Finished Products Warehouse

FAQ

FAQ

1. How can I contact you?

Here is our contact information:

2. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, customized model for you.

3. How can I place an order?

(1) Agreement is achieved on the product price and product specifications.

(2) We make proforma invoice for your confirmation.

(3) When you agree on the proforma invoice, you make the payment.

(4) We deliver the goods after we receive your payment.

4. What are your terms of payment?

Usually, we can accept T/T, Paypal and Western Union. You can select the terms of payment which is more convenient for you.

5. What about the lead time?

Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.

6. How about the shipping?

Usually, we will deliver the goods via International Express like Fedex, DHL, TNT, UPS and so on. Door to door delivery service will be provided.

7. What are the advantages of your products?

A. Good quality and competitive prices.

B. Strict quality control during production process.

C. Professional operations in processes of production, sales, assembling, packaging and shipping.

D. Good aftersale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
