Product Details
Place of Origin | Guangdong, China | Brand Name | AST | |
Model Number | ASKB-03 |
Product Description

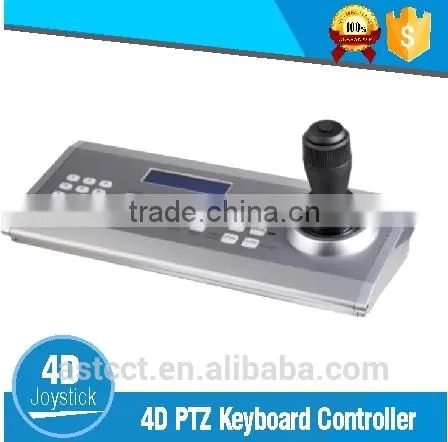

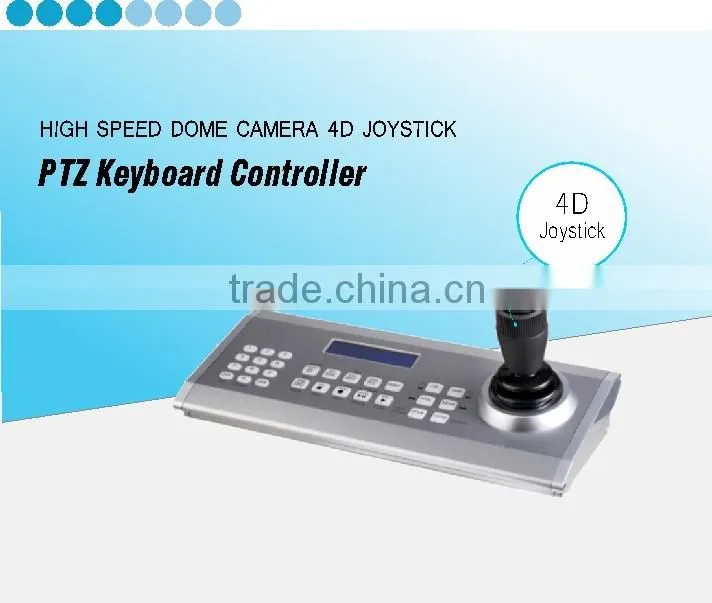

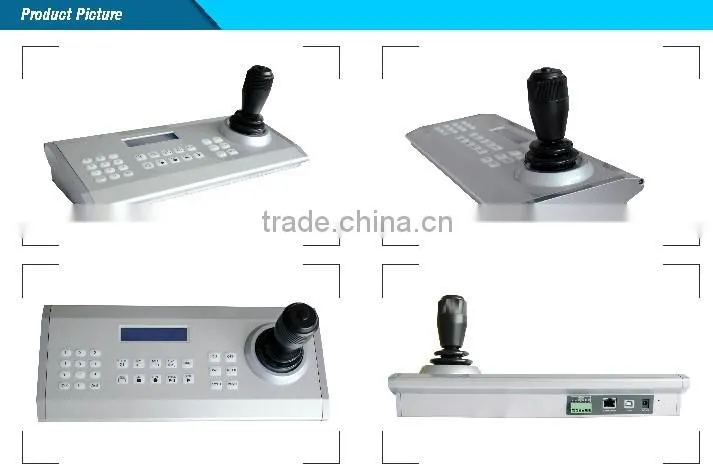

RS232 RS485 3D Analog USB PTZ Camera Keyboard Controller
Product Overview:

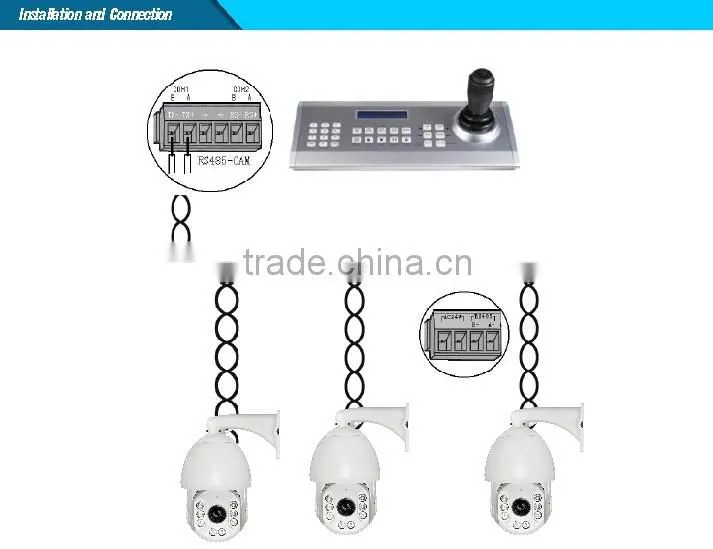

The keyboard is a product for professional use in security systems. The keyboard is applied to remotely control digital multiplexers, DVR,NVR,speed dome cameras and IP Camera. It’s ergonomic construction guarantees comfortable operation for security personnel.
1. Protocol:PELCOD/PELCO-P/Panasonic/Samsung/AD(TYCO)/DH/VISCA
2.Bute rate:1200/2400/4800/9600/19200 ;
3. USB 2.0 HID protocol for IP Camera
Main Features:
1..The keyboard can be applied to control CCTV systems, speed dome cameras, DVR,NVR,IP camera , and personal computer monitoring terminal devices.

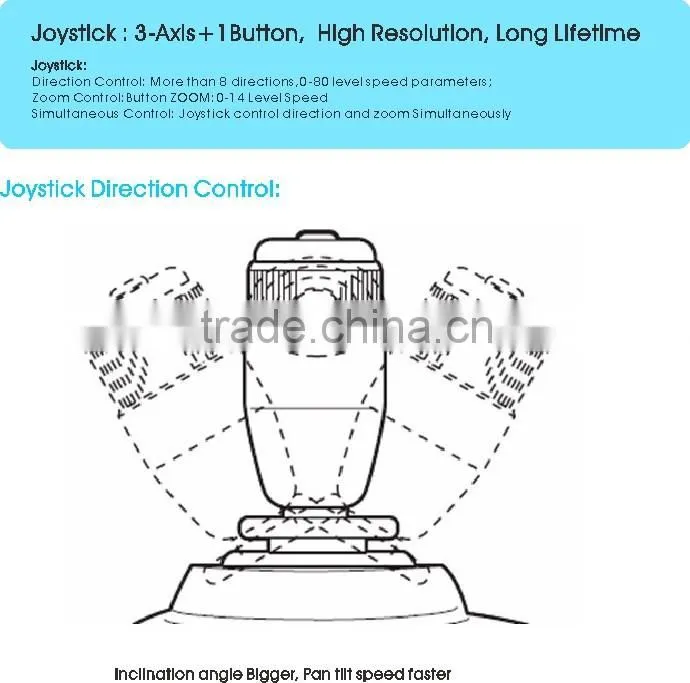

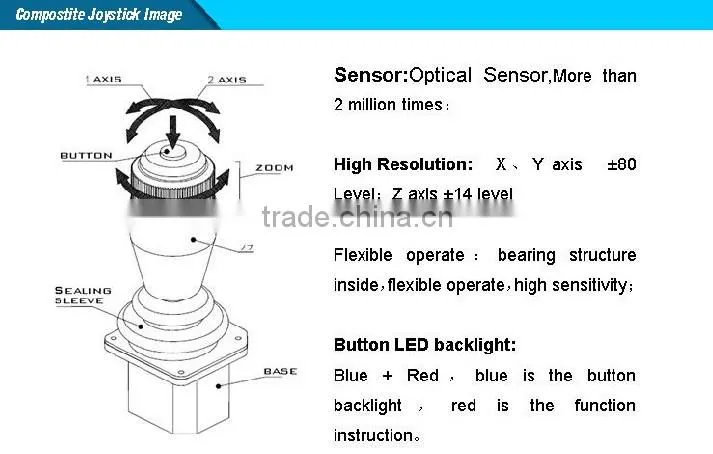

2.. Joystick: 3-axis+1button;
3.LCD: two lines of 20 characters, backlight.
4. 28 keys, silicon rubber + keystroke, one million times long lifetime, backlight;
Form parameters | |
Mode | ASKB03 |
Item | Technical parameters |
Joystick | 3 axis + 1 buttons, optical sensors, high precision |
Buttons | 28 ALPS keys, double color backlighting, brightness is adjustable |
Display | LCD, 2 rows, 20 characters, blue backlight |
Material | Shell: aluminium alloy; Joystick: aluminium alloy+ABS |

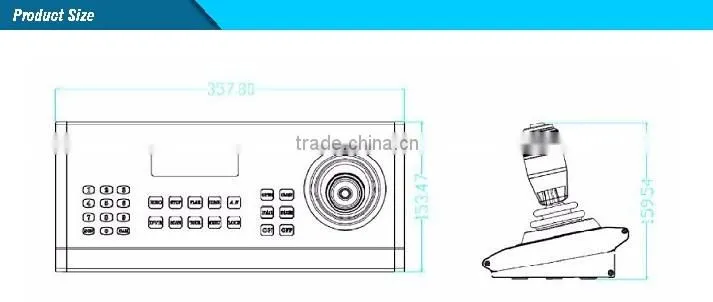

Dimensions | 355(L) × 150(W) ×155(H)mm |
Weight | 1.47kg (w/o Power supply) |
1.89 kg (with Power supply) | |
2.4kg (prepared for shipping) | |
Operating Environment | -10°C - 70°C; 0 - 90% (no condensation) |
Power Supply | DC12V/1A |
Power consumption | 2.7 W (not loaded line) |

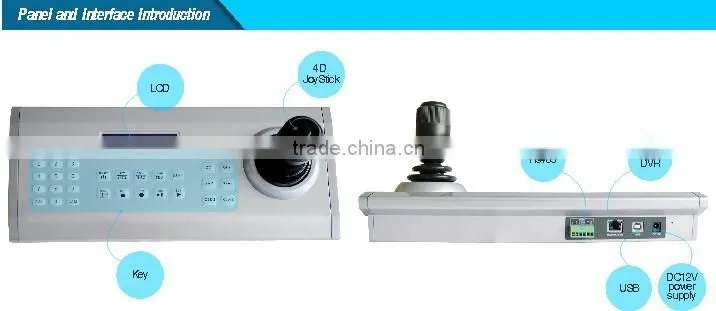

Interfaces | 1×RJ-45, 1×RS485,1×RS232,1×USB-D |
Others Function | Support multiple brand camera agreement |
Baud rate: 1200, 2400, 4800, 2400, 4800kbps | |
Support auxiliary control functions: lights, windshield wipers | |

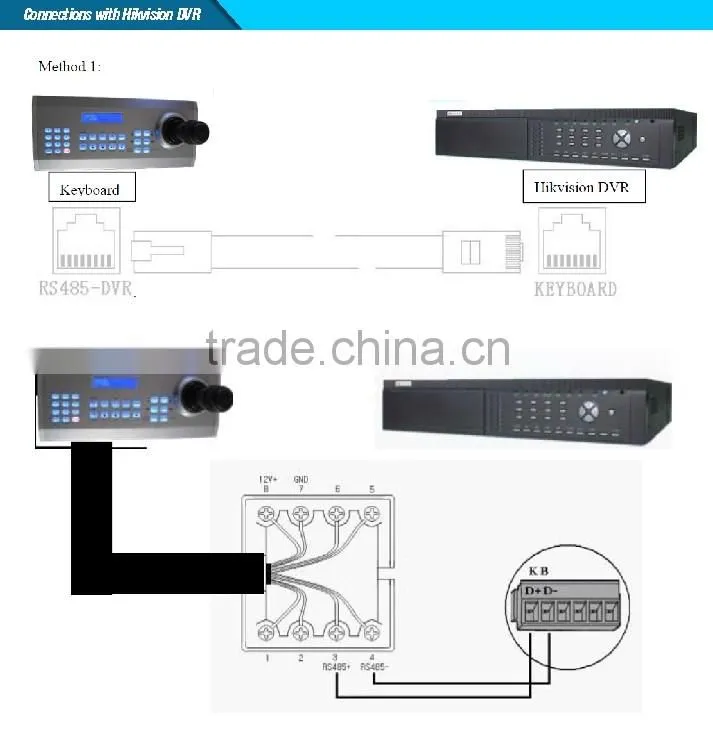

Support 255 DVR/DVR control | |
Support the camera image parameter Settings in detail(PelcoD-Usb protocol only) | |
Support USB joystick (game controller) control function, support for Microsoft DirectX |

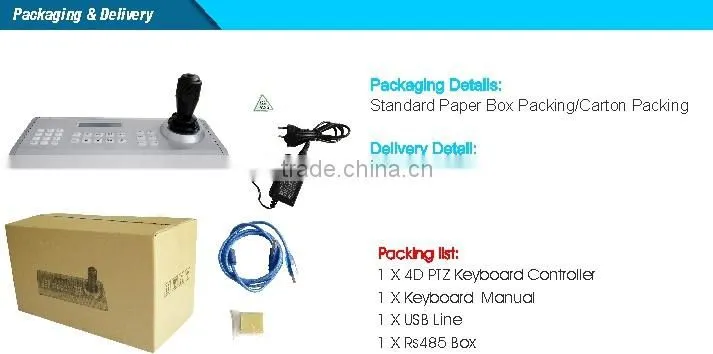

Packading Details: Standard Paper Box Packing / Carton Packing
Delivery Detail: 3-7 working days after payment comfirmed
Anxinshi Technology Co.,Ltd is a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
MORE INFORMMATION , PLEASE CLICK HERE: AST THANK YOU!
