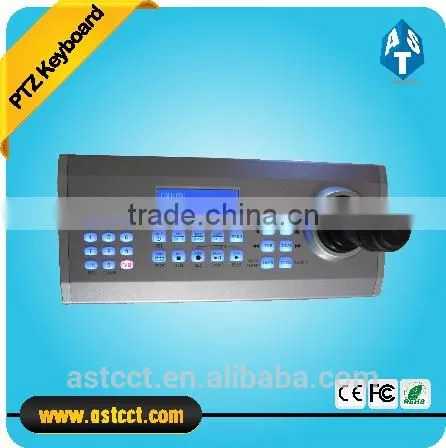

Help CenterProfessinal 4D Joystic Control Video Conference Camera VISCA Keyboard Controller PTZ Dome Camera
Related Products
-
PTZ Camera 3D Keyboard Controller High Performance CCTV Security CameraUS$ 49 - 78MOQ: 1 Piece -
Onvif 4D Joystick PTZ IP Network Camera Keyboard Controller LCD Display Support Dahua ip CameraUS$ 212 - 240MOQ: 1 Piece
-
8" TFT-LCD 3D PTZ Keyboard Controller Dispaly With Big Scren Monitor for Speed Dome Quality ChoiceUS$ 165 - 189MOQ: 1 Piece
-
LCD Display 3D RS485 PTZ Keyboard Controller for PTZ Camera Joystick For SecurityUS$ 72 - 99MOQ: 1 Piece
-
3D Mini Keyboard Controller CCTV Camera JoystickUS$ 55 - 86MOQ: 1 Piece

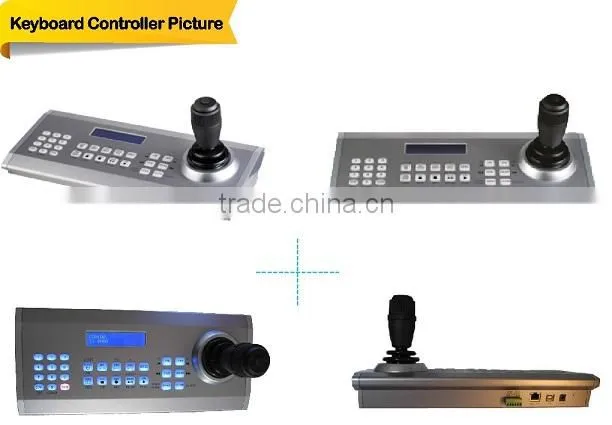

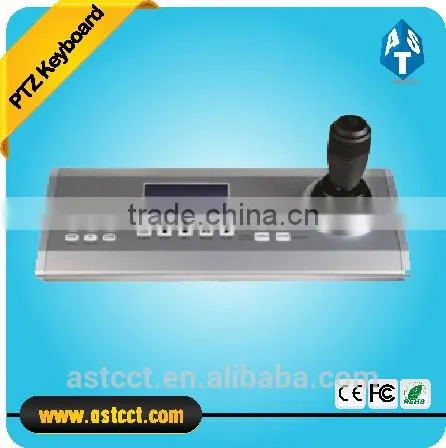

Product Overview:
The keyboard is a product for professional use in security systems. The keyboard is applied to remotely control digital multiplexers, DVR,NVR,speed dome cameras and IP Camera. It’s ergonomic construction guarantees comfortable operation for security personnel.
Main Features:
1..The keyboard can be applied to control CCTV systems, speed dome cameras, DVR,NVR,IP camera , and personal computer monitoring terminal devices.
2.. Joystick: 3-axis+1button;
3.LCD: two lines of 20 characters, backlight.
4. 28 keys, silicon rubber + keystroke, one million times long lifetime, backlight;
| Mode | ASKB03 |
| Item | Technical parameters |

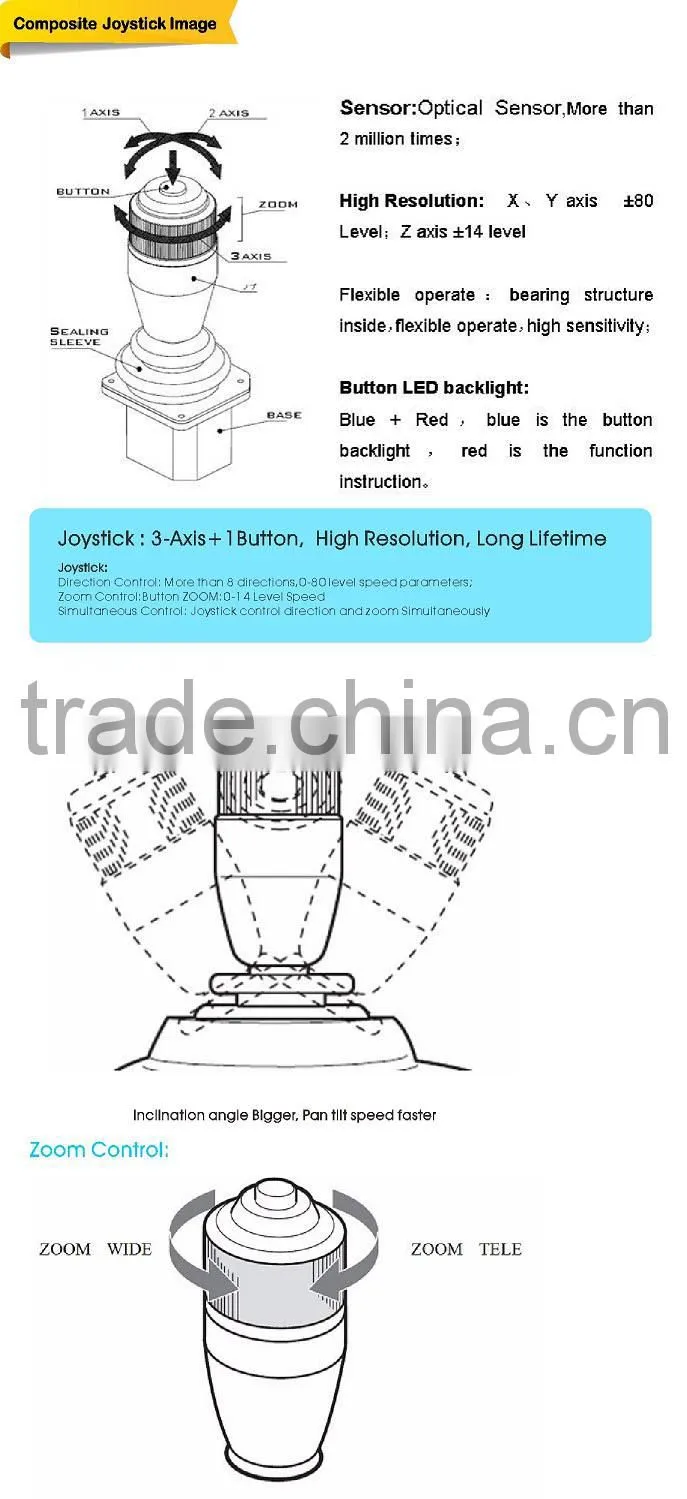

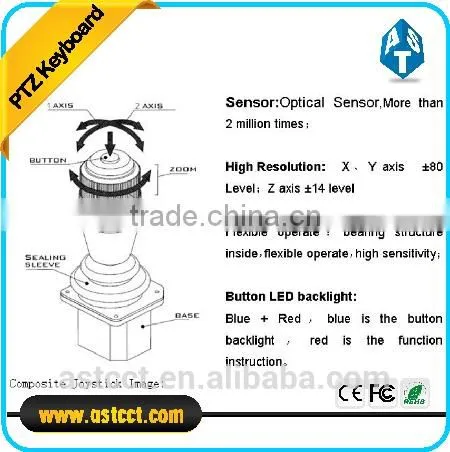

| Joystick | 3 axis + 1 buttons, optical sensors, high precision |
| Buttons | 28 ALPS keys, double color backlighting, brightness is adjustable |
| Display | LCD, 2 rows, 20 characters, blue backlight |
| Material | Shell: aluminium alloy; Joystick: aluminium alloy+ABS |

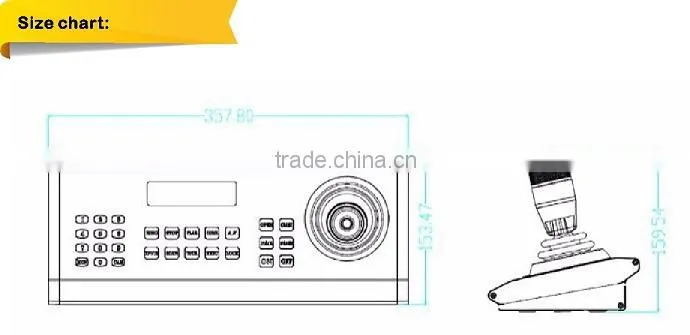

| Dimensions | 355(L) × 150(W) ×155(H)mm |
| Weight | 1.47kg (w/o Power supply) |
| 1.89 kg (with Power supply) | |
| 2.4kg (prepared for shipping) | |
| Operating Environment | -10°C - 70°C; 0 - 90% (no condensation) |
| Power Supply | DC12V/1A |
| Power consumption | 2.7 W (not loaded line) |

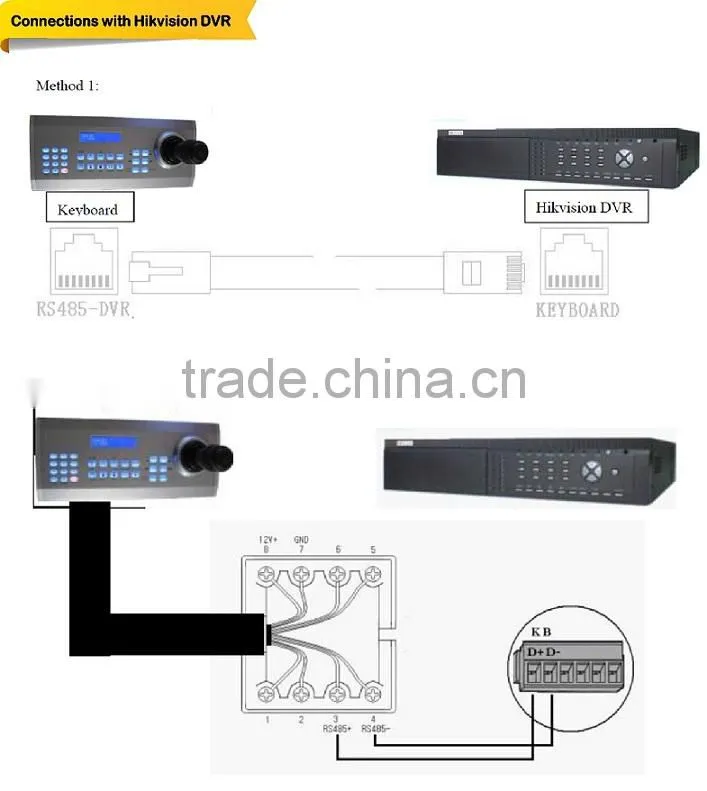

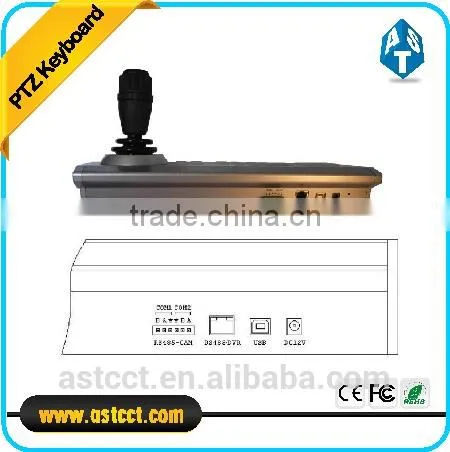

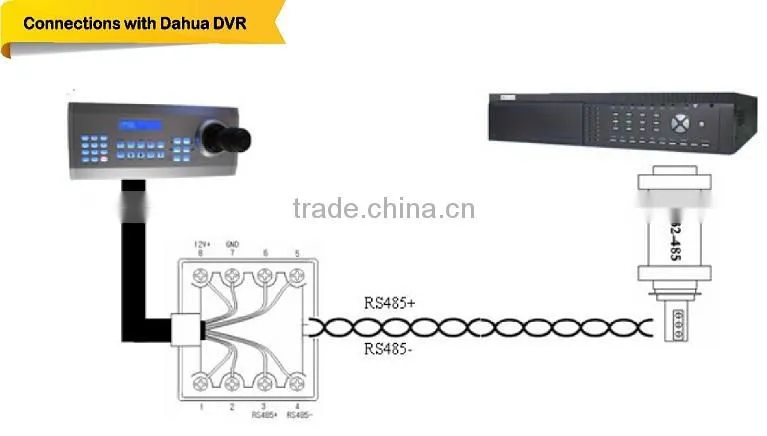

| Interfaces | 1×RJ-45, 1×RS485,1×RS232,1×USB-D |
| Others Function | Support multiple brand camera agreement |
| Baud rate: 1200, 2400, 4800, 2400, 4800kbps | |
| Support auxiliary control functions: lights, windshield wipers | |
| Support 255 DVR/DVR control | |
| Support the camera image parameter Settings in detail(PelcoD-Usb protocol only) | |
| Support USB joystick (game controller) control function, support for Microsoft DirectX |
